C312: 1 pF phenolic (Brn-Blk-
Wht).
"
l,V' C317: 3.3 pF ceramic.
(..t C319: .0033 JLF cer amic .
NOTE : When you install a tantalum
capacitor, match the positive (+)mark
or color dot on the capacitor with the
positive ( +)
mark on the circuit board.
C311 : 1.5 !LF tantalum .
) C310: 1.5
ILF tantalum .
) C314: 500
pF ceramic.
] C315: 500 pF ceramic.
) Solder
the leads to the foil and cut
off the excess lead lengths .
Page 55

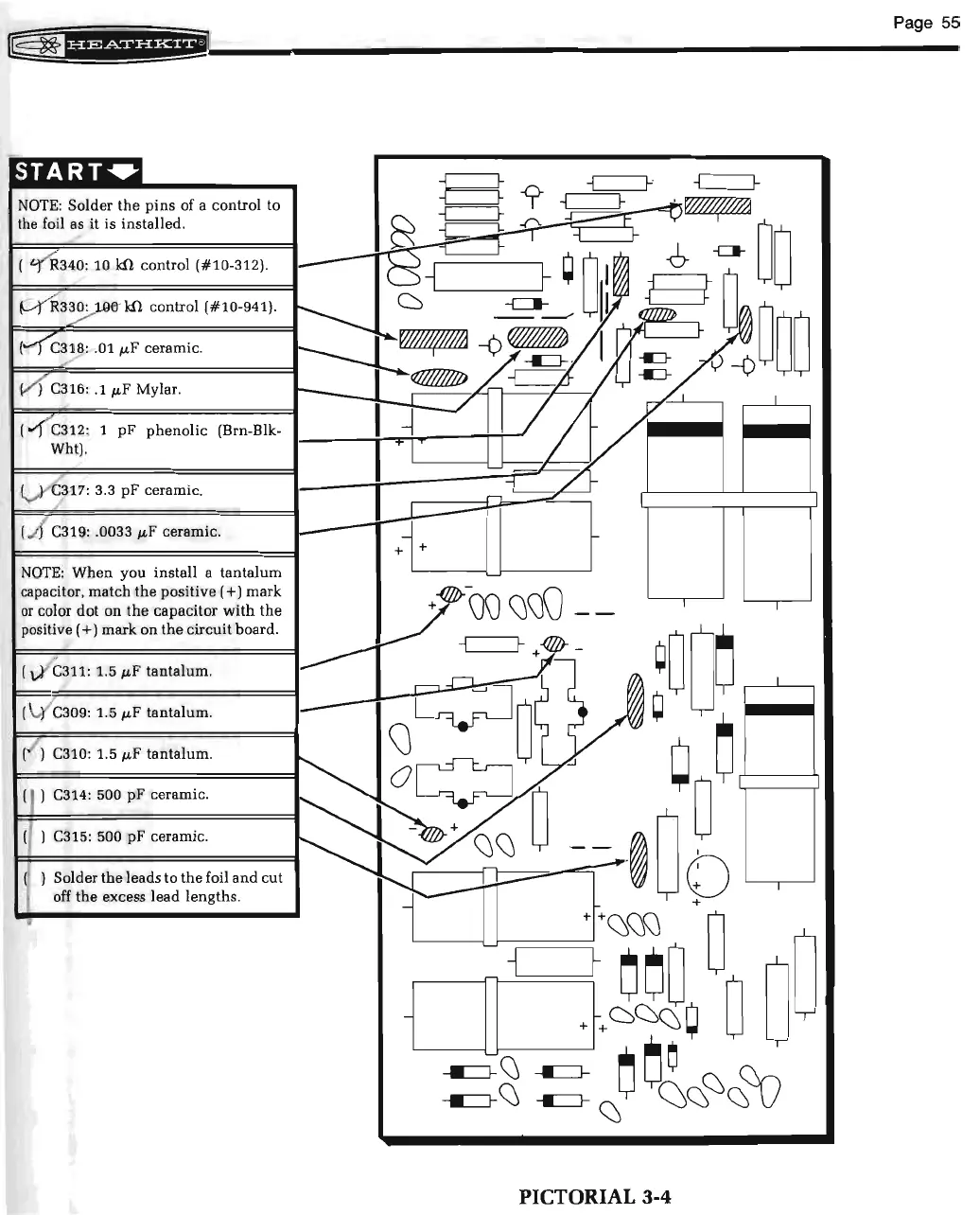

PICTORIAL 3-4
