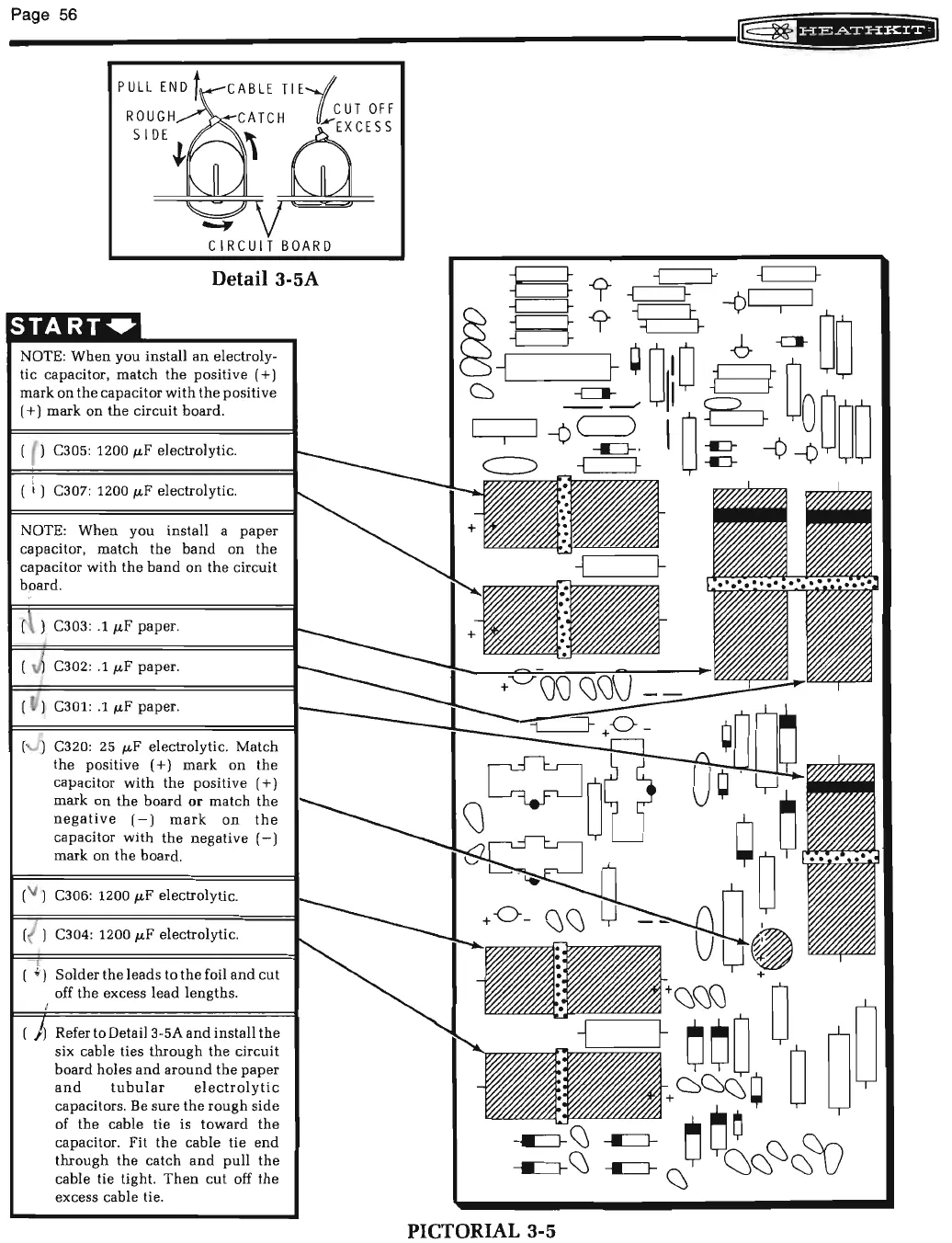

Page 56
ROUGH CATCH ff.._.CUT OFF
PULL~END t CABLE TIE-/
SIDE~ ~ &SS
'i?V=
CIRCUIT BOARD
Detail 3-5A
NOTE: When you install an electroly-
tic capacitor,
match the positive ( +]
mark on the capacitor with the positive
( +) mark on the circuit board.
C305: 1200
JLF electrolytic.
C307: 1200
JLF electrolytic.
NOTE:
When you install a paper
capacitor , match the band on the
capacitor with the band on the circuit
C303: .1 JLF paper.
C302: .1
JL F paper .
C301:
.1 JLF paper.
C320: 25
JLF electrolytic. Match
the positive ( +) mark on the
capacitor with the positive ( +)
mark on the board or match the
negative (-) mark on the
capacitor with the negative (-)
mark on the board.
( \1 ) C306: 1200 JLF electrolytic.
C304: 1200
JLF electrolytic.
Solder
the leads to the foil and cut
off the excess lead lengths .
Refer to Detail3-5A
and install the
six cable ties through the circuit
board holes and around the paper
and tubular electrolytic
capacitors. Be sure the rough side
of the cable tie is toward the
capacitor. Fit the cable tie end
through the catch and pull the
cable tie tight. Then cut off the
excess cable tie.
PICTORIAL 3-5
