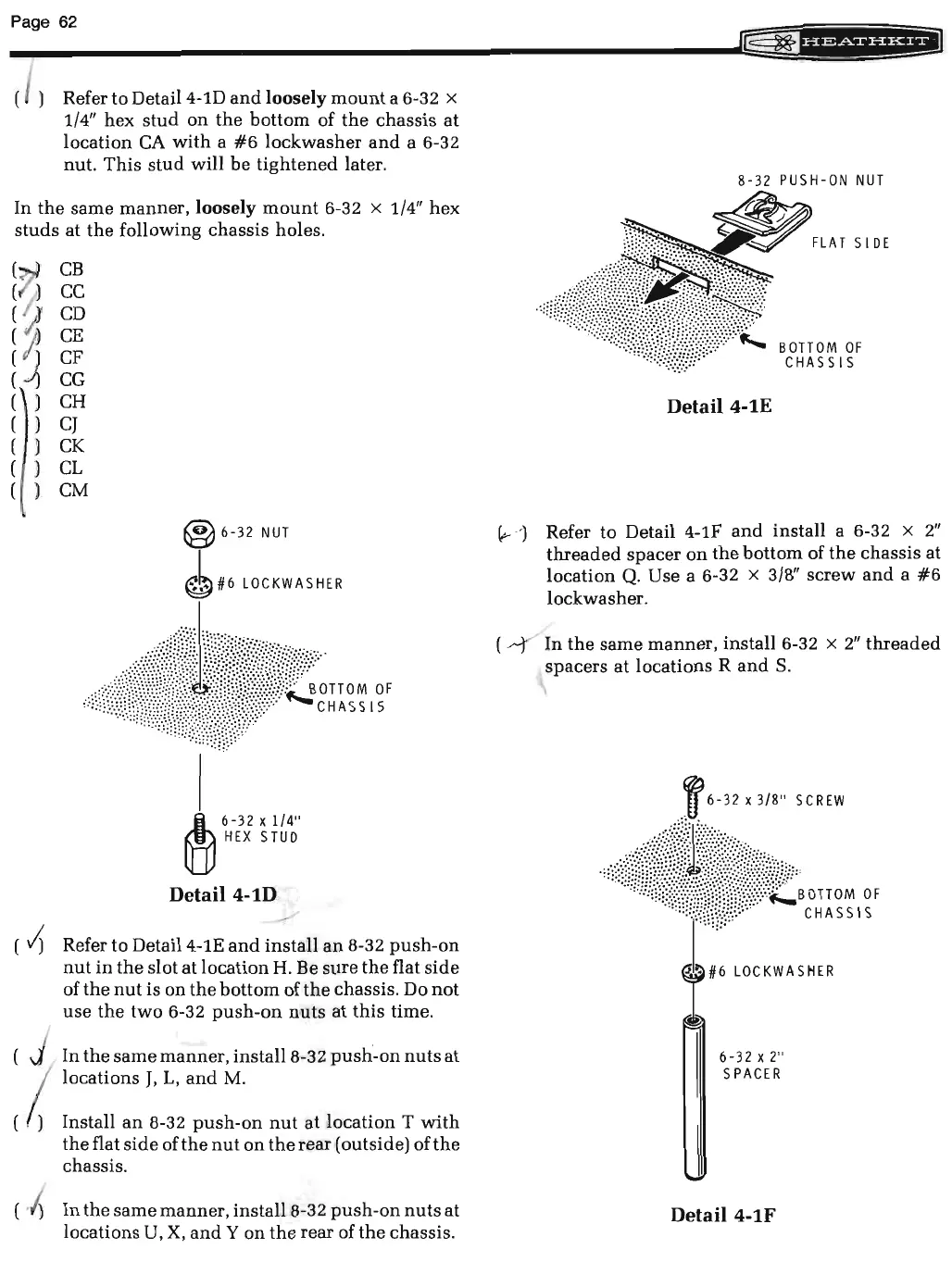

Page 62
( ) Refer to Detail4-1D and loosely mount a 6-3 2 x
1/4"
hex stud on the bottom of the chassis at
location CA with a #6 lockwasher and a 6-32
nut.
This stud will be tightened later.
In the same manner, loosely mount 6-32 x 1/4" hex
studs at the following chassis holes .
(
( /)
( I
C ;Jl
~ ~
( )
( )
( )
(
)
( )
CB
cc
CD
CE
CF
CG
CH
CJ
CK
CL
CM
@ 6-32 NUT
~#6 LOCKWASHER
tlh 6-32 X 1/4"
llJI HEX STUD
Detail4-1D
( vJ Refer to Detail4-1E and install an 8-32 push-on
nut in the slot at location H. Be sure the flat side
of the nut is on the bottom of the chassis. Do not
use the two 6-32 push-on nuts at this time.
(
In the same manner, install8-32 push-on nuts at
v/ locations J, L, and M.
( / ) Install an 8-32 push-on nut at location T with
the flat side of the nut on the rear (outside) of the
chassis.
( · )
In the same manner, install8-32 push-on nuts at
locations U, X, andY on the rear of the chassis.
Detail 4-tE
K Refer to Detail 4-1F and install a 6-32 x 2"
threaded spacer on the bottom of the chassis at
location Q. Use a 6-32 x 3/8" screw and a #6
lockwasher.
In the same manner, install6-32 x 2" threaded
spacers at locations Rand S .
. f 6-32 x 3/8" SCREW
" ' ~iiH~,~-~~~i~~; ~:;~~I ~f
J';~LOCKWASHER
6-32 X 2"
SPACER
Detail4-1F
