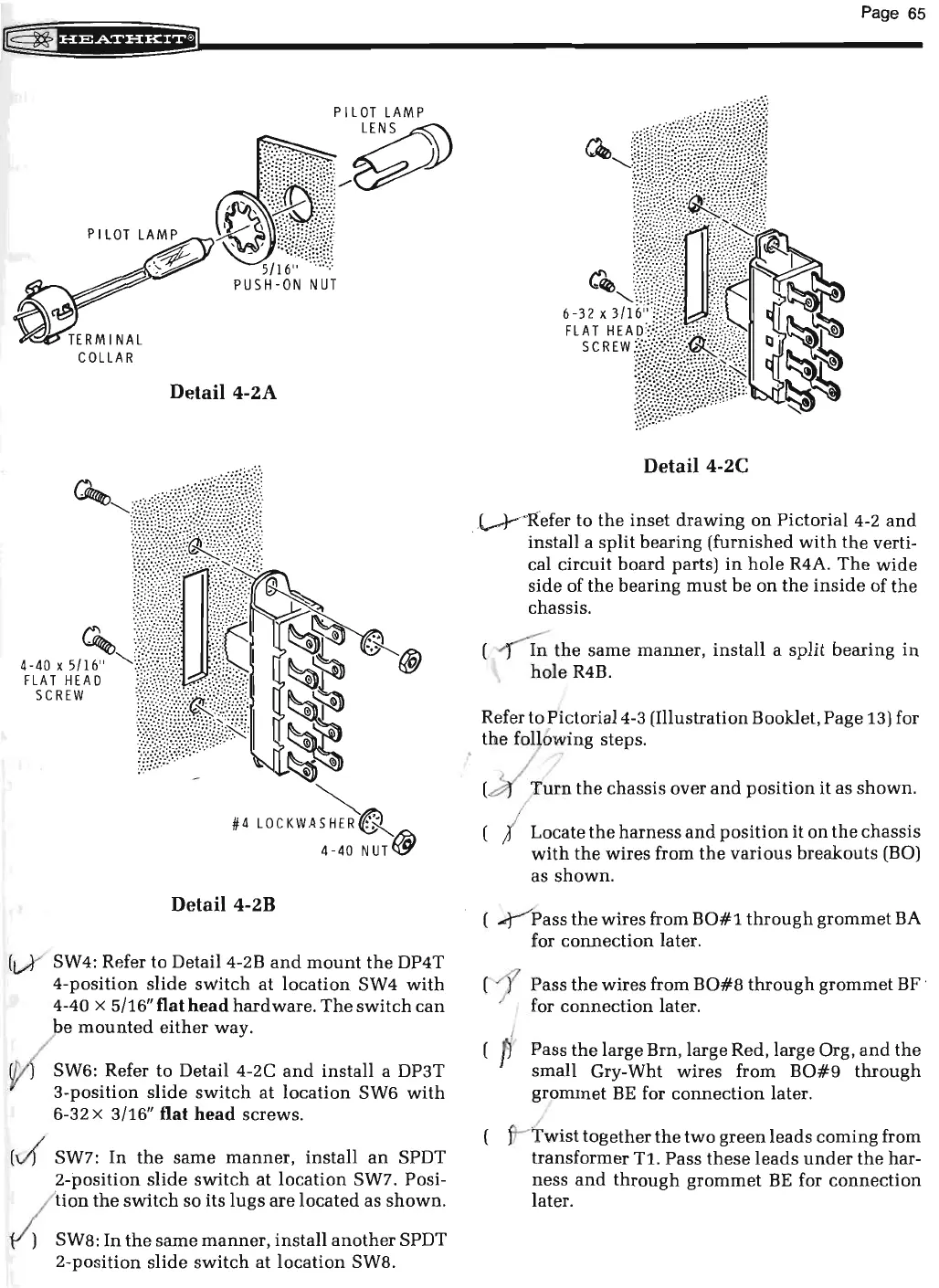

Detail 4-2A
#4 LOCKWA~
4- 40 NUT~
Detail 4-2B
((.)""' SW4: Refer to Detail4-2B and mount the DP4T
4-position slide switch at location SW4 with
4-40 x 5/16" flat head hard ware . The switch can
be mounted either way.
~ SW6 ' Refe, to Detail 4~2C and imtall a DP3T
3-position
slide switch at location SW6 with
6-32 X 3/16" flat head screws.
( v{ SW7: In the same manner, install an SPDT
2-position
slide switch at location SW7. Posi-
tion the switch so its lugs are located as shown .
SWB: In the same manner, install another SPDT
2-position
slide switch at location SWB .
Page 65
Detail 4-2C
efer to the inset drawing on Pictorial 4-2 and
install a split bearing (furnished with the verti-
cal circuit
board parts) in hole R4A. The wide
side of the bearing must be on the inside of the
chassis.
( ~ the same manner, install a split bearing in
hole R4B .
Refer to Pictorial4-3 (Illustration Booklet, Page 13) for
the foll cS wing steps.
l
T urn the chassis over and position it as shown.
Locate the harness and position it on the chassis
with the wires from the various breakouts (BO)
as shown .
(
...r-i'ass the wires from B0#1 through grommet BA
for
connection later.
) Pass
the wires from BO#B through grommet BF ·
for
connection later.
p Pass the large Brn, large Red, large Org, and the
small Gry-Wht wires from B0#9 through
grommet BE for connection later.
wist together the two green leads coming from
transformer T1. Pass
these leads under the har-
ness and through grommet BE for connection
later.
