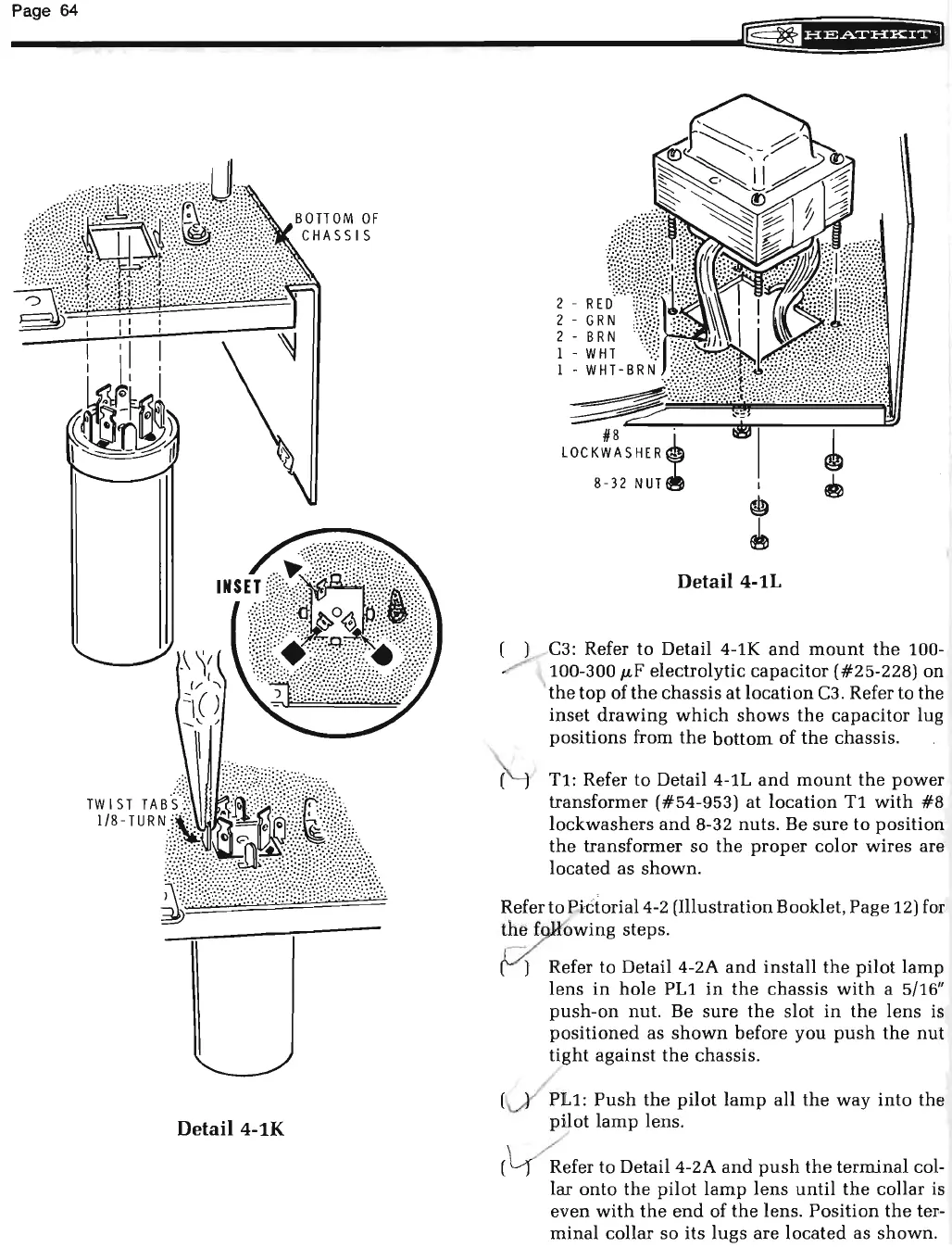

Detail 4-lK
Detail 4-lL
( ) C3: Refer to Detail 4-1K and mount the 100-
100-300
JLF electrolytic capacitor (#25-228) on
the top of the chassis at location C3. Refer to the
inset drawing which shows the capacitor lug
positions from the bottom of the chassis.
( ) T1: Refer to Detail 4-11
and mount the power
transformer ( #54-953) at location T1 with #8
lockwashers and 8-32 nuts. Be sure to position
the transformer so the proper color wires are
located as shown.
RefertoP "1 orial4-2 (Illustration Booklet, Page 12) for
the f owing steps.
Refer
to Detail 4-2A and install the pilot lamp
lens in hole PL1 in the chassis with a 5/16"
push-on nut. Be sure the slot in the lens is
positioned as shown before you push the nut
tight against the chassis.
(v } /p Ll: Push the pilot lamp all the way into the
pilot lamp lens.
Refer to Detail 4-2A
and push the terminal col-
lar onto the pilot lamp lens until the collar is
even with the end of the lens. Position the ter-
minal collar so its lugs are located as shown.
