Heathkit IO-4205 - Page 71

Page 69

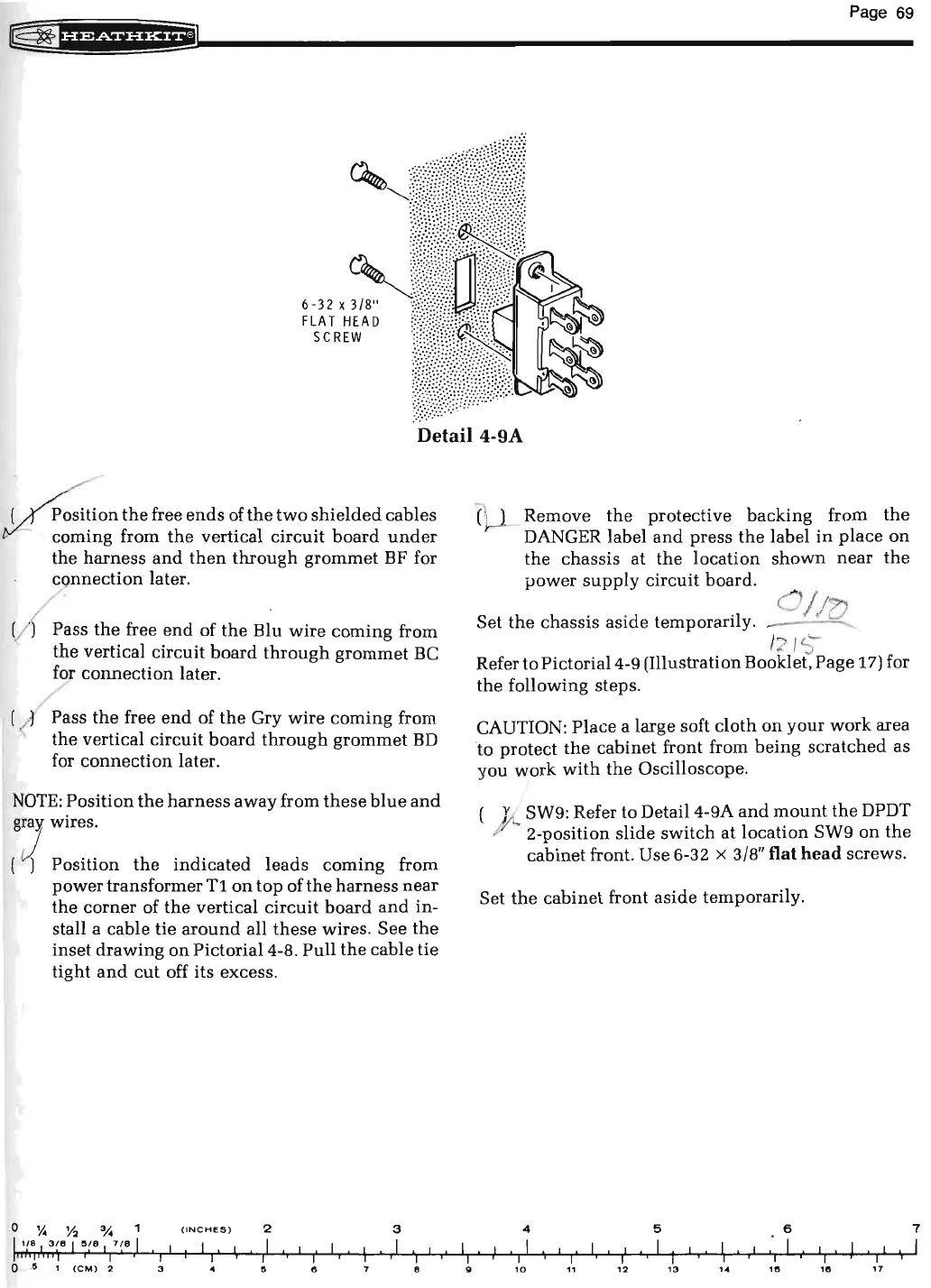

Detail 4-9A
. / on the free ends of the two shielded cables
~ =~:!~g from the vertical circuit board under
the harness and then through grommet BF for
connection later.
~ ass the free end of the Blu wire coming &om
the vertical circuit board through grommet BC
/ r connection later.
/ Pass
the free end of the Gry wire coming from
the vertical circuit board through grommet BD
for connection later.
NOTE: Position the harness away from these blue and
gJ wires.
( )
Position the indicated leads coming from
power transformer T1 on top of the harness near
the corner of the vertical circuit board and in-
stall a cable
tie around all these wires. See the
inset drawing on Pictorial4-8 . Pull the cable tie
tight and cut off its excess.
0
~
%
"!.
1 (INCHES)
2
3
11{e I a ~ e
I
~:e I
7 / 8
I
I I
I I
I I
I
I
I
I
I
I I
I
I I
rilijiiil) I
I
I
I
I
I
I
I
I
I
0
..
1
(CM)
2
3
•
"
•
I
I
I
I
"
Remove the protective backing from the
DANGER label and press the label in place on
the chassis at the location shown near the
power supply circuit board .
Set
the chassis aside temporarily.
12/S""
Refer to Pictorial4-9 (Illustration Booklet, Page 17} for
the following steps.
CAUTION: Place a large soft
cloth on your work area
'to protect
the cabinet front from being scratched as
you work with the Oscilloscope.
SW9: Refer to
Detail4-9A and mount the DPDT
2-position
slide switch at location SW9 on the
cabinet front. Use 6-32 x 3/8" flat head screws.
Set the cabinet front aside temporarily.
4
5
6
.
I I I I I I
I
I
I I I I I I I I
I
I
I
I
I
I I I
I
I
I
I
I
I
I
I I
10
,
12 13 1.
"'
1<5
17
7
I
