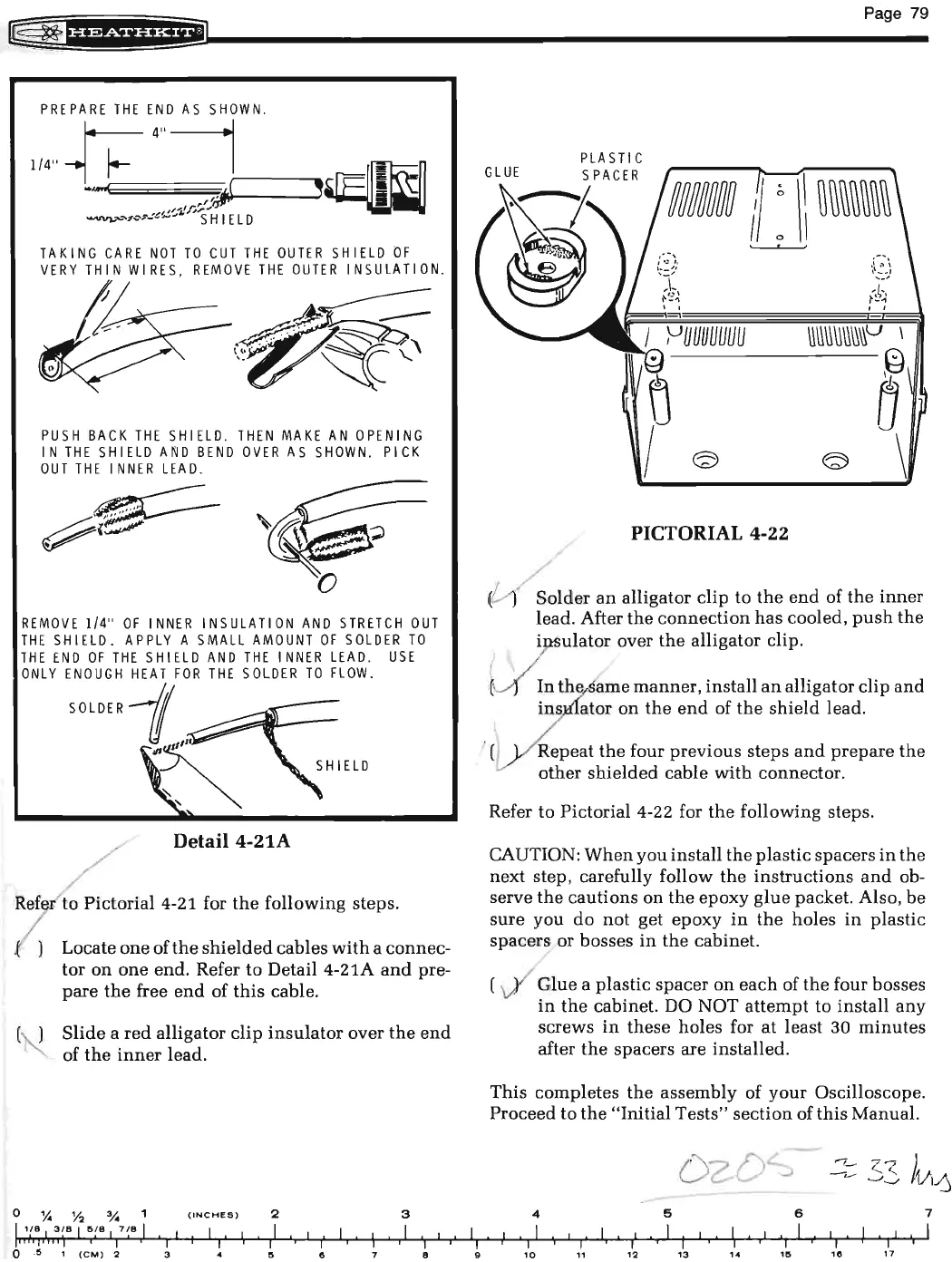

Heathkit IO-4205 - Page 81

PUSH BACK THE SHIELD . THEN MAKE AN OPENING
IN
THE SHIELD AKJD BEND OVER AS SHOWN . PICK
OUT THE INNER LEAD.
REMOVE 1/4" OF INNER INSULATION AND STRETCH OUT
THE SHIELD . APPLY A SMALL AMOUNT OF SOLDER TO
THE END OF THE SHIELD AND THE INNER LEAD . USE
ONLY ENOUGH HEAT FOR THE SOLDER TO FLOW.
SOLDER-(/
-~
/ Detail 4-21A
Refer to Pictorial 4-21 for the following steps .
Locate one of
the shielded cables with a connec-
tor on one end. Refer to Detail 4-21A and pre-
pare the free end of this cable.
Slide a red alligator clip insulator over the end
of the inner lead.
Q .5 1 (C M ) 2
(INCHES )
• I I I I I'
3
II II I
5
"
3
I I I I I I I
I I I I
8 9
Page 79
PICTORIAL 4-22
Repeat the four previous steps and prepare the
other shielded cable with connector .
Refer to Pictorial 4-22 for
the following steps.
CAUTION:
When you install the plastic spacers in the
next step, carefully follow the instructions and ob-
serve
the cautions on the epoxy glue packet. Also, be
sure you do not get epoxy in the holes in plastic
spacers or bosses in the cabinet.
Glue a
plastic spacer on each of the four bosses
in the cabinet . DO NOT attempt to install any
screws in these holes for at least 30 minutes
after the spacers are installed .
This completes the assembly of your Oscilloscope.
Proceed
to the "Initial Tests" section of this Manual.
