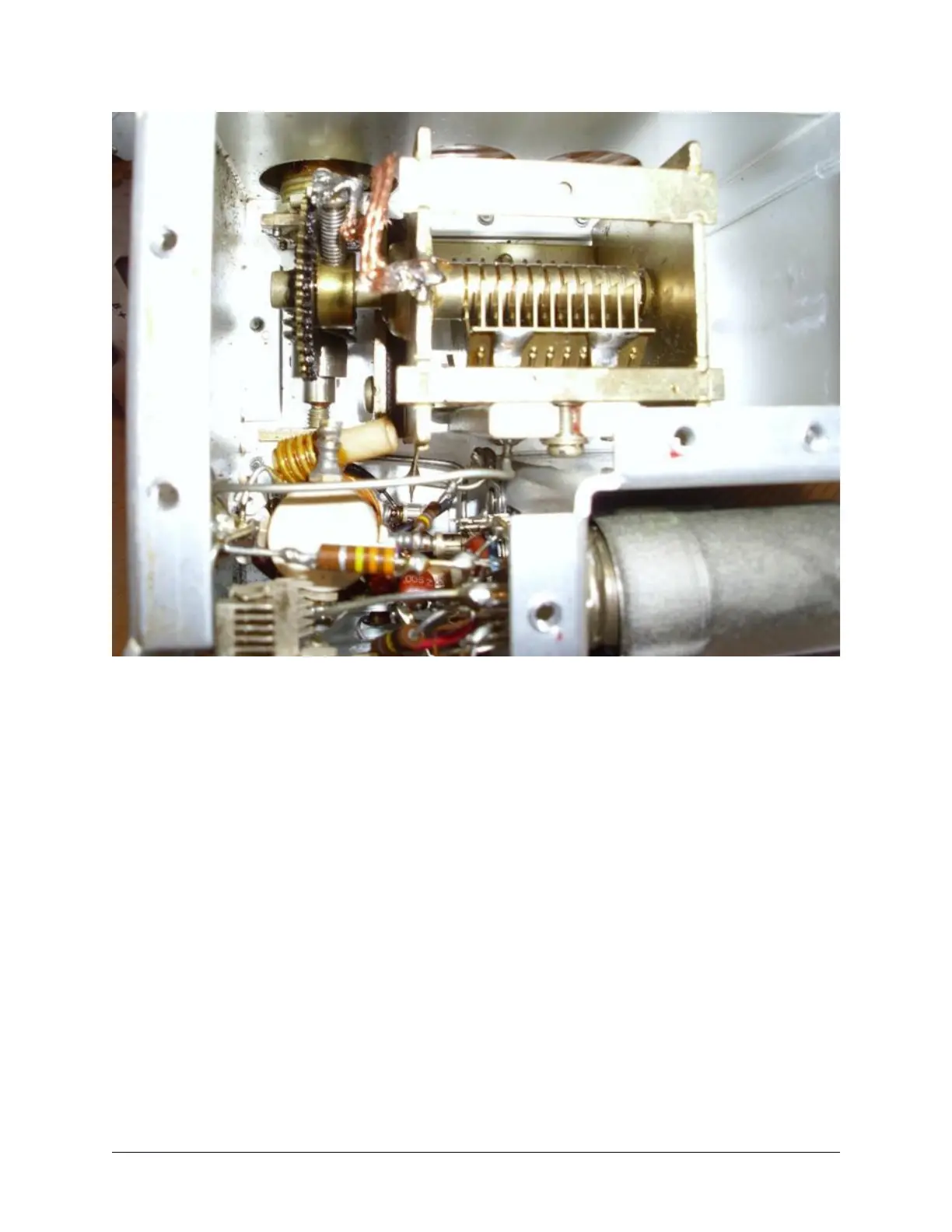

Figure 28. LMO With Added Ground Braid (Example 2)

Again, the braid can be seen in the upper left-hand corner. This is the version of the

LMO with the smaller gear, the Heath part number 110-40.

Heathkit Linear Master Oscillators (LMOs) Page 128
