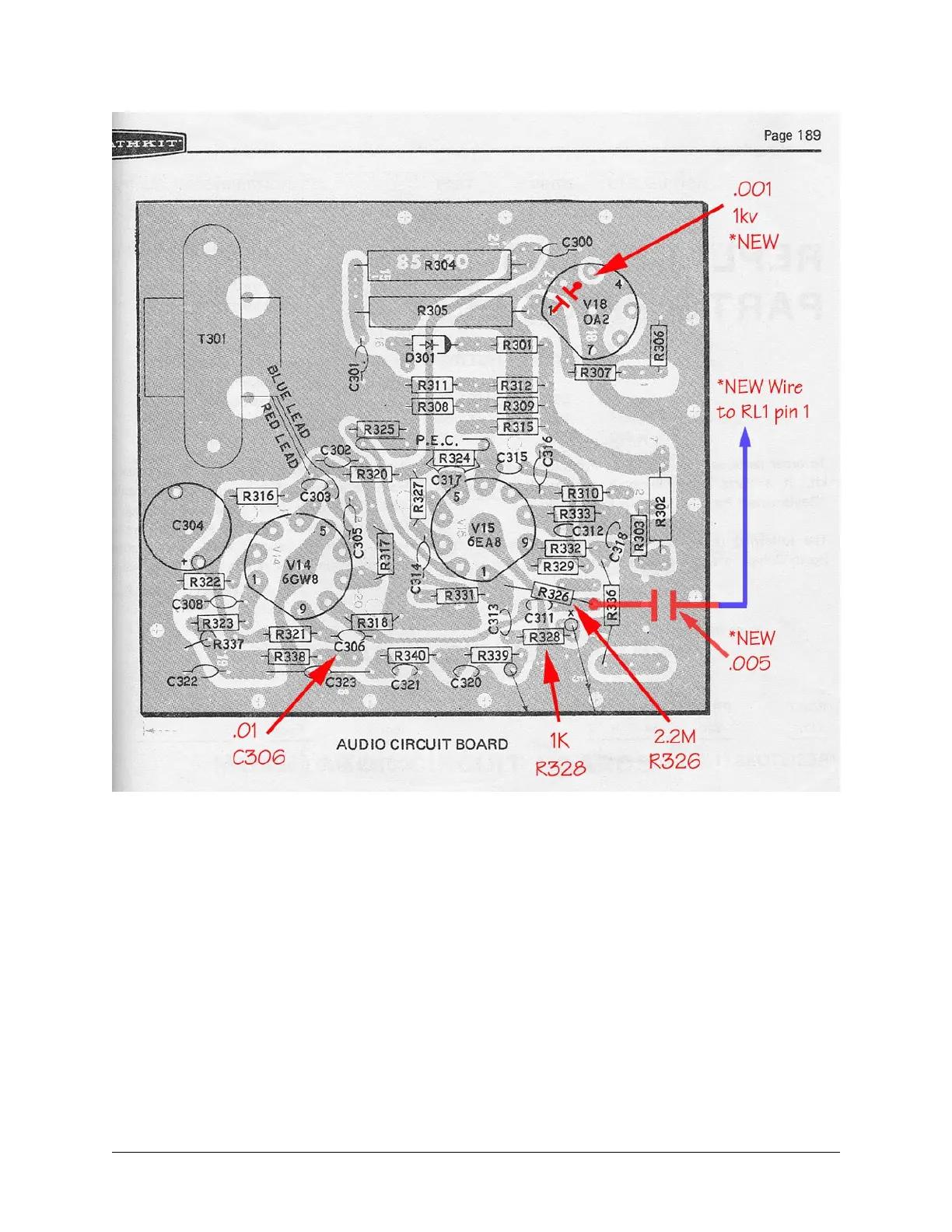

Figure 13. Audio Circuit Board Modifications

Now during receive, the sidetone will be bypassed to ground by the normally closed

contact on RL1. During transmit, RL1 opens and the sidetone works normally.

Modifications Page 87
