ad.3. SSB Filter 404-283 Circuit
This filter was purchased second hand and received with a fault in the form of a 30dB
dip in the passband. Opening up the filter revealed a broken PCB track which has
subsequently been repaired and the filter now exhibits the correct overall response.

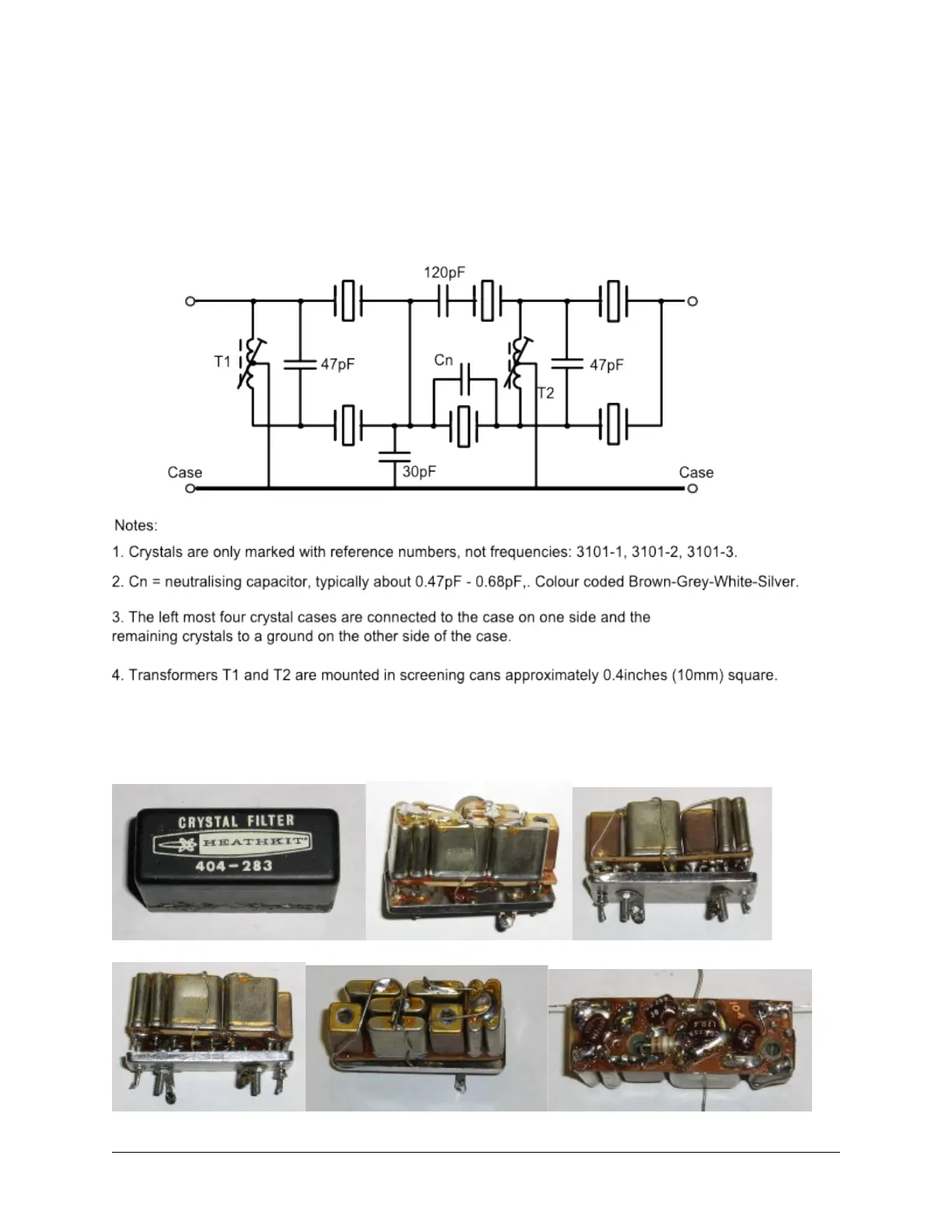

Figure 20. SSB Filter 404-283 Circuit
Heathkit Filters Page 105
