af.1.2. LMO Part Number 110-13

This LMO is used on the SB-300 receiver and SB-400 transmitter.

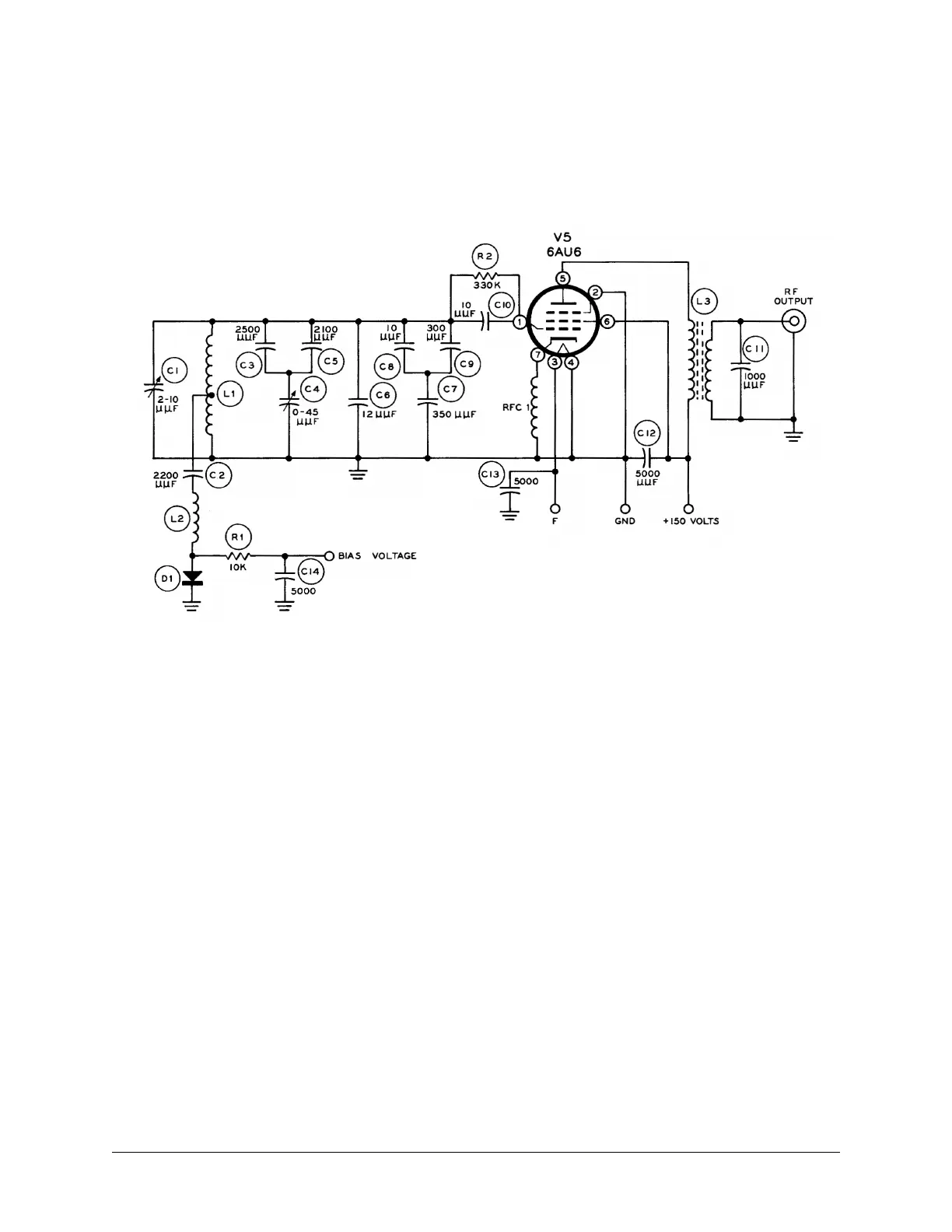

Figure 23. LMO Part Number 110-13

Heathkit Linear Master Oscillators (LMOs) Page 118
