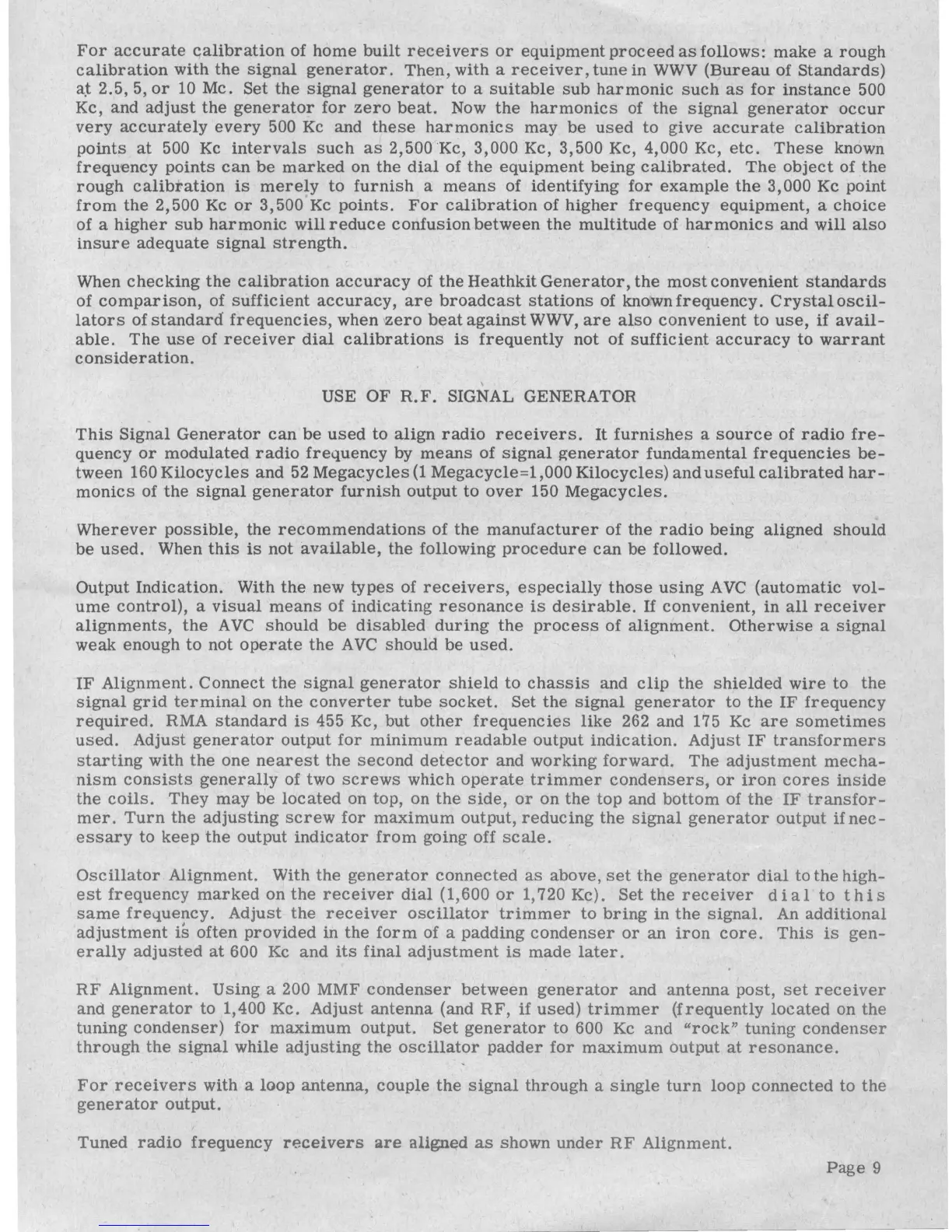

For
accurate
calibration
of
home
built
receivers
or
equipment
proceed
as
follows:
make
a
rough
calibration
with
the
signal
generator.
Then,
with a
receiver,
tune
in
WWV
(Bureau
of
Standards)
at
2. 5,
5,
or
10 Mc. Set
the
signal
generator
to a
suitable
sub
harmonic
such
as
for
instance
500
Kc, and
adjust
the
generator
for
zero
beat.
Now
the
harmonics
of
the
signal
generator
occur
very
accurately
every
500
Kc
and
these
harmonics
may
be
used
to give
accurate
calibration
points
at
500
Kc
intervals
such
as
2,500'Kc,
3,000 Kc, 3,500 Kc, 4,000 Kc,
etc.
These
known
frequency
points
can
be
marked
on
the
dial
of
the
equipment
being
calibrated.
The
object
of
the
rough
calib:t'ation
is
merely
to
furnish
a
means
of
identifying
for
example
the
3,000 Kc point
from
the
2,500 Kc
or
3,500 Kc
points.
For
calibration
of
higher
frequency
equipment,
a
choice
of a
higher
sub
harmonic
will
reduce
confusion
between
the
multitude
of
harmonics
and
will
also
insure
adequate
signal
strength.
When
checking
the
calibration
accuracy
of
the
Heathkit
Generator,
the
most
convenient
standards
of
comparison,
of
sufficient
accuracy,
are
broadcast
stations
of
knownfrequency.
Crystal
oscil-
lators
of
standard
frequencies,
when
zero
beat
against
WWV,
are
also
convenient
to
use,
if
avail-
able.
The
use
of
receiver
dial
calibrations
is
frequently
not of
sufficient
accuracy
to
warrant
consideration.
USE OF
R.F.
SIGNAL GENERATOR
This
Signal
Generator
can
be
used
to
align
radio
receivers.
It
furnishes
a
source
of
radio
fre-
quency
or
modulated
radio
frequency
by
means
of
signal
generator
fundamental
frequencies
be-
tween
160
Kilocycles
and
52
Megacycles
(1
Megacycle=l
,000
Kilocycles)
and
useful
calibrated
har-
monics
of
the
signal
generator
furnish
output
to
over
150
Megacycles.
Wherever
possible,
the
recommendations
of
the
manufacturer
of
the
radio
being
aligned
should
be
used.
When
this
is
not
available,
the
following
procedure
can
be followed.
Output
Indication.
With
the
new
types
of
receivers,
especially
those
using
AVC
(automatic
vol-
ume
control),
a
visual
means
of
indicating
resonance
is
desirable.
If
convenient,
in
all
receiver
alignments,
the
A
VC
should
be
disabled
during
the
process
of
alignment.
Otherwise
a
signal
weak
enough to
not
operate
the
A
VC
should
be
used
.
IF
Alignment.
Connect
the
signal
generator
shield
to
chassis
and
clip
the
shielded
wire
to
the
signal
grid
terminal
on
the
converter
tube
socket.
Set
the
signal
generator
to
the
IF
frequency
required.
RMA
standard
is
455 Kc, but
other
frequencies
like
262 and 175 Kc
are
sometimes
used.
Adjust
generator
output
for
minimum
readable
output
indication.
Adjust
IF
transformers
starting
with
the
one
nearest
the
second
detector
and
working
forward.
The
adjustment
mecha-
nism
consists
generally
of two
screws
which
operate
trimmer
condensers,
or
iron
cores
inside
the
coils.
They
may
be
located
on top,
on
the
side,
or
on
the
top
and
bottom
of
the
IF
transfor-
mer.
Turn
the
adjusting
screw
for
maximum
output,
reducing
the
signal
generator
output
if
nec-
essary
to
keep
the
output
indicator
from
going off
scale.
Oscillator
Alignment.
With
the
generator
connected
as
above,
set
the
generator
dial
to
the
high-
est
frequency
marked
on
the
receiver
dial
(1,600
or
1,720 Kc).
Set
the
receiver
dial
to
this
same
frequency.
Adjust
the
receiver
oscillator
trimmer
to
bring
in
the
signal.
An
additional
adjustment
is
often
provided
in
the
form
of a
padding
condenser
or
an
iron
core.
This
is
gen-
erally
adjusted
at
600 Kc
and
its
final
adjustment
is
made
later.
RF
Alignment.
Using
a 200 MMF
condenser
between
generator
and
antenna
post,
set
receiver
and
generator
to 1,400 Kc.
Adjust
antenna
(and
RF,
if
used)
trimmer
(frequently
located
on
the
tuning
condenser)
for
maximum
output.
Set
generator
to 600 Kc
and
"rock"
tuning
condenser
through
the
signal
while
adjusting
the
oscillator
padder
for
maximum
output
at
resonance.
For
receivers
with a
loop
antenna,
couple
the
signal
through
a
single
turn
loop
connected
to
the
generator
output.
Tuned
radio
frequency
receivers
are
aligned
as
shown
under
RF
Alignment.
Page
9
