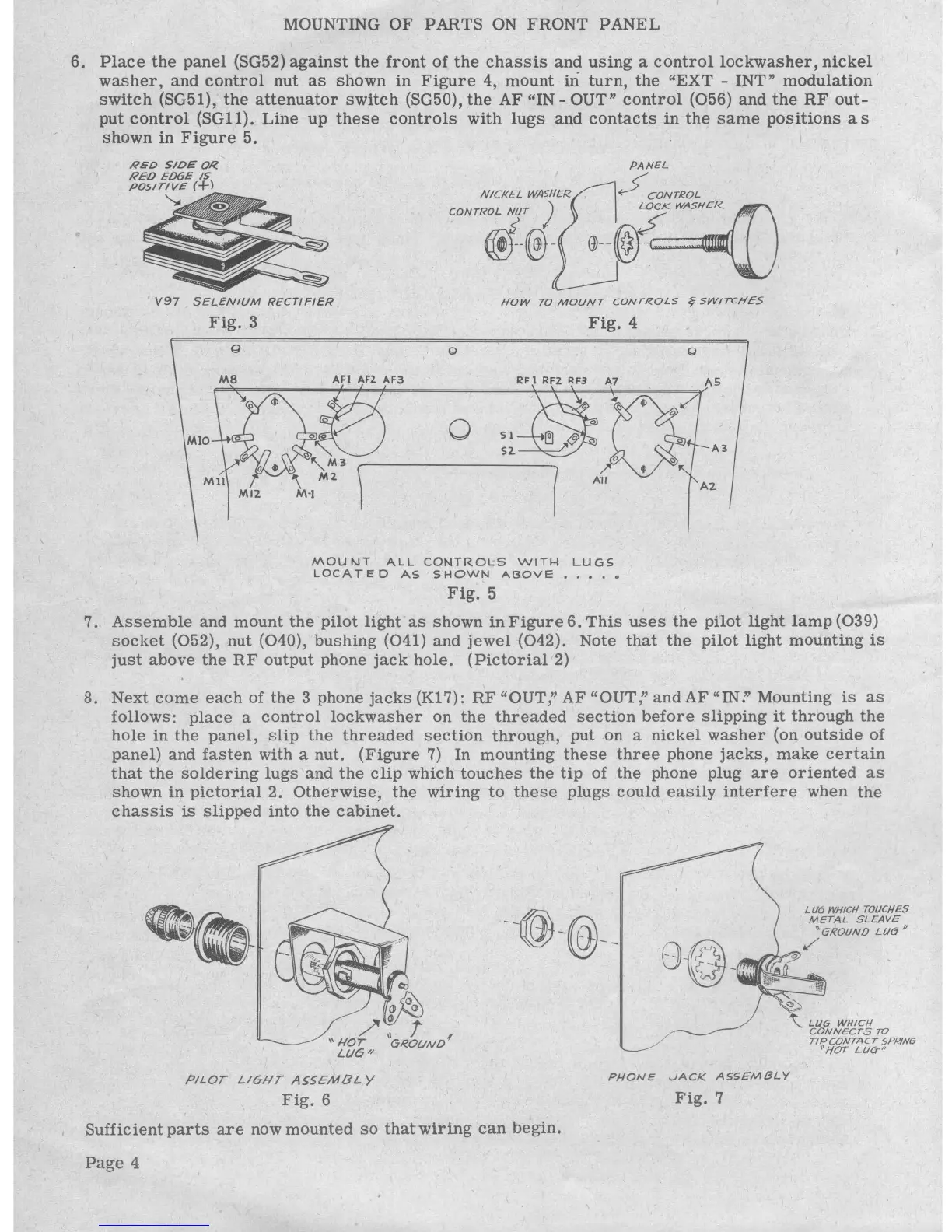

MOUNTING OF PARTS ON FRONT PANEL
6. Place the panel (SG52) against the front of the chassis and using a control lockwasher, nickel
washer, and control nut as shown in Figure 4, mount iri turn, the "EXT - INT" modulation
switch (SG51), the attenuator switch (SG50), the AF "IN - OUT" control {056) and the RF out-
put control (SGll). Line up these controls with lugs and contacts in the same positions as
shown in Figure 5.
•
RED S!DEOR
RED ED6E IS
POSITIVE (+l
""
V97 SEL.ENtUM RECTIFIER
Fig. 3
NICKEL WA91£R
CONTROL 1T )
@--®-
PANEL
\
~CONTROL
LOCK WASHER..
~--~--Mmfffl
HOW TO MOUNT CONTROLS ~SWITCHES
Fig. 4
0
SI n
S2.
,--~~~~~~~~--..
All
0
A3
A2
MOUNT ALL CONTROLS WITH LUGS
LOCATED AS SHOWN AC30VE •••••
Fig. 5
7.
Assemble and mount the pilot light as shown in Figure 6. This uses the pilot light lamp {039)
socket (052), nut (040), bushing (041) and jewel {042). Note that the pilot light mounting is
just above the RF output phone jack hole. (Pictorial 2)
8. Next come each of the 3 phone jacks {Kl 7): RF "OUT;' AF "OUT:' and AF "IN!' Mounting is as
follows: place a control lockwasher on the threaded section before slipping it through the
hole in the panel, slip the threaded section through, put on a nickel washer (on outside of
panel) and
fasten with a nut. (Figure 7) In mounting these three phone jacks, make certain
that the soldering lugs and the clip which touches the tip of the phone plug are oriented as
shown in pictorial 2. Otherwise, the wiring to these plugs could easily interfere when the
chassis is slipped into the cabinet.
--@-@--
L/16 WHICH TOI/CHES
METAL SLEAVE
"GROUND LU6 II
8@-W.1111~~/ ...
~
\__ LUG WHICH
CONNECTS TO
TIPU)NTACT 5PR!N6
''HOT Lll<T//
PILOT LIGHT ASSEMBLY
Fig. 6
PHONE JACK A55£MBLY
Fig. 7
Sufficient parts are now mounted so that wiring can begin.
Page 4
