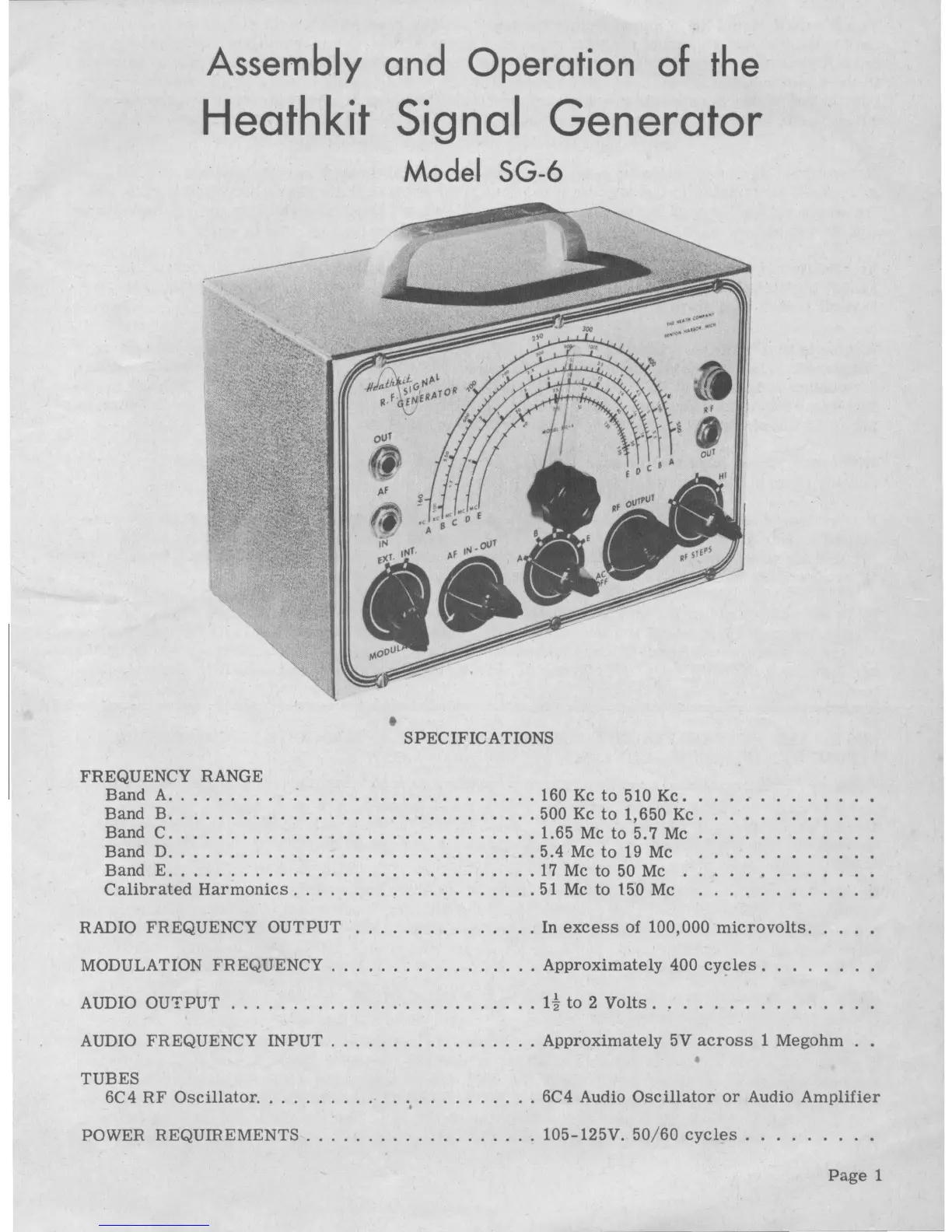

Heathkit SG-6 User Manual

Assembly and Operation
of the
Generator
Heathkit Signal
Model SG-6
•
SPECIFICATIONS
FREQUENCY RANGE
Band A .......... : ................... 160 Kc to 510 Kc.
Band B .............................. 500 Kc to 1,650 Kc.
Band C .............................. 1.65 Mc to 5. 7 Mc
Band D .............................. 5.4 Mc to 19 Mc
Band E .............................. 17 Mc to 50 Mc .
Calibrated Harmonics .................... 51 Mc to 150 Mc
RADIO FREQUENCY OUTPUT ............... In excess of 100,000 microvolts.
MODULATION FREQUENCY ................. Approximately 400 cy<;:les.
AUDIO
OUTPUT ......................... 1~ to 2 Volts. , ..... .
AUDIO FREQUENCY INPUT ................. Approximately 5V across 1 Megohm
•
TUBES
6C4 RF Oscillator ....................... 6C4 Audio Oscillator or Audio Amplifier
.
POWER REQUIREMENTS ................... 105-125V. 50/60 cycles .... .
Page 1
