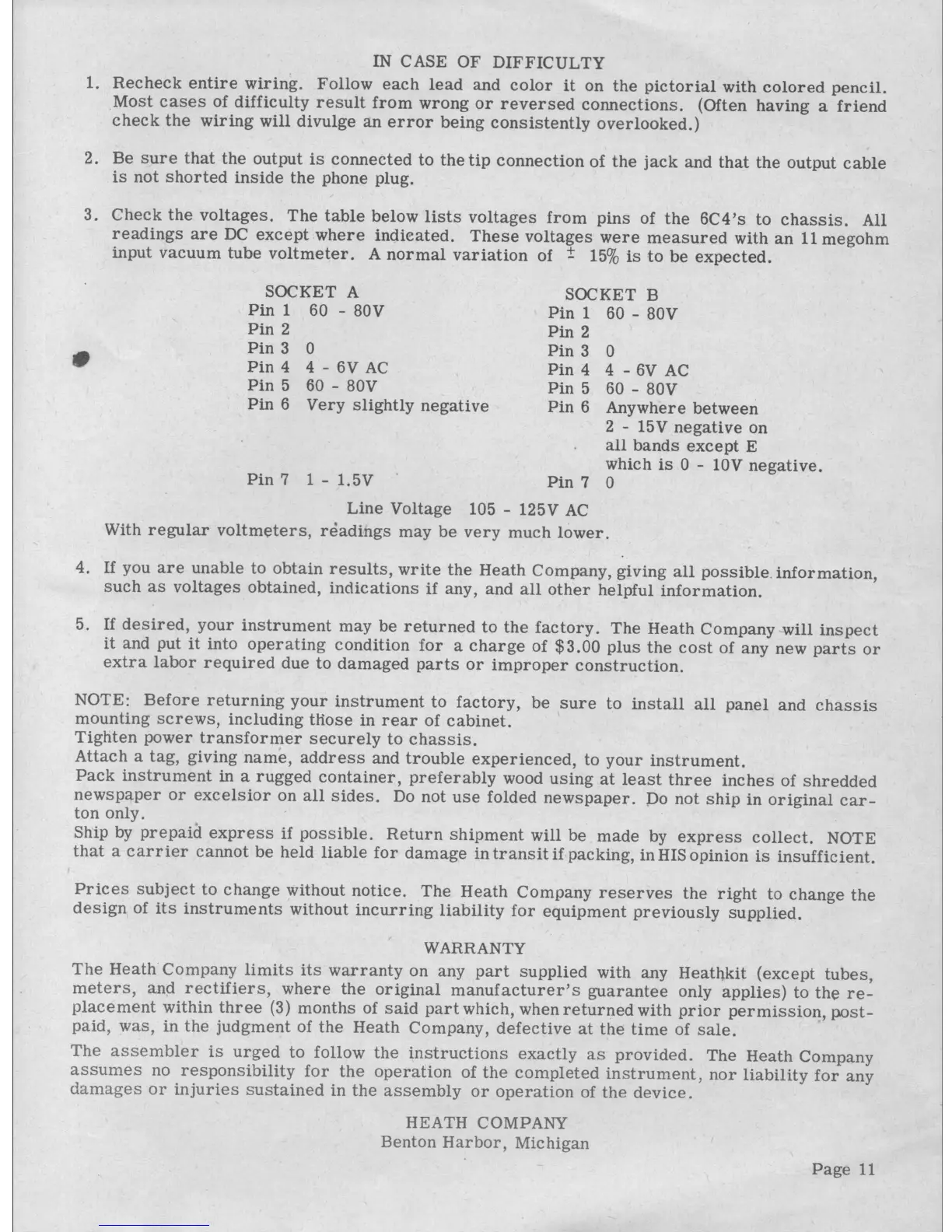

IN CASE OF DIFFICULTY
1. Recheck entire wiring. Follow each lead and color it on the pictorial with colored pencil.
Most cases of difficulty result from wrong or reversed connections. (Often having a friend
check the wiring will divulge an error being consistently overlooked.)
2. Be sure that the output is connected to the tip connection of the jack and that the output cable
is not shorted inside the phone plug.
3. Check the voltages. The table below lists voltages from pins of the 6C4's to chassis. All
readings are DC except where indieated. These voltages were measured with an 11 megohm
input vacuum tube voltmeter. A normal variation of ± 15% is to be expected.
SOCKET A
SOCKET B
Pin 1
60 - 80V
Pin 1
60 - 80V
Pin 2
Pin 2
•
Pin 3
0
Pin 3
0
Pin 4
4 -
6V AC
Pin 4
4 -
6V AC
Pin 5
60 - 80V
Pin 5
60 - 80V
Pin 6
Very slightly negative
Pin 6
Anywhere between
2 - 15V negative on
all bands except E
Pin 7
1 -
1.5V
which is 0 - lOV negative.
Pin 7
0
Line Voltage 105 - 125V AC
With regular voltmeters, readings may be very much lower.
4. If you are unable to obtain results, write the Heath Company, giving all possible information,
such as voltages obtained, indications if any, and all other helpful information.
5. If desired, your instrument may be returned to the factory. The Heath Company will inspect
it and put it into operating condition for a charge of $3.00 plus the cost of any new parts or
extra labor required due to damaged parts or improper construction.
NOTE: Before returning your instrument to factory, be sure to install all panel and chassis
mounting screws, including tliose in rear of cabinet.
Tighten power transformer securely to chassis.
Attach a tag, giving name, address and trouble experienced, to your instrument.
Pack instrument in a rugged container, preferably wood using at least three inches of shredded
newspaper or excelsior on all sides. Do not use folded newspaper. Do not ship in original car-
ton only.
Ship by prepaid express if possible. Return shipment will be made by express collect. NOTE
that a carrier cannot be held liable for damage in transit if packing, in HIS opinion is insufficient.
Prices subject to change without notice. The Heath Company reserves the right to change the
design of its instruments without incurring liability for equipment previously supplied.
WARRANTY
The Heath Company limits its warranty on any part supplied with any Heathkit (except tubes,
meters , anq rectifiers, where the original manufacturer's guarantee only applies) to the re-
placement within three (3) months of said part which, when returned with prior permission, post-
pa id, was , in the judgment of the Heath Company, defective at the time of sale.
Th e as s embler is urged to follow the instructions exactly as provided. The Heath Company
a ssu m es no responsibility for the operation of the completed instrument , nor liability for any
da m age s or injuries sustained in the assembly or operation of the device.
HEATH COMPANY
Benton Harbor , Mi chigan
Page 11
