20 Heatilator • CNXT Series • 4000-011 Rev N • 11/05
12 ft (3.66 m) min.
60 ft (18.29 m) max.
0 min.
6 ft (1.83 m) max.
Maximum horizontal run is
100% of vertical, but can-
not exceed 26 ft (7.92 m).

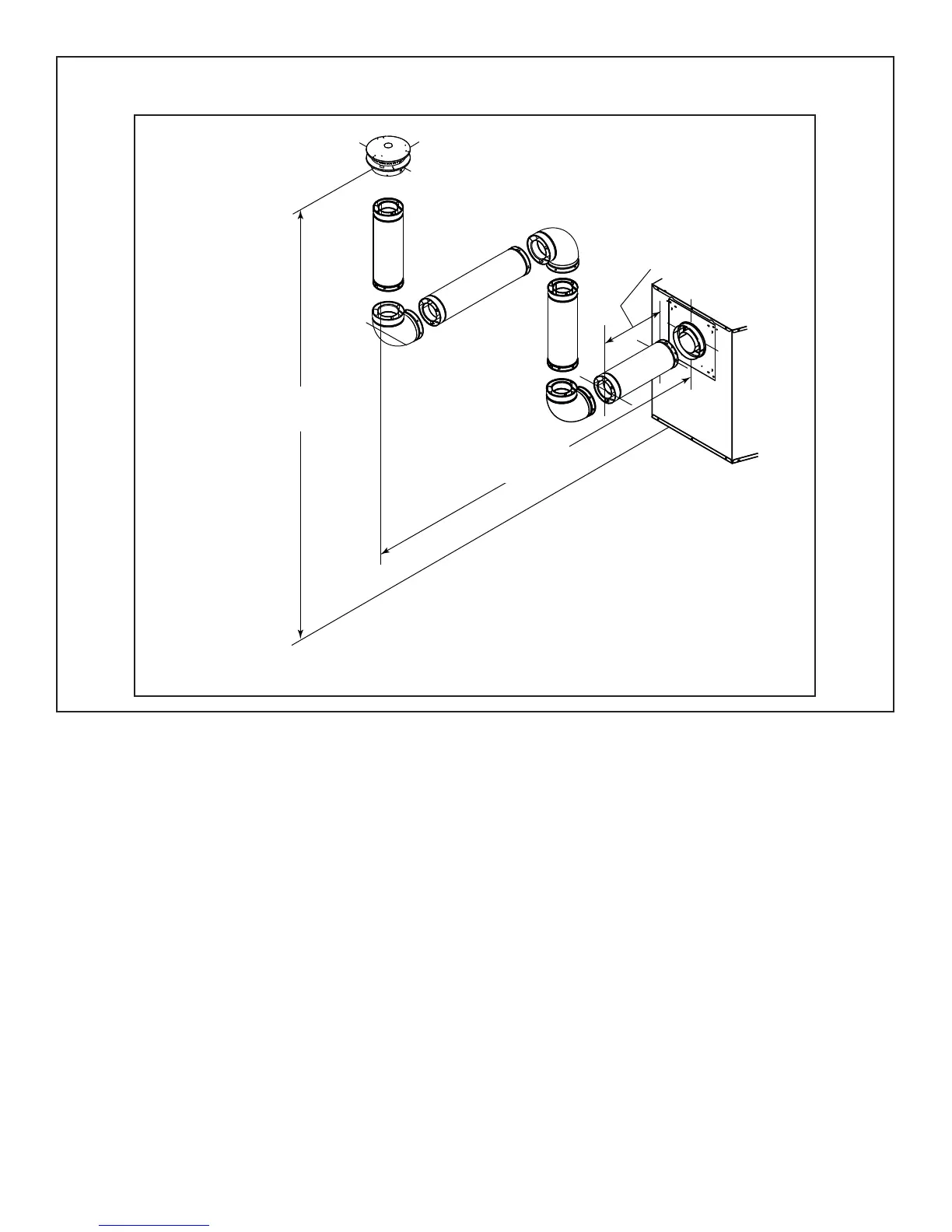

Figure 5.16 Vertical Termination - Three Vertical Elbows
Rear Vent—Vertical Termination—Three Vertical Elbows
