Set the Logs - CNXT90I (42 in.)
• Place LEFT FRONT LOG on the front left corner of the
far left grate bar. The rounded notch in the bottom of the
log should sit over the grate bar with the remainder of the
log sitting on the hearth log. See Figure 12.7.

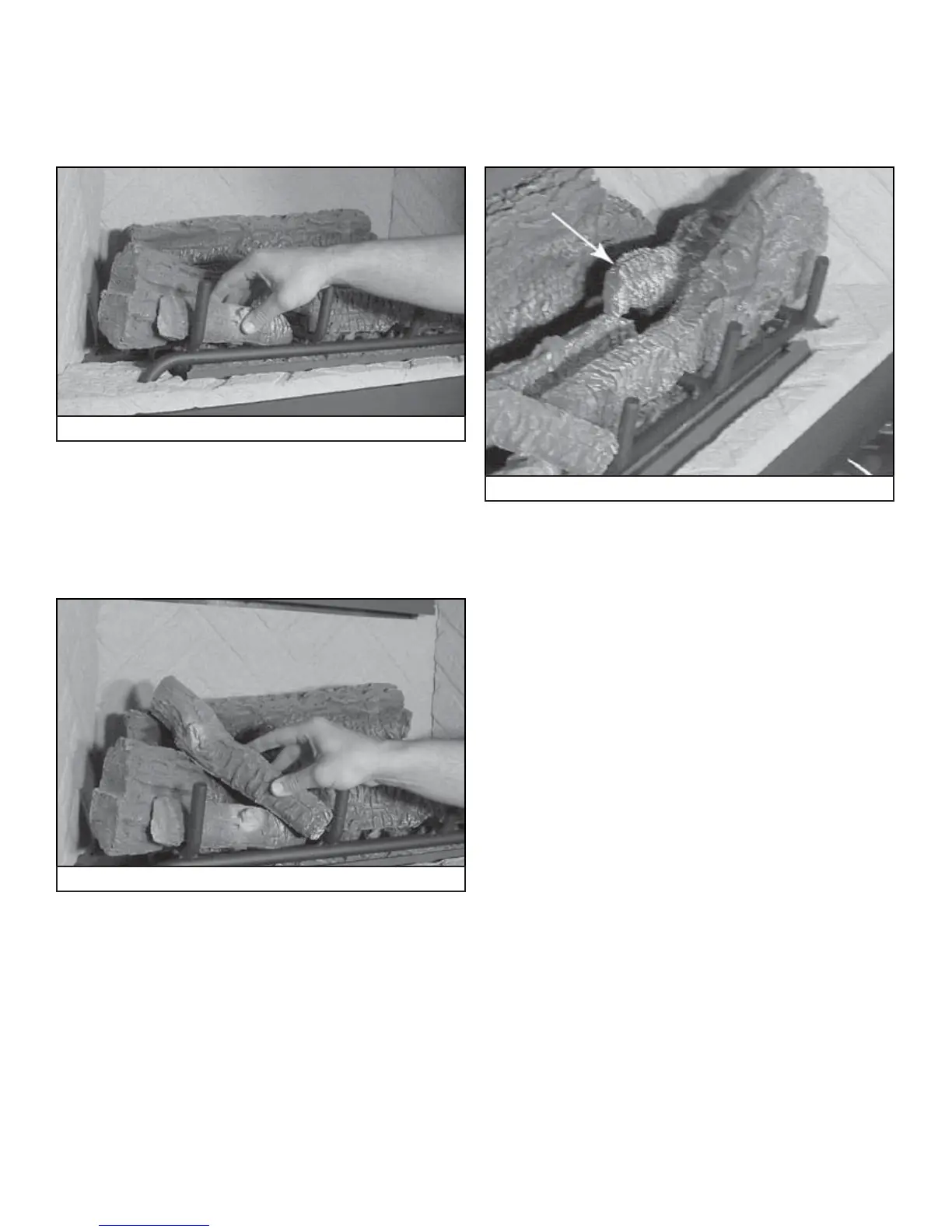

Figure 12.7 Set Left Front Log
Figure 12.8 Set Left Top Log (Natural Gas Shown)
• Place LEFT TOP LOG so that the burnt tip of the log
sits against the left center grate bar. The body of the log
should rest on the white groove on the left center log and
the groove in the back log (natural gas). See Figure 12.8.
If your appliance is set up for LP gas, this log will not sit
on the back log.
Figure 12.9 Set Right Center Log
• Place RIGHT CENTER LOG so that the groove in the
bottom of the log sits on the right grate bar. The log should
sit on the tip of the left center log against the log tab and
against the tab on the right grate bar. See Figure 12.9.
