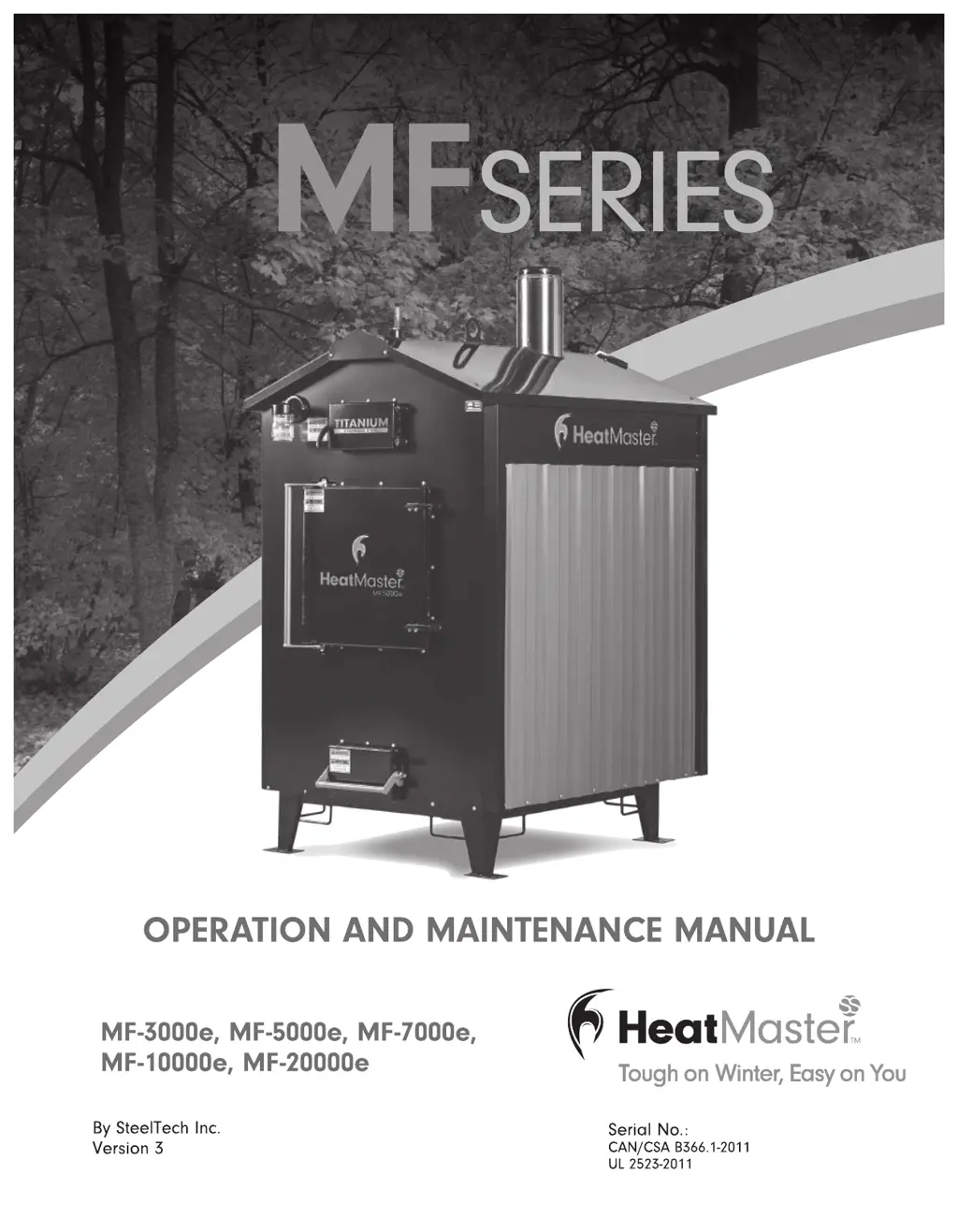

Heatmaster MF Series - User Manual

Heatmaster MF Series
24 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...

Table of Contents

Questions and Answers

  • M
    Makayla WalkerJul 28, 2025
    How to fix Heatmaster Furnace overheating?
    • J
      Julie ReedJul 28, 2025
      If your Heatmaster furnace overheats, make sure that all doors are closing properly and that the door gasket is completely sealing. Also, check that the damper plate is opening and closing without hang-ups. Inspect the venting and fan box on the rear of the furnace for air leaks. Verify that the temperature settings are correct: the furnace should be set on Heating Mode (H1) and the high temperature setting should be no higher than 185° F. Check chimney draft, water level, and ensure the door and ash drawer are airtight. Finally, make sure all pumps in the system are running.
  • B
    Brian MirandaAug 2, 2025
    How to troubleshoot Heatmaster Furnace not heating water?
    • M
      Marco ReedAug 2, 2025
      If your Heatmaster furnace is running but not heating the water to the correct temperature, you should: * Check the fan. * Check the damper and box elbow. * Ensure the furnace is appropriately sized for the heat demand. * Check the fuel quality. * Check the water level. * Check for ash and creosote blockage at the chimney and bypass trough. * Verify the temperature settings are correct (at least 165 F). * Check for power. * Ensure all pumps are running. * Check for leaks. * Check the temperature of water exiting the furnace, entering the building, and before and after each heat exchanger.
  • N
    Nicole BrooksAug 7, 2025
    What to do if Heatmaster Furnace shut down?
    • T
      Tara GarciaAug 7, 2025
      If your Heatmaster furnace has shut down, verify that the unit has power, and that the Furnace On/Off switch is in the On position. Check the water temperature, noting that the furnace has a high-temperature cut-out at 190 degrees F and turns back on at 140 degrees.
  • S
    simpsonfrankAug 12, 2025
    Why Heatmaster Furnace water is hot but buildings have no heat?
    • J
      Jeremiah MolinaAug 12, 2025
      If the water in your Heatmaster furnace is hot, but the buildings aren't receiving heat, make sure that all pumps in the system are running. Also, check for air in the system at the exchanger by bleeding it off. Check the temperature of the water exiting the furnace, entering the building being heated, and before and after each heat exchanger.
  • M
    Michaela DavisAug 17, 2025
    How to stop smoke leaking from Heatmaster MF Furnace door?
    • A
      Adam RodriguezAug 17, 2025
      If you see smoke leaking out of the door of your Heatmaster furnace, first check to ensure the door is sealing properly. If the seal is worn out, it will need to be replaced.
  • J
    Joseph LewisAug 22, 2025
    What happens to Heatmaster MF Furnace during a power failure?
    • D
      darryl14Aug 22, 2025
      Depending on the system design, a power failure may allow convective circulation. Remember that heating systems cannot dispose of a great deal of heat without the pumps and zone valves, so it's important to resume normal operation of the system.

Summary

Warranty and Safety

Limited Lifetime Warranty

Details the warranty coverage, terms, and conditions for the HeatMaster outdoor furnace.

Water Treatment and Testing

Policy requiring water testing minimum once per year for warranty qualification.

Safety Precautions

Essential safety instructions for operating and maintaining the furnace to prevent hazards.

Installation

Furnace Installation Guide

Guidelines for the proper installation of the furnace, including location and clearances.

Chimney Installation

Details on the stainless steel double wall insulated chimney and its installation.

Furnace Foundation and Site Prep

Instructions for preparing a stable foundation and digging trenches for water lines.

Electrical and Hydronic Connections

Guidelines for wiring and connecting hydronic lines according to code and specifications.

Building and Interior Connections

Connecting the furnace to the building and interior heating systems.

Forced Air System Integration

Details on mounting and sizing water-to-air heat exchangers for forced air systems.

Operating the Furnace

How It Works

Explanation of the MF Series furnace's operational principles and heat exchange process.

Filling the Furnace With Water

Procedure for filling the furnace with water, including safety precautions and water level checks.

Firing the Furnace

Instructions and warnings for starting and maintaining a fire in the furnace.

Fuel Types and Handling

Guidance on using wood and coal as fuel, including quality, storage, and loading techniques.

Ash and Clinker Management

Procedures for cleaning ash, managing clinkers, and using the shaker grate and dump features.

Care and Maintenance

Daily Checks

Essential daily checks to ensure safe and efficient furnace operation.

Weekly Checks

Recommended weekly maintenance tasks for optimal furnace performance.

Seasonal Checks

Seasonal maintenance procedures for when the furnace is not in use.

Troubleshooting

Creosote and Fly Ash Issues

Addressing creosote and fly ash formation, including inspection, removal, and prevention.

Disposal of Ashes

Safe procedures for disposing of hot ashes from the furnace.

Furnace Not Heating Water

Steps to diagnose why the furnace is running but not heating the water.

Heating Issues

Diagnosing and resolving problems related to water temperature and heat distribution.

Overheating and Smoke Leaks

Troubleshooting furnace overheating and smoke leakage from doors.

Creosote and Water Loss

Addressing excessive creosote buildup and unexplained water loss from the furnace.

Electrical Schematics

Ranco Control Schematic (MF-3000 e;5000 e;7000 e)

Wiring diagram for the Ranco Electronic Temperature Control on specific MF Series models.

Ranco Control Schematic (MF-10000 e;20000 e)

Wiring diagram for the Ranco Electronic Temperature Control on higher capacity MF Series models.

Electronic Temperature Control

Programming and Display

Guide to programming the Ranco ETC, including steps and display interpretation.

Troubleshooting Error Messages

Explanation and correction for error messages displayed by the Ranco ETC.

Control Specifications

Technical specifications for the Ranco Electronic Temperature Control unit.

Air Damper Adjustment

Unit Footprints and Dimensions

Replacement Components List

Heatmaster MF Series Specifications
