Heatmiser PRT - Wiring Diagram: PRT to Boiler S;L; Wiring Diagram: PRT to Boiler Voltfree

2625
Slimline Series Model: PRT / PRT-N
TO CONNECT BOILER CONSULT
BOILER MAKERS DIAGRAM
NEUTRAL
LIVE
230V SUPPLY IN
230V AC 50/60Hz
SWITCHED LIVE TO BOILER
PRT
A1A2
LN
230VAC

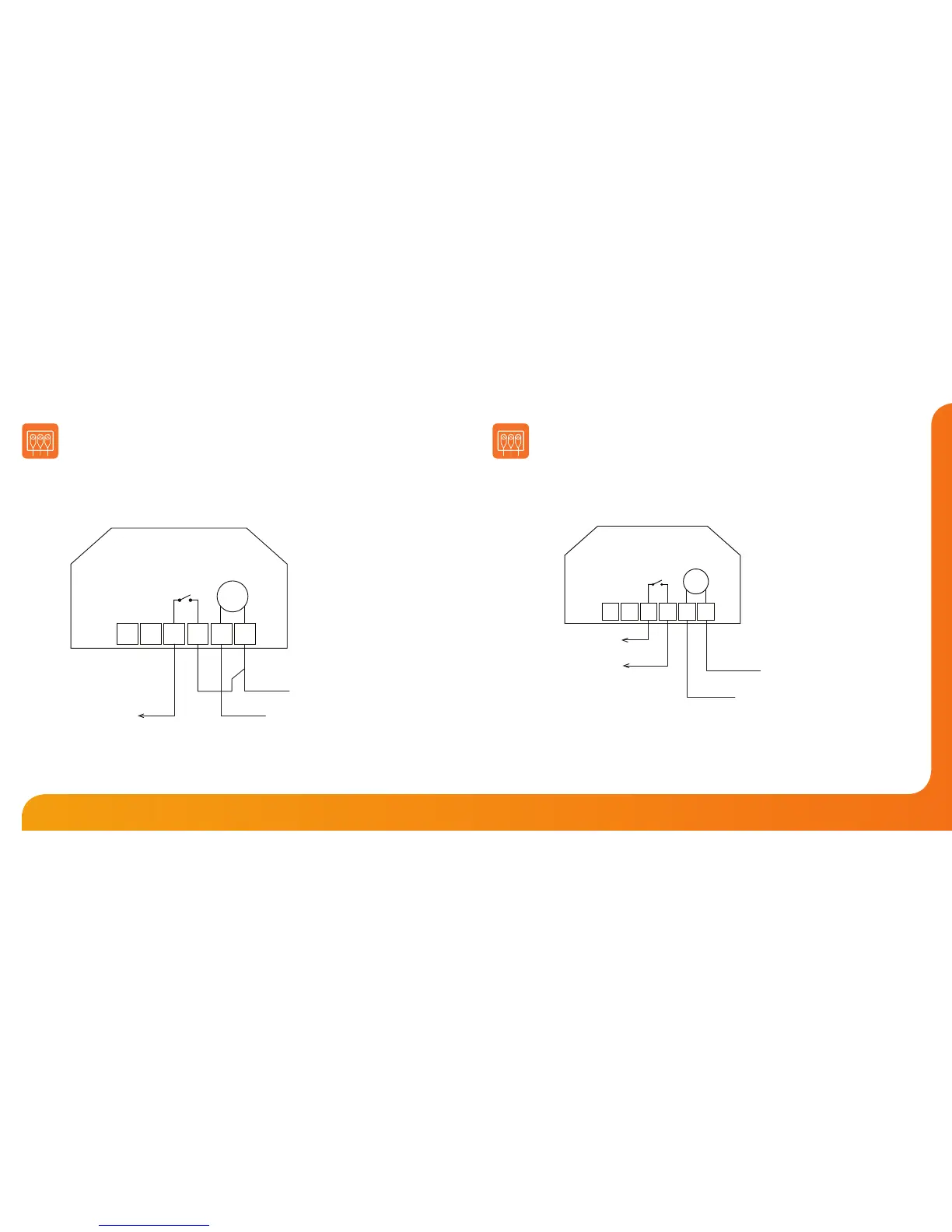

Wiring Diagram - PRT to Boiler S/L Wiring Diagram - PRT to Boiler Voltfree
TO CONNECT BOILER CONSULT
BOILER MAKERS DIAGRAM
NEUTRAL
LIVE
LS
LR
230V SUPPLY IN
LS & LR ARE NORMALLY THE
ROOM THERMOSTAT CONNECTIONS
VOLT FREE TO BOILER
230V AC 50/60Hz
PRT
A1A2
LN
230VAC
THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD
THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD
