Heatmor 200 CSS - Flash Curtain; Heat Shield Purpose

50
Flash Curtain / Heat Shield
Principles of the Flash Curtain / Heat Shield
The purpose of the ash curtain is to decrease the amount of
smoke emitted from the door when loading wood into the rebox.
The ash curtain decreases the size of the rebox opening,
making that size more in proportion to the area the natural draft
of the chimney will draw from. As a heat shield, the ash curtain
restricts the amount of direct heat that contacts the rebox door
directly.
Maintenance/Result
Leaving the ash curtain in place is effective for the principles
outlined above.
Removal and Replacement
1) The plate is slotted at the top and ts loosely onto
two hooks, installed above the rebox door
opening.
2) With the ashes cooled down, lift up on the plate
until it releases itself from the hooks.

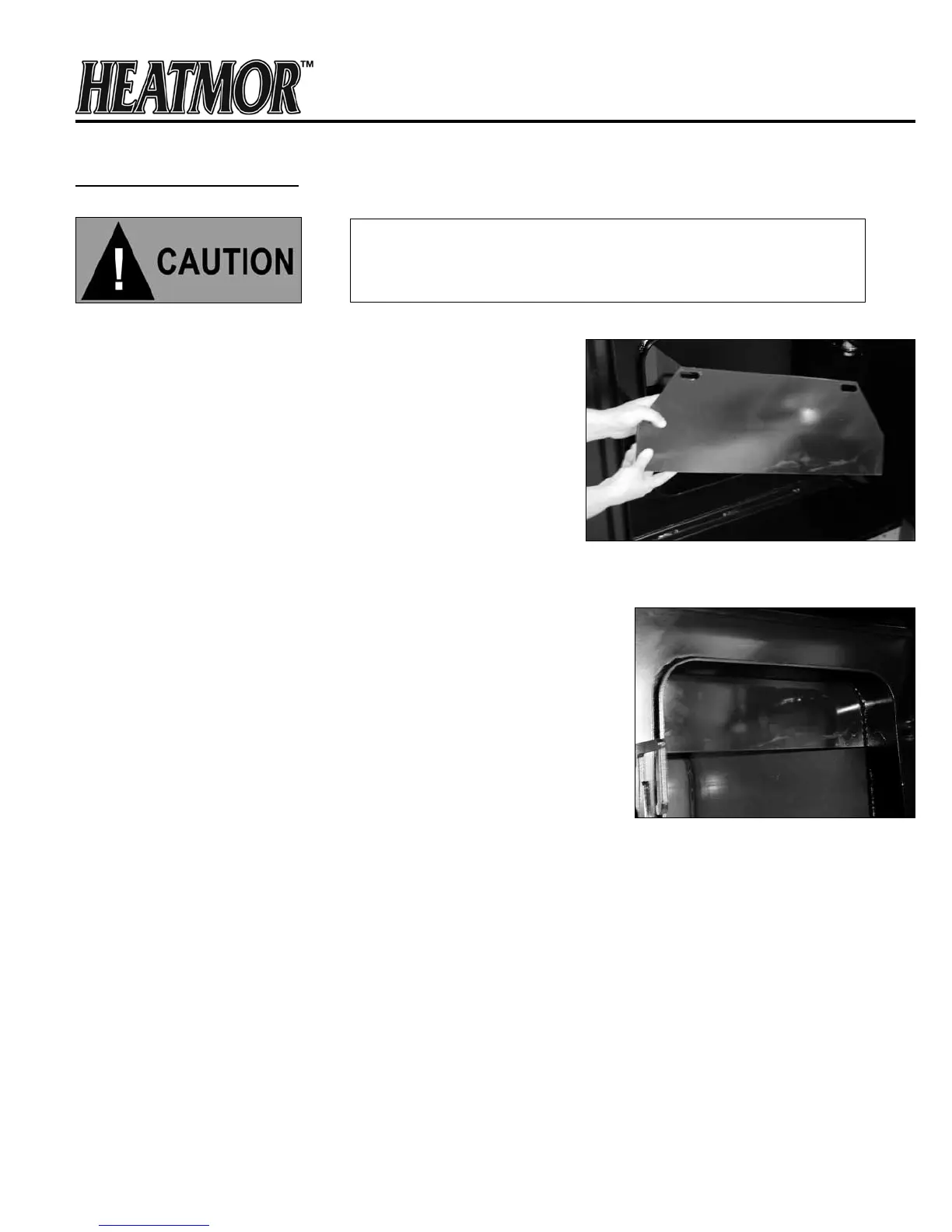

Flash Curtain
Proper placement of Flash Curtain
ABSOLUTELY NO FIRE IN THE FIREBOX WHEN PERFORMING
THIS REPAIR. ALWAYS WEAR PROPER PERSONAL
PROTECTIVE EQUIPMENT.
