3.2 Dimensions and connections

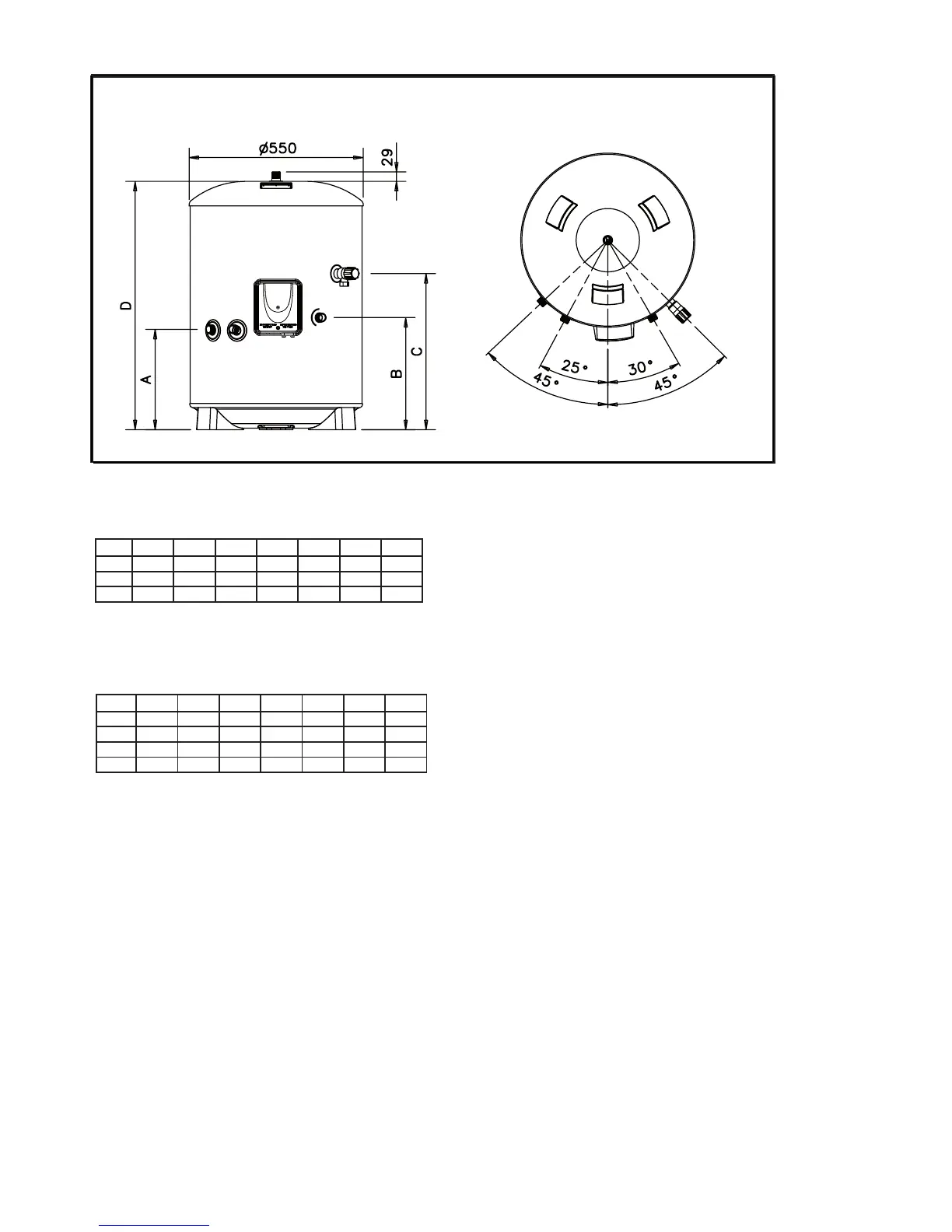

Figure 1: General dimensions - Direct
Table 3: General dimensions table - Direct
Item 100E 120E 150E 170E 210E 250E 300E
B 306 306 306 306 306 306 306
C 493 616 800 925 1184 1437 1751
D 784 906 1090 1216 1474 1726 2040
Item 100B 120B 150B 170B 210B 250B 300B
A 315 315 315 315 315 315 315
B 354 354 354 354 354 354 354
C 500 616 800 927 1184 1439 1754
D 784 906 1090 1216 1474 1726 2040
Table 4: General dimensions table - Indirect
