3.5 PLUMBING
1. Plumb the Streamline to the cold water main via a VENTED tap using 15mm
diameter copper or plastic pipe. Water pressure should be no lower than
0.034MPa (0.34bar) and no higher than 1.0MPa (10bar).
2. Make connections to the adaptor pipes. The inlet is on the right, the outlet
is on the left (see gure 5 below).
3. Fit the ow restrictor in the incoming supply (see gure 5 below)
NOTE: It is recommended that a WRAS listed isolating valve (not supplied) is
tted on the cold water supply to the heater for servicing.
INLET OUTLET

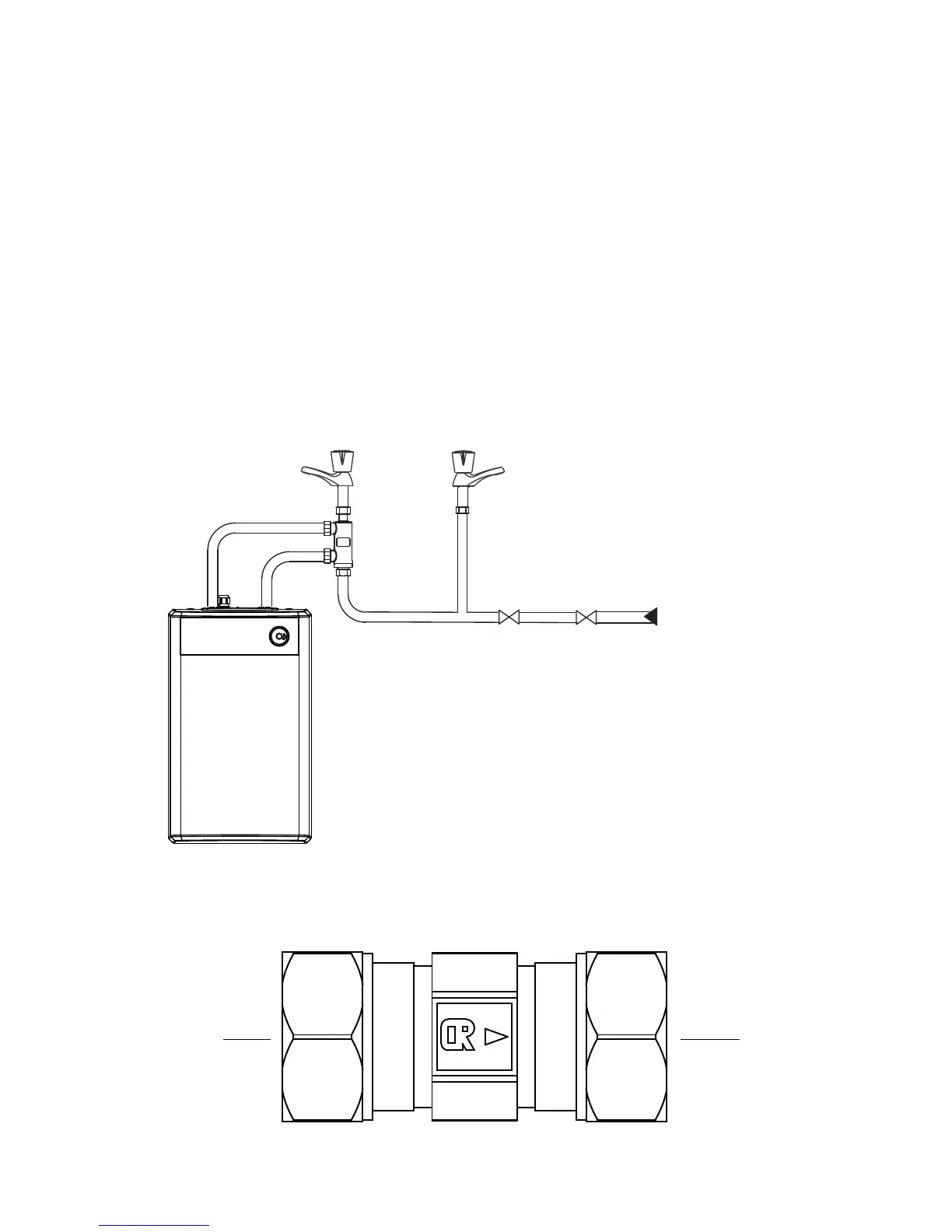

FIGURE 06 - FLOW RESTRICTOR
FIGURE 05 - PLUMBING DIAGRAM
HOT TAP COLD TAP
INLET
SERVICE
VALVE
WATER SUPPLY
OUTLET
WATER
HEATER
FLOW
RESTRICTOR
