9
Analog Inputs
• RCA Right (MM)
• RCA Left (MM)
• RCA Right (MC)
• RCA Left (MC)
Warning! Never use shorting plugs
on this product
Analog Outputs
• RCA Right
• RCA Left
• XLR Right
• XLR Left
Ground Connection
• GND
AC Power Connection
• AC Power adapter 2x 18VAC 300mA
230V/120V/100V AC depending on
country.
• The AC Power Connection is found under-
neath the V10.
The phono pre-amplifier has two sets of
analogue signal inputs. One for Moving
Magnet (MM) cartridges and one for Moving
Coil (MC) cartridges. Please consult your
cartridge manual to see which you have,
Warning! Never connect MM and
MC inputs simultaneously
The phono pre-amplifier has two types of
analog audio outputs: unbalanced audio
signal (RCA/phono) and true balanced audio
signal (XLR: pin 2 is positive phase, pin 3 is
negative phase, and pin 1 is chassis ground).
We recommend using the balanced XLR
outputs from the phono preamplifier as this
gives the highest level of sound quality.
NOTE: The RCA output signal level is 6dB
lower than the XLR output signal level.

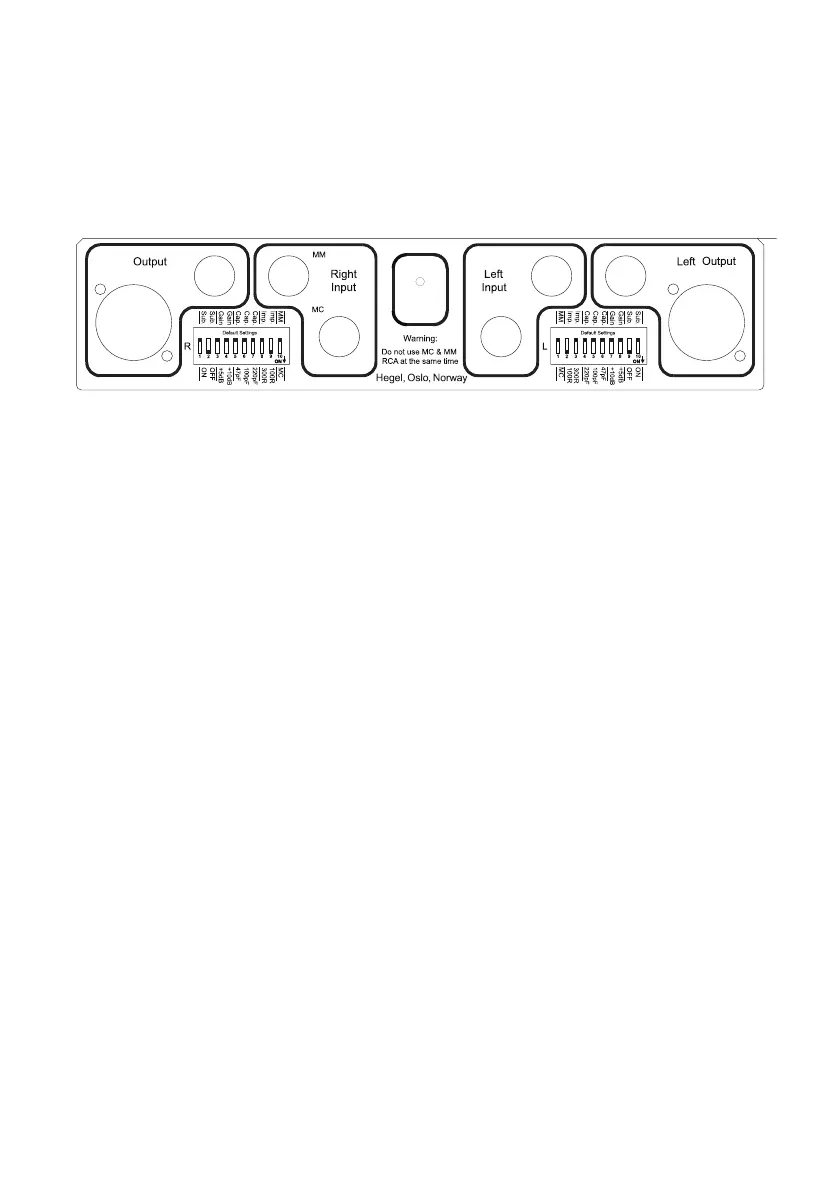

Connections
Right
GND
MM
MC
