POSITIP 880 47
I – 5 Milling Patterns

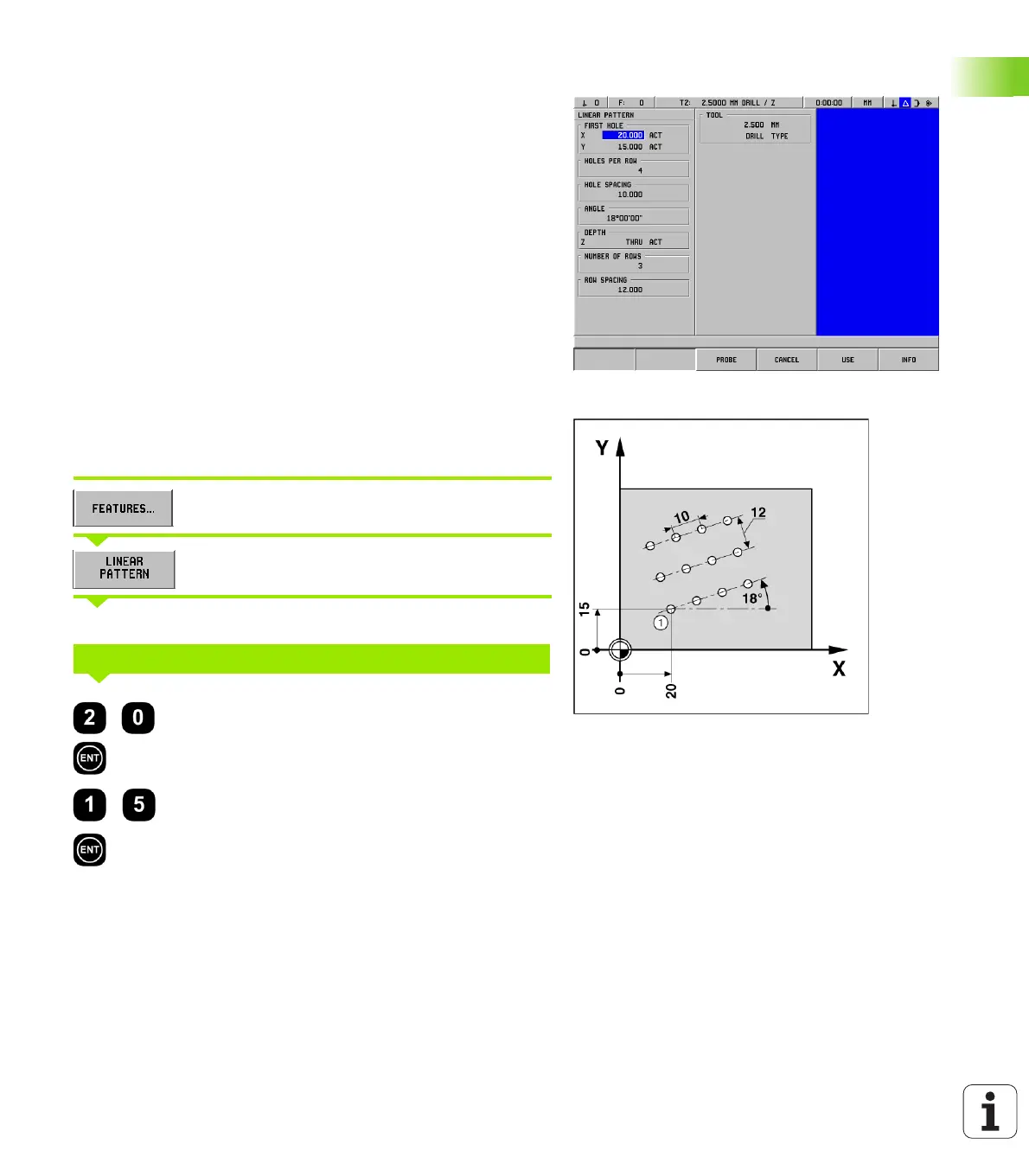

Example: Entering data and executing linear pattern. See Fig. I.37
& Fig. I.38.
First X coordinate of hole: X = 20 mm
First Y coordinate of hole: Y = 15 mm
Number of holes per row: 4
Hole spacing: 10 mm
Tilt angle: 18°
Hole depth: Z = THRU
Number of rows: 3
Row spacing: 12 mm
1st step: Enter data
Operating mode: DISTANCE-TO-GO
Press FEATURES soft key.
Press LINEAR PATTERN.
Begin data entry.
Enter the coordinates of first hole (X = 20 mm).
Press ENT.
Y = 15 mm.
Press ENT.
Fig. I.37 LINEAR PATTERN input form
Fig. I.38
FIRST HOLE X AND Y
