HEIDENHAIN TNC 430 CA Technical Manual

December 2001 Tool Changer 6 – 429
S → N,
Double changing
arm, M4540 = 1
First the pocket and tool numbers of the new tool are transferred.
7
77
7 Acknowledge with M4093.
Then the pocket tool number of the old tool and the tool number zero are
transferred.
Zero means clear the spindle!
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0

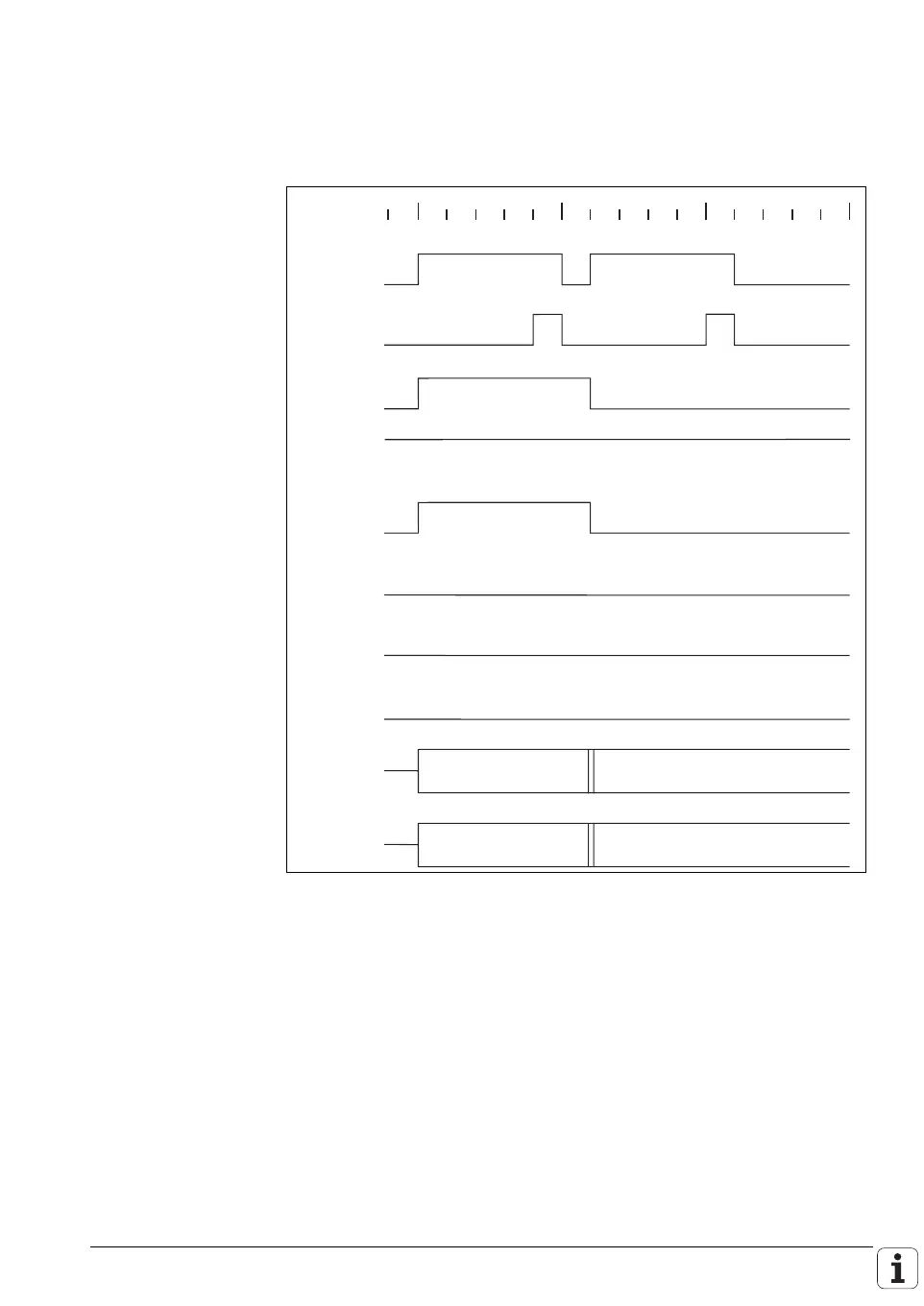

W264
M4541
W262
M4524
M4523
M4522
M4540
M4520
M4093
M4073
Pocket No. [N]
Tool No. [N]
Pocket No. [S]
Tool No. Ø

HEIDENHAIN TNC 430 CA Specifications

General

Manufacturer	HEIDENHAIN
Resolution	640 x 480 pixels
Number of Axes	Up to 5
Interpolation	Linear, circular, helical, spline
Power Supply	24 V DC
Operating Temperature	0 to 45 °C
Control Unit Type	CNC
Display	Color TFT
Interfaces	RS-232, USB, Ethernet
Protection Class	IP20
