HEIDENHAIN TNC 430 CA Technical Manual

December 2001 PLC Functions 7 – 11
7.1.6 The Table Function
From the main menu, choose TABLE to select the table of markers, inputs,
outputs, timers, counters, bytes, words, double words and strings in order to
show their states dynamically on the screen. To select a certain operand, use
the cursor keys or the GOTO key. Press the END key to return to the main
menu.

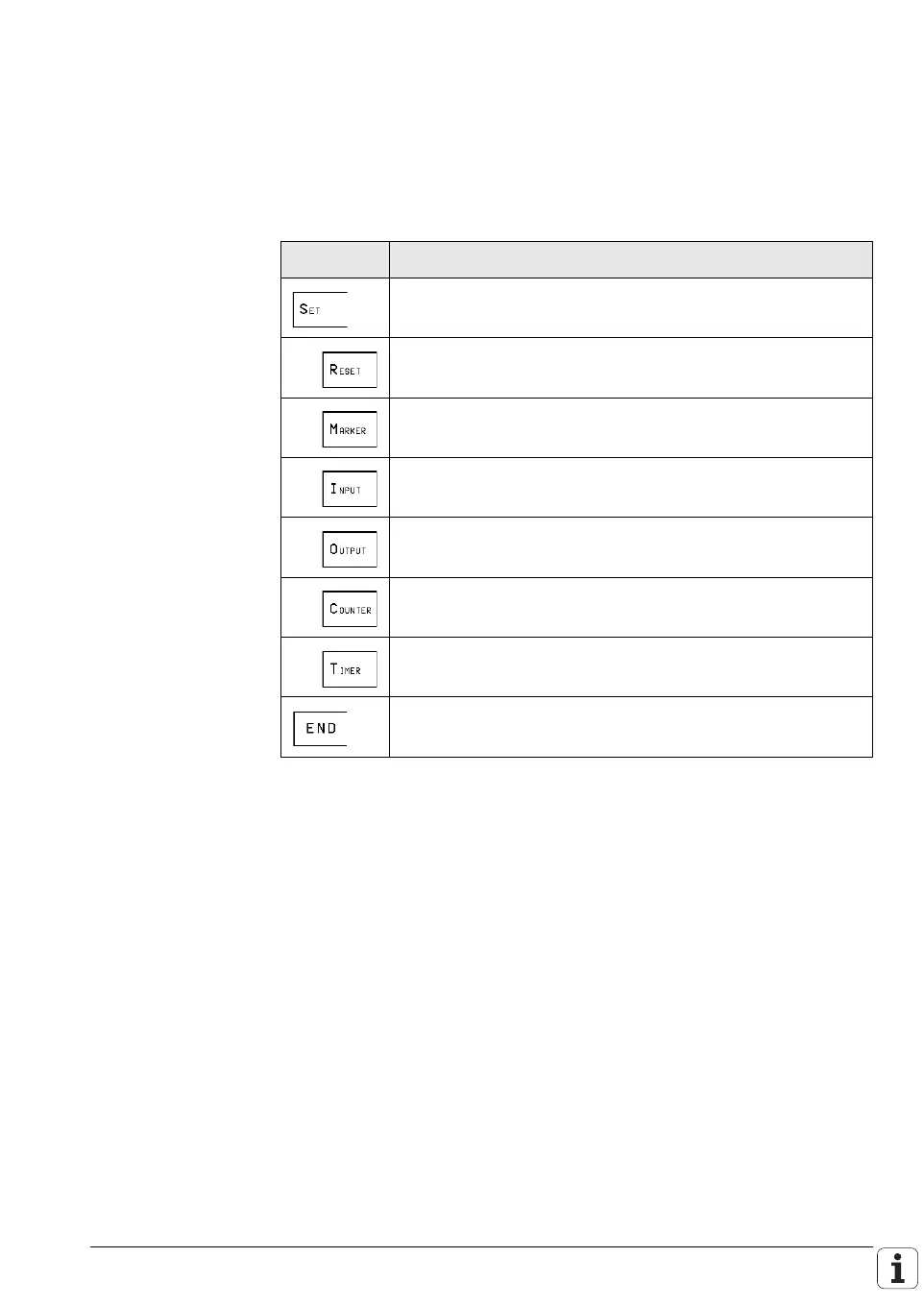

Soft keys in the table function (first soft-key row):
Soft key Function
Set the selected operands.
Reset the selected operands.
Show list of markers.
Show list of inputs.
Show list of outputs.
Show list of counters.
Show list of timers.
Back to previous menu.

HEIDENHAIN TNC 430 CA Specifications

General

Manufacturer	HEIDENHAIN
Resolution	640 x 480 pixels
Number of Axes	Up to 5
Interpolation	Linear, circular, helical, spline
Power Supply	24 V DC
Operating Temperature	0 to 45 °C
Control Unit Type	CNC
Display	Color TFT
Interfaces	RS-232, USB, Ethernet
Protection Class	IP20
