53
------When two cylinders are operated in parallel, he pressure relief valve also
prevents excessive cylinder pressure occurring due to uneven loading of the cylinders.
------With summing circuits, only one pump should be engaged to lower the load
in order to avoid pressure intensification.

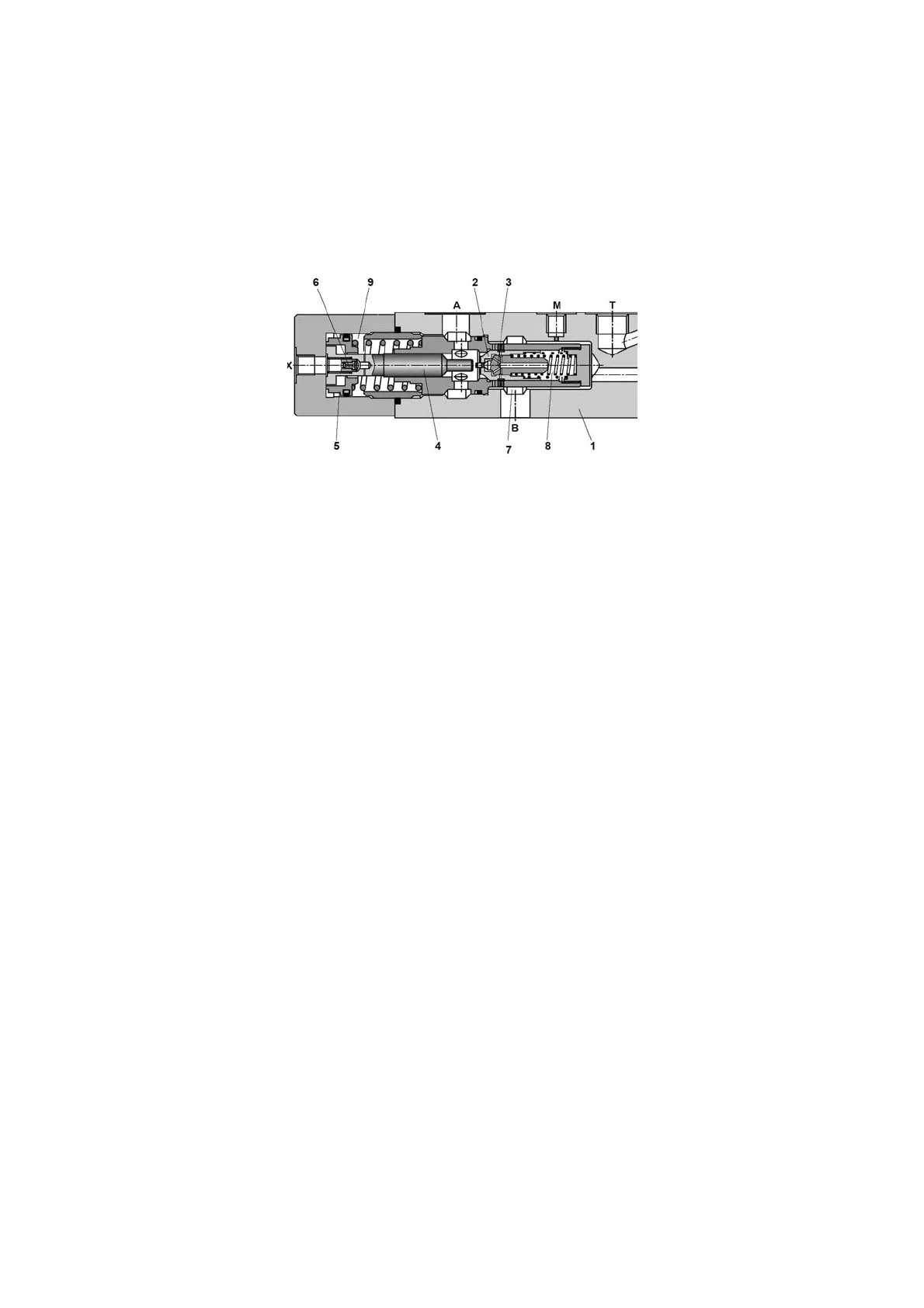

Fig.8-6 Cylinder Safety Lock Valve
(6)The principle of Hydraulic system diagram
