58
(1)Cap (2)Rod piston (3)Seal dust (4)Snap ring
(5) U-ring (6)Bushing (7)O-ring (8)Cylinder body
(9)Sleeve adjusted (10)Piston (11)Steel wire Snap ring
(12) Wearing (13)Snap patch (14)U-ring (15)Bolt
(16)Washer (17) Nut M6 (18)Cut-off valve

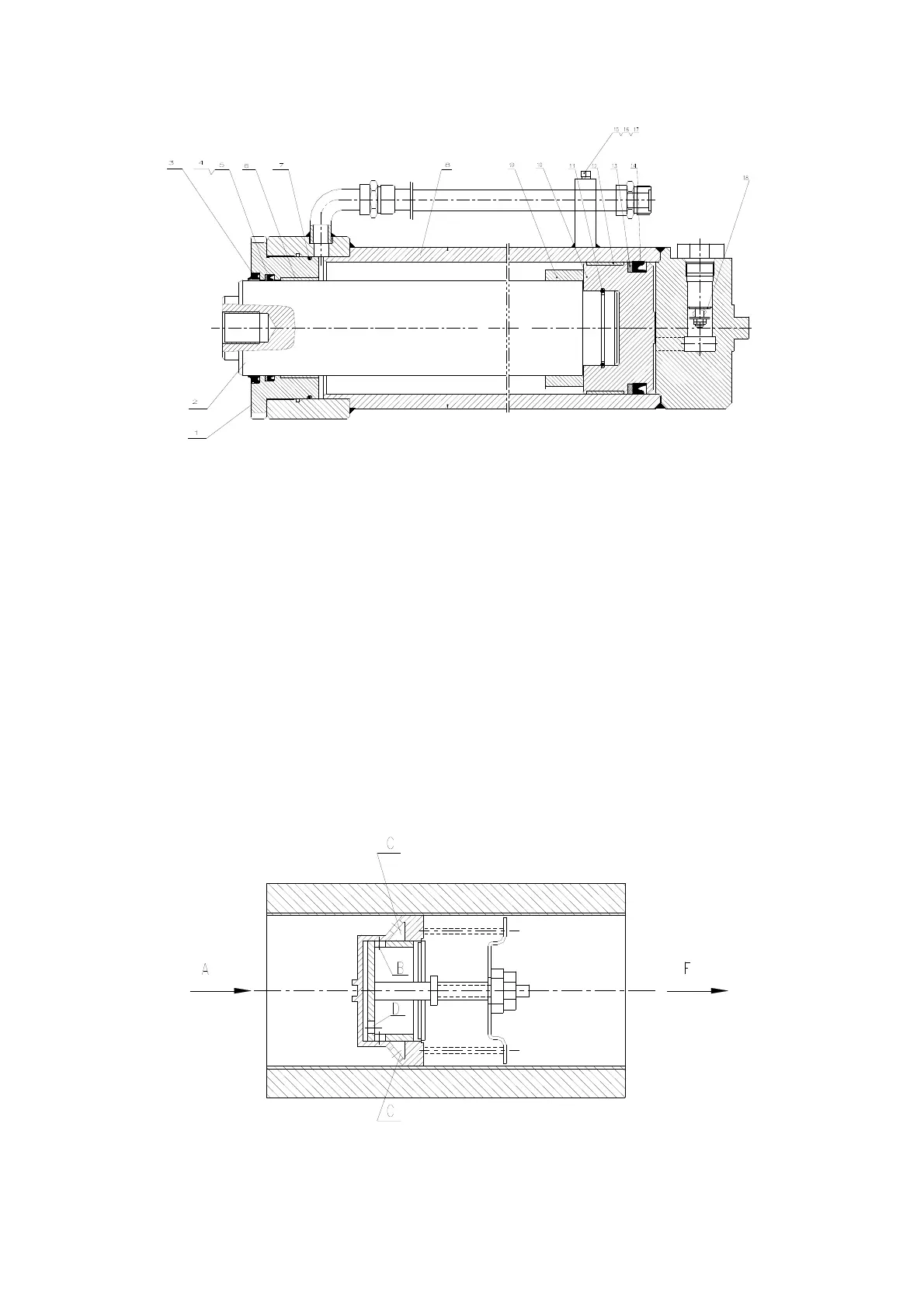

Fig.9-1 CPCD140～CPCD160 Lift cylinder form
9.6 Flow Regulator
Flow Regulator (throttle) is located between the control valve and the high
pressure ports of the two lift cylinders, near the left lift cylinder. Flow regulator is
used to limit the fall speed of forks and side suspenders when over loading. The
structure of the flow regulator as shown in Fig.9-2.
Fig. 9-2 Flow Regulator
