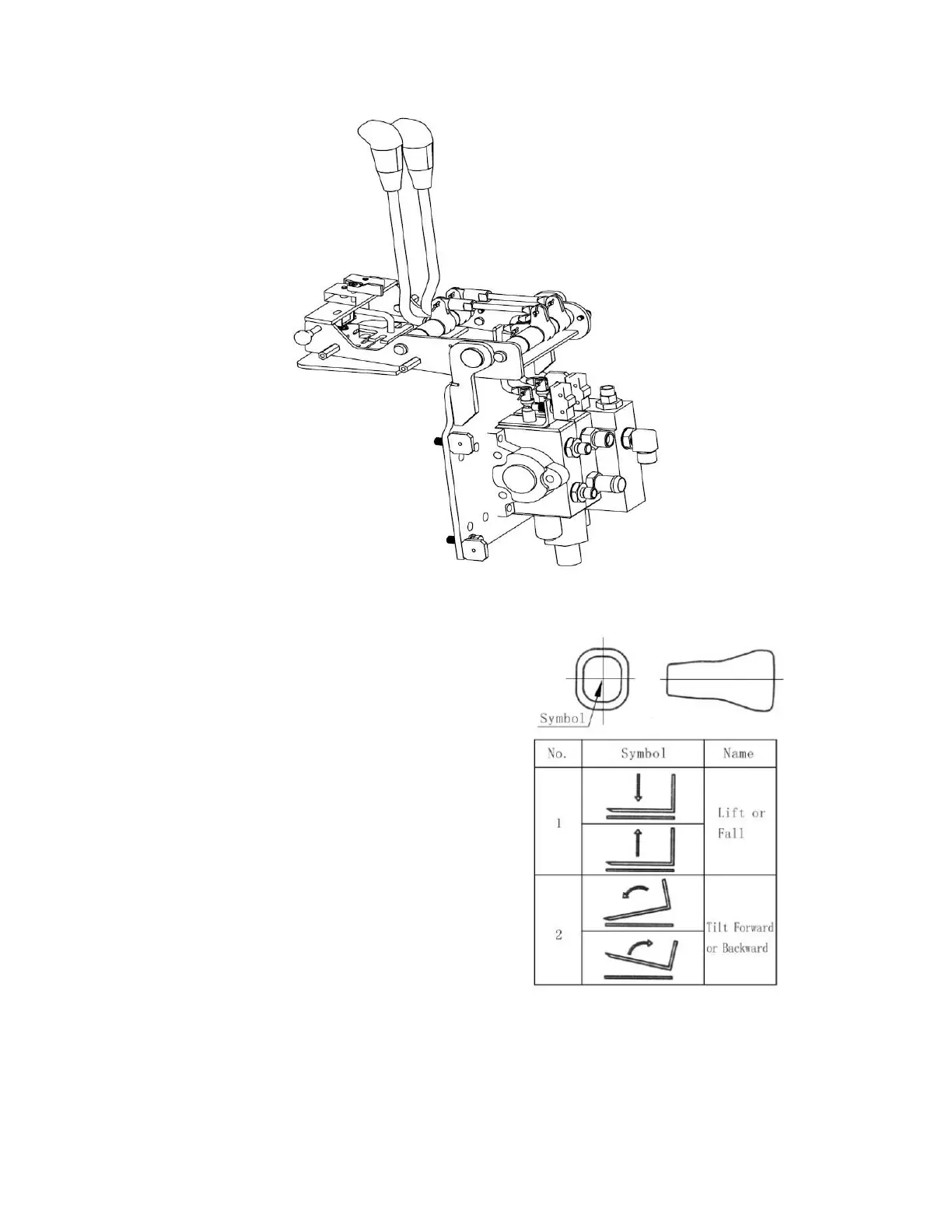

Fig. 5-13 Operation of the control valve
As you see in Fig. 5-14, the mast lift
up when you push the lift lever forward,
the mast fall down when you pull the lift
lever backward. The mast tilt forward
when you push the tilt lever forward, the
mast tilt backward when you pull the tilt
lever backward.
Fig. 5-14 The symbol on the operation
lever
(5) Setting pressure of the control valve (See Fig. 5-15)
