2.2.1 Service brake disassembly

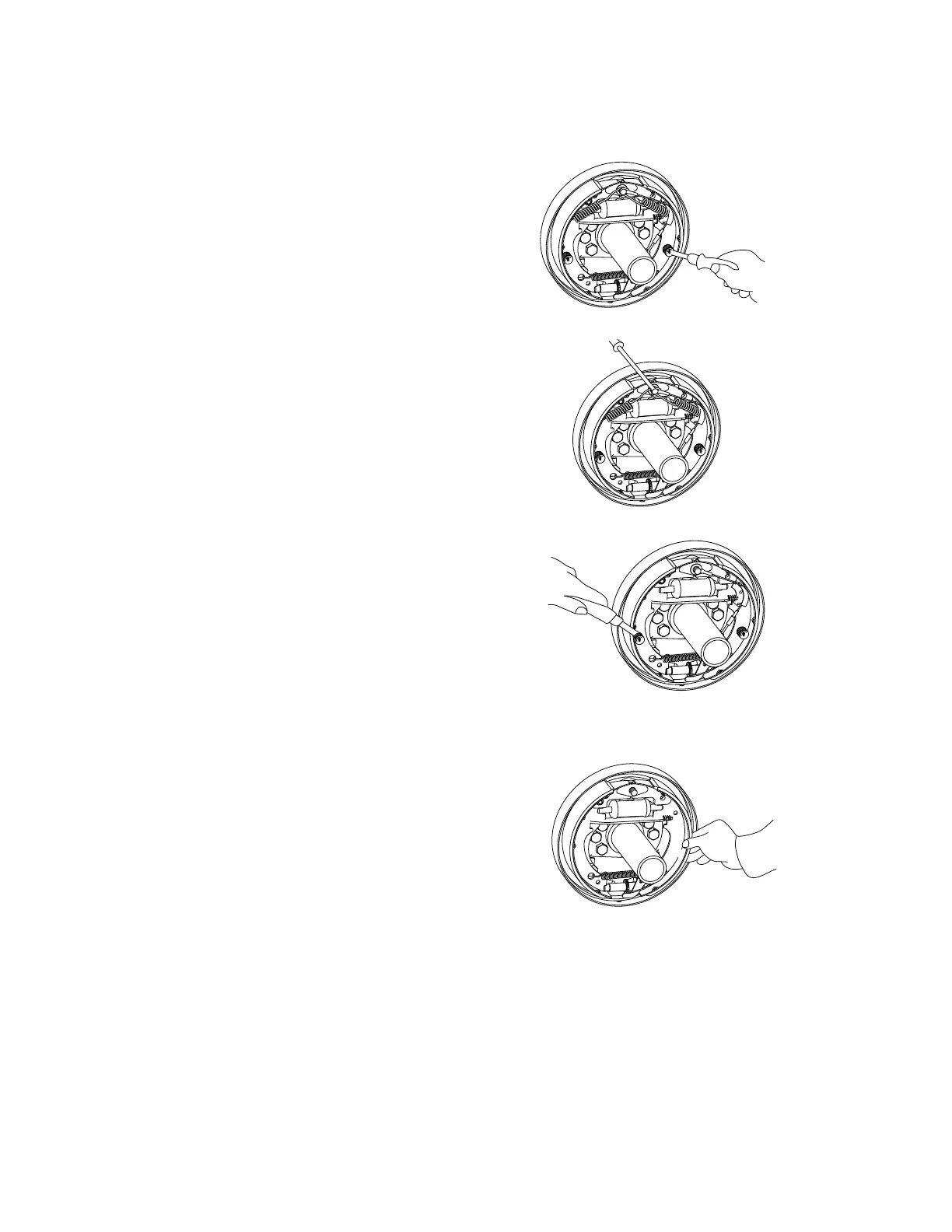

(1) Remove the support pin,
adjusting lever, adjusting device and
spring of secondary shoe. (See Fig. 2-10)
Fig. 2-10
(2) Remove two shoes return
springs. (See Fig.2-11)
Fig. 2-11
(3) Remove the hold-down springs.
(See Fig. 2-12)
Fig. 2-12
(4) Remove the primary and
secondary shoes. At the same time,
remove adjuster and adjusting spring.
(See Fig. 2-13)
Fig. 2-13
