2.2.3 Service brake reassembly
(1) Apply brake fluid to the piston and the piston cup, and reinstall the spring, cup,
the piston and the dust cover in this order.
(2) Install the operating cylinder on the backing plate.
(3) Install the backing plate on the front axle.

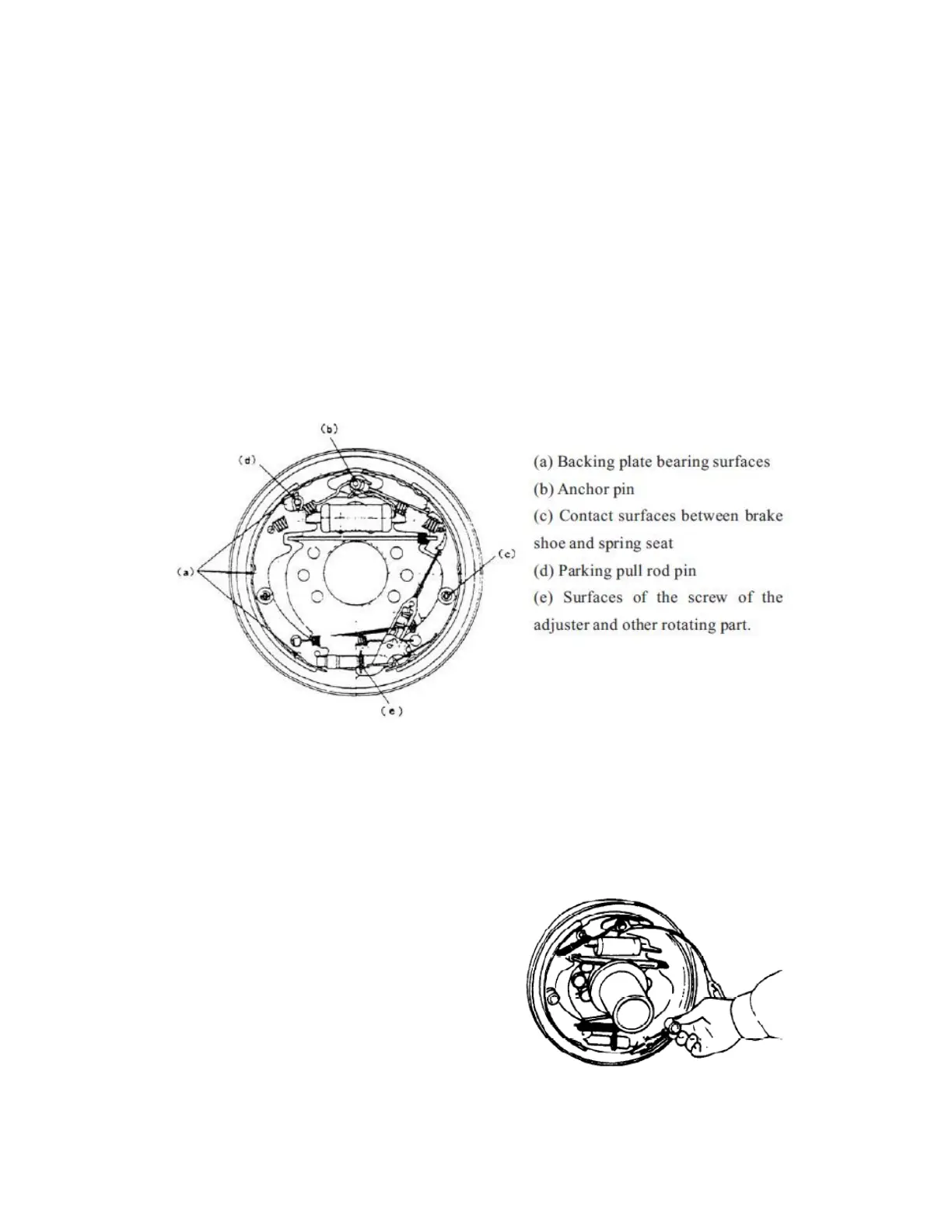

(4) Apply heat-resisting grease on the points indicated in Fig. 2-20, with care not to
contaminate the friction piece with grease.
Fig. 2-20
(5) Install the brake cable assembly on the backing plate with an E-retainer.
(6) Install shoes on the backing plate with hold-down springs.
(7) Put the spring on the parking
push rod then install the rod on the shoe.
(See Fig. 2-21)
Fig. 2-21
