113

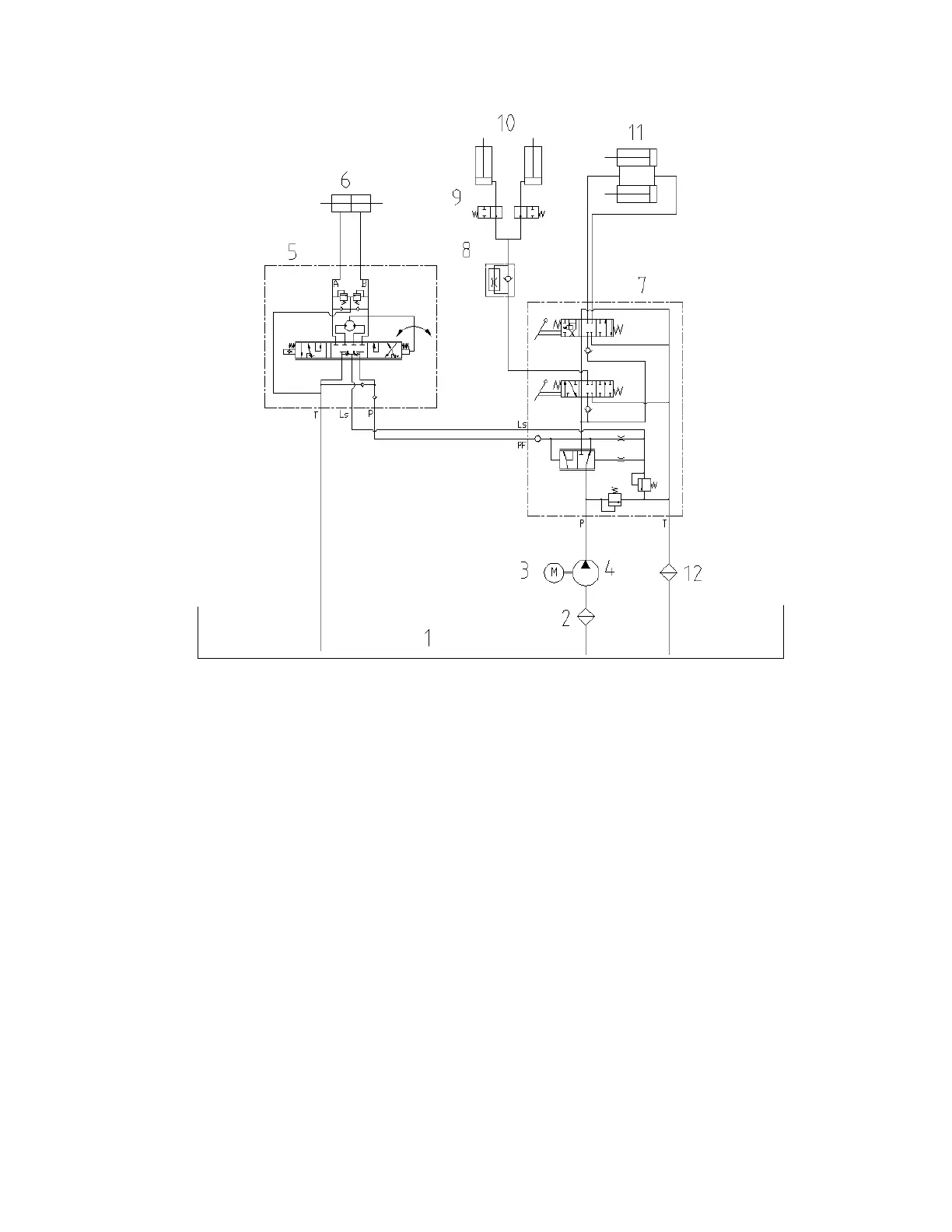

Fig. 5-20 Hydraulic system principle diagram
(1) Oil tank (2) Oil suction filter (3) Pump motor (4) Gear pump
(5) Steering unit (6) Steering cylinder (7) Control valve (8) Flow regulator valve
(9) Cut-off valve (10) Lift cylinder (11) Tilt cylinder (12) Return oil filter
