HELI CQDH13 - Vehicle Components; Handle Operation

5

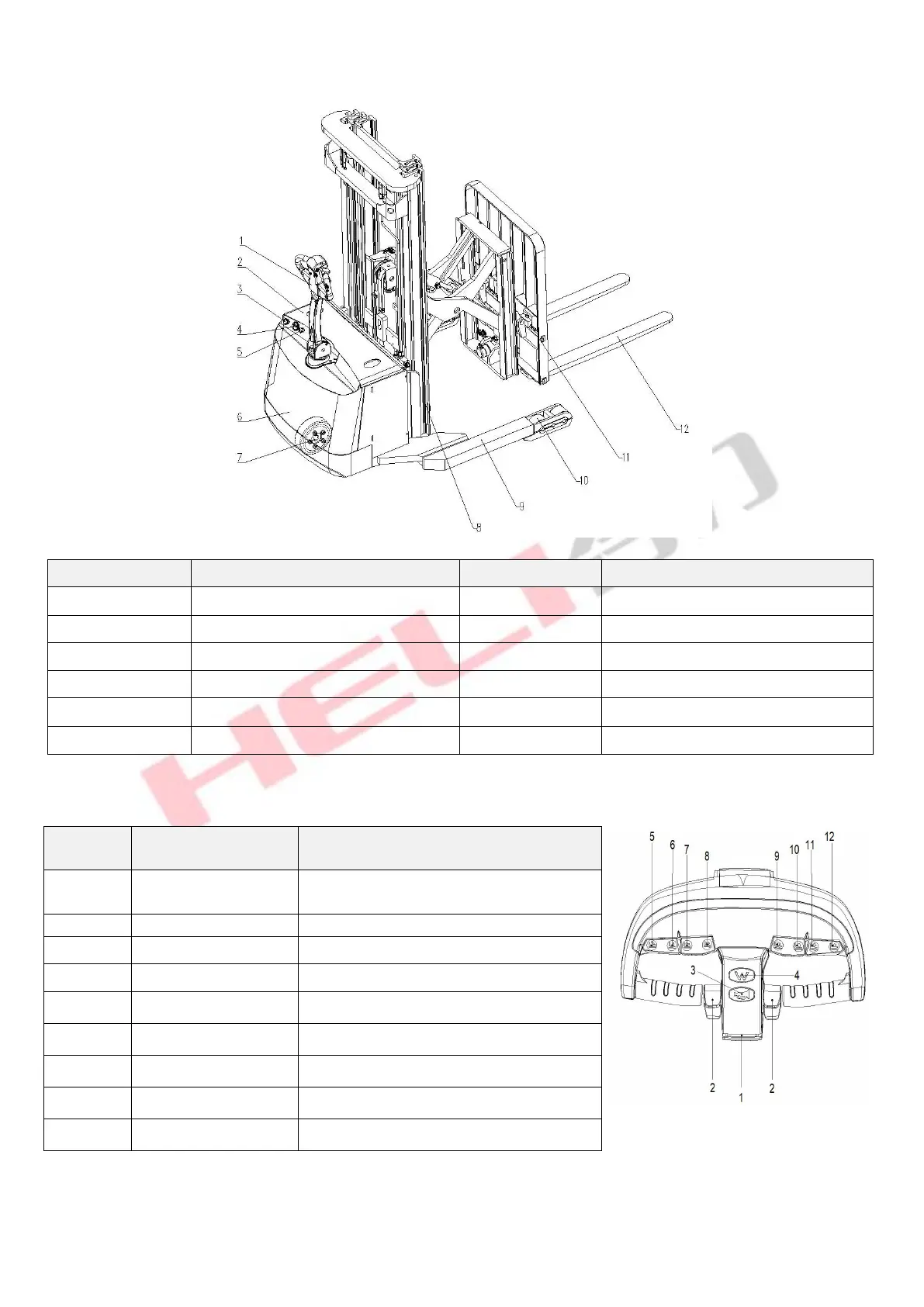

1.2 Vehicle components
1.2.1 Handle operation
Serial number
Name
Serial number
Name
1
Operating handle
7
Drive wheel assembly
2
Cover plate
8
Mast frame
3
BlockEmergency button
9
Frame
4
Battery discharge indicator
10
Load bearing wheel assembly
5
Key switch
11
Backrest
6
Hood
12
Pallet fork
Serial
number
Name
Function
1
Emergency
reverse button
Protect driver function switch
2
Traveling switch
Control driving direction and speed
3
The horn button
Sound the alarm
4
Moon walk button
Makes the vehicle goes straight
5,6
Tilt button
Tilt forks
7,8
Reach button
Reach mast
9
Rising button
Lifting load
10
Decline button
Descending load
11,12
Side-shift button
Side-shift the forks to move
