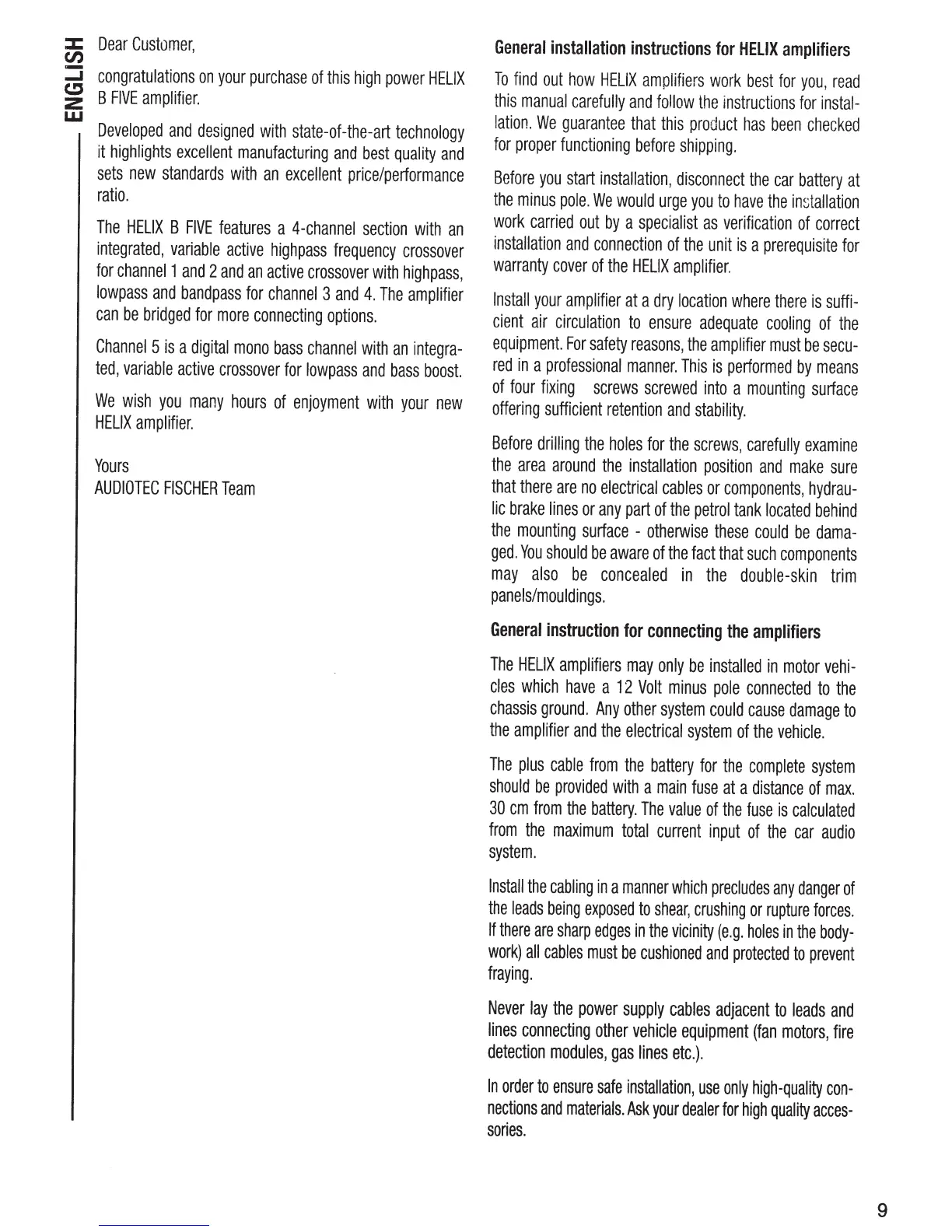

HELIX B Five User Manual

::c
Dear
Customer,
VJ
~
congratulations
on
your
purchase
of
this
high
power
HELIX
~
B
FIVE
amplifier.
w
Developed
and
designed
with
state-of-the-art
technology
it
highlights
excellent
manufacturing
and
best
quality
and
sets
new
standards
with
an
excellent
price/performance
ratio.
The
HELIX
B
FIVE
features
a
4-channel
section
with
an
integrated,
variable
active
highpass
frequency
crossover
for
channel1
and
2
and
an
active
crossover
with
highpass,
lowpass
and
bandpass
for
channel
3
and
4.
The
amplifier
can
be
bridged
for
more
connecting
options.
Channel
5
is
a
digital
mono
bass
channel
with
an
integra-
ted,
variable
active
crossover
for
lowpass
and
bass
boost.
We
wish
you
many
hours
of
enjoyment
with
your
new
HELIX
amplifier.
Yours
AUDIOTEC
FISCHER
Team
General
installation
instructions
for
HELIX
amplifiers
To
find
out
how
HELIX
amplifiers
work
best
for
you,
read
this
manual
carefully
and
follow
the
instructions
for
instal-
lation.
We
guarantee
that
this
product
has
been
checked
for
proper
functioning
before
shipping.
Before
you
start
installation,
disconnect
the
car
battery
at
the
minus
pole.
We
would
urge
you
to
have
the
installation
work
carried
out
by
a
specialist
as
verification
of
correct
installation
and
connection
of
the
unit
is
a
prerequisite
for
warranty
cover
of
the
HELIX
amplifier.
Install
your
amplifier
at
a
dry
location
where
there
is
suffi-
cient
air
circulation
to
ensure
adequate
cooling
of
the
equipment.
For
safety
reasons,
the
amplifier
must
be
secu-
red
in
a
professional
manner.
This
is
performed
by
means
of
four
fixing
screws
screwed
into
a
mounting
surface
offering
sufficient
retention
and
stability.
Before
drilling
the
holes
for
the
screws,
carefully
examine
the
area
around
the
installation
position
and
make
sure
that
there
are
no
electrical
cables
or
components,
hydrau-
lic
brake
lines
or
any
part
of
the
petrol
tank
located
behind
the
mounting
surface
-
otherwise
these
could
be
dama-
ged.
You
should
be
aware
of
the
fact
that
such
components
may
also
be
concealed
in
the
double-skin
trim
panels/mouldings.
General
instruction
for
connecting
the
amplifiers
The
HELIX
amplifiers
may
only
be
installed
in
motor
vehi-
cles
which
have
a
12
Volt
minus
pole
connected
to
the
chassis
ground.
Any
other
system
could
cause
damage
to
the
amplifier
and
the
electrical
system
of
the
vehicle.
The
plus
cable
from
the
battery
for
the
complete
system
should
be
provided
with
a
main
fuse
at
a
distance
of
max.
30
em
from
the
battery.
The
value
of
the
fuse
is
calculated
from
the
maximum
total
current
input
of
the
car
audio
system.
Install
the
cabling
in
a
manner
which
precludes
any
danger
of
the
leads
being
exposed
to
shear,
crushing
or
rupture
forces.
If
there
are
sharp
edges
in
the
vicinity
(e.g.
holes
in
the
body-
work)
all
cables
must
be
cushioned
and
protected
to
prevent
fraying.
Never
lay
the
power
supply
cables
adjacent
to
leads
and
lines
connecting
other
vehicle
equipment
(fan
motors,
fire
detection
modules,
gas
lines
etc.).
In
order
to
ensure
safe
installation,
use
only
high-quality
con-
nections
and
materials.
Ask
your
dealer
for
high
quality
acces-
sories.
