HELIX V TWELVE DSP User Manual

24

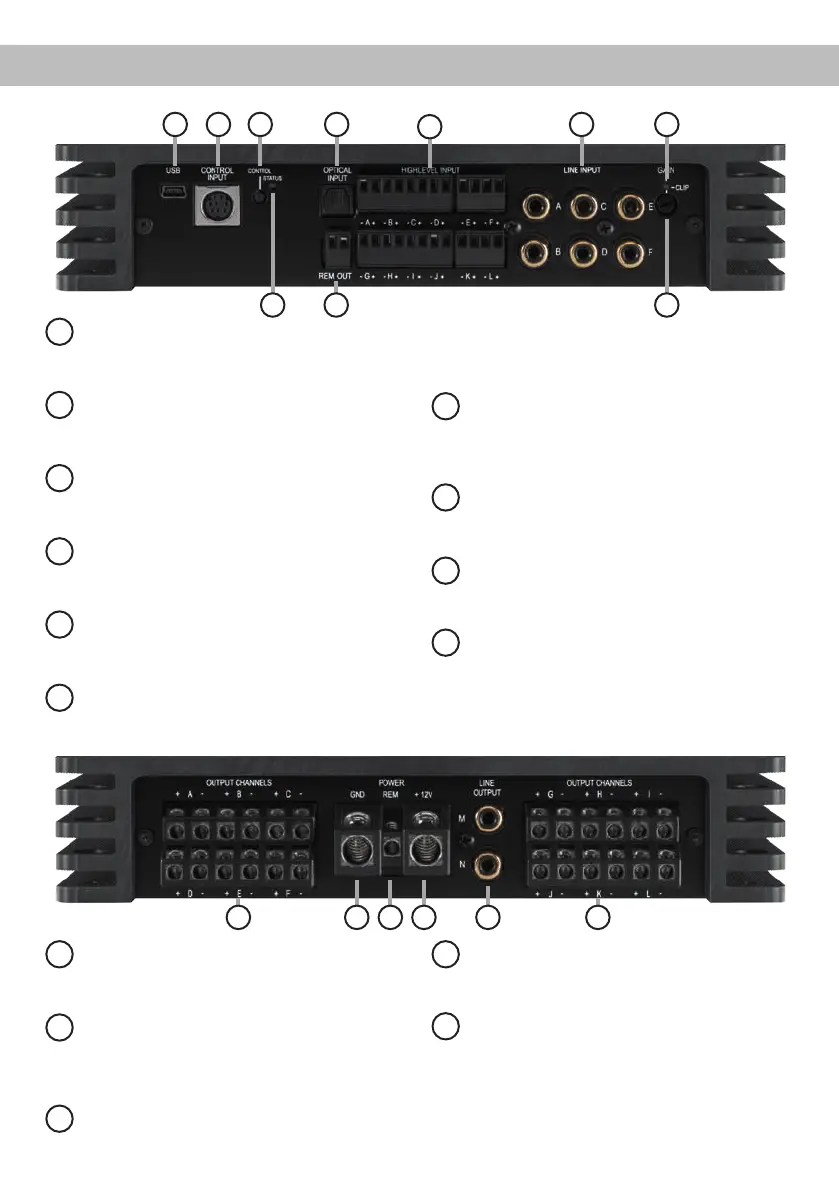

Connectors and control units
11
Output Channels
Speaker outputs for connecting speaker
systems.
12
GND
Connector for the ground cable (negative
terminal of the battery or metal body of the
vehicle)
13
REM
Connector for the remote cable.
14
+12 V
Connector for the +12 V power cable to the
positive terminal of the battery.
15
Line Output
Line outputs for connecting external
ampliers. Make sure that the remote output
(Rem Out) is used to turn on these devices.
11 12 13 14 15 11
1
4
32 5 8 9
1
USB Input
Connects the HELIX V TWELVE DSP to your
PC.
2
Control Input
Multifunction interface for e.g. an optional
remote control or other HELIX accessory.
.
3
Control pushbutton
Use this button to either switch between the
setups or initiate a reset of the device.
4
Status LED
This LED indicates the operating mode of the
amplier and of its memory.
5
Optical Input
Optical input for digital stereo signals (SPDIF
format).
6
Rem Out
The remote output has to be used to turn on /
o󰀨 external ampliers that are connected to
the RCA / Cinch line outputs. Both connec-
tions are internally wired parallel.
7
Highlevel Input
Highlevel speaker inputs for connecting a
factory radio or an aftermarket radio without
lowlevel line outputs.
8
Line Input
RCA / Cinch inputs for connecting
pre-amplier signals.
9
Clipping LED
This LED lights up red if one of the analog
inputs is overdriven.
10
Gain
Control for adjusting the input sensitivity of
the lowlevel Line and Highlevel Inputs.
10
7
6
