HELIX V TWELVE DSP User Manual

33

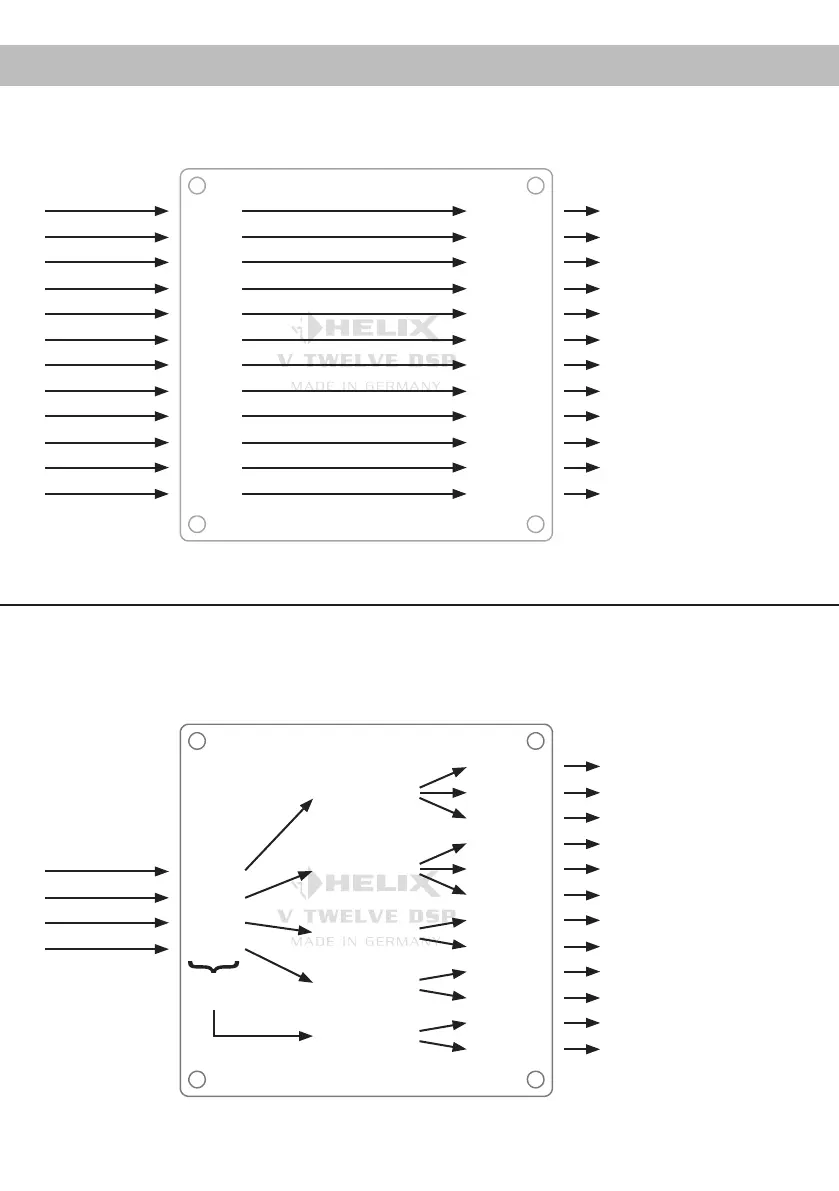

Conguration examples
1 to 1 channel routing (IOR)
Front L High
Front R High
Front L Mid
Front R Mid
Front L Low
Front R Low
Rear L High
Rear R High
Rear L Low
Rear R Low
Subwoofer 1
Subwoofer 2
Front L High – tweeter VL
Front R High – tweeter VR
Front L Mid – midrange VL
Front R Mid – midrange VR
Front L Low – mid-woofer VL
Front R Low –
mid-woofer VR
Rear L High – tweeter HL
Rear R High – tweeter HR
Rear L Low – mid-woofer HL
Rear R Low – mid-woofer HR
Subwoofer 1 – subwoofer
Subwoofer 2 – subwoofer
From OE system
Input A
Input B
Input C
Input D
Input E
Input F
Input G
Input H
Input I
Input J
Input K
Input L
Inputs Outputs
To speakers
Amp Out A
Amp Out B
Amp Out C
Amp Out D
Amp Out E
Amp Out F
Amp Out G
Amp Out H
Amp Out I
Amp Out J
Amp Out K
Amp Out L
Front L Full
Front R Full
Rear L Full
Rear R Full
From OE system
Amp Out A
Amp Out B
Amp Out C
Amp Out D
Amp Out E
Amp Out F
Amp Out G
Amp Out H
Amp Out I
Amp Out J
Amp Out K
Amp Out L
Inputs Outputs
Input A
Input B
Input C
Input D
To speakers
Channel routing with Virtual Channel Processing
Front L Full (A)
Front R Full (B)
Rear L Full (C)
Rear R Full (D)
Subwoofer 1 (K)
Virtual channels
Front L High – tweeter VL
Front R High – tweeter VR
Front L Mid – midrange VL
Front R Mid – midrange VR
Front L Low – mid-woofer VL
Front R Low – mid-woofer VR
Rear L High – tweeter HL
Rear R High – tweeter HR
Rear L Low – mid-woofer HL
Rear R Low – mid-woofer HR
Subwoofer 1 – subwoofer
Subwoofer 2 – subwoofer
Sum signal
A to D
SFX -
Front Processing
SFX -
Front Processing
SFX -
Augmented Bass
Processing
For further applications please contact your HELIX specialist dealer.
