Hella APS-R - Hardware Interface: Ethernet

4.2 Hardware interface specifications
4.2.1
Ethernet
Pin no. Name Description
1 TD+ Transmit data +
2 RD+ Receive data +
3 TD- Transmit data -
4 RD- Receive data -
5 SHD Shield
Compatibility of APS-R-PoE and PoE switches
APS-R-PoE
Port M12 D-coded
(4 pins)
PoE Switch
Port M12 D-coded (4pins)
Port M12 X-coded (8pins)
Port RJ45
"Mode A", "Midspan",
"Phantom Feed"
Port RJ45
"Mode B", "Endspan",
"Spare wire feed"
Pin allocation
1
2
3
4
5

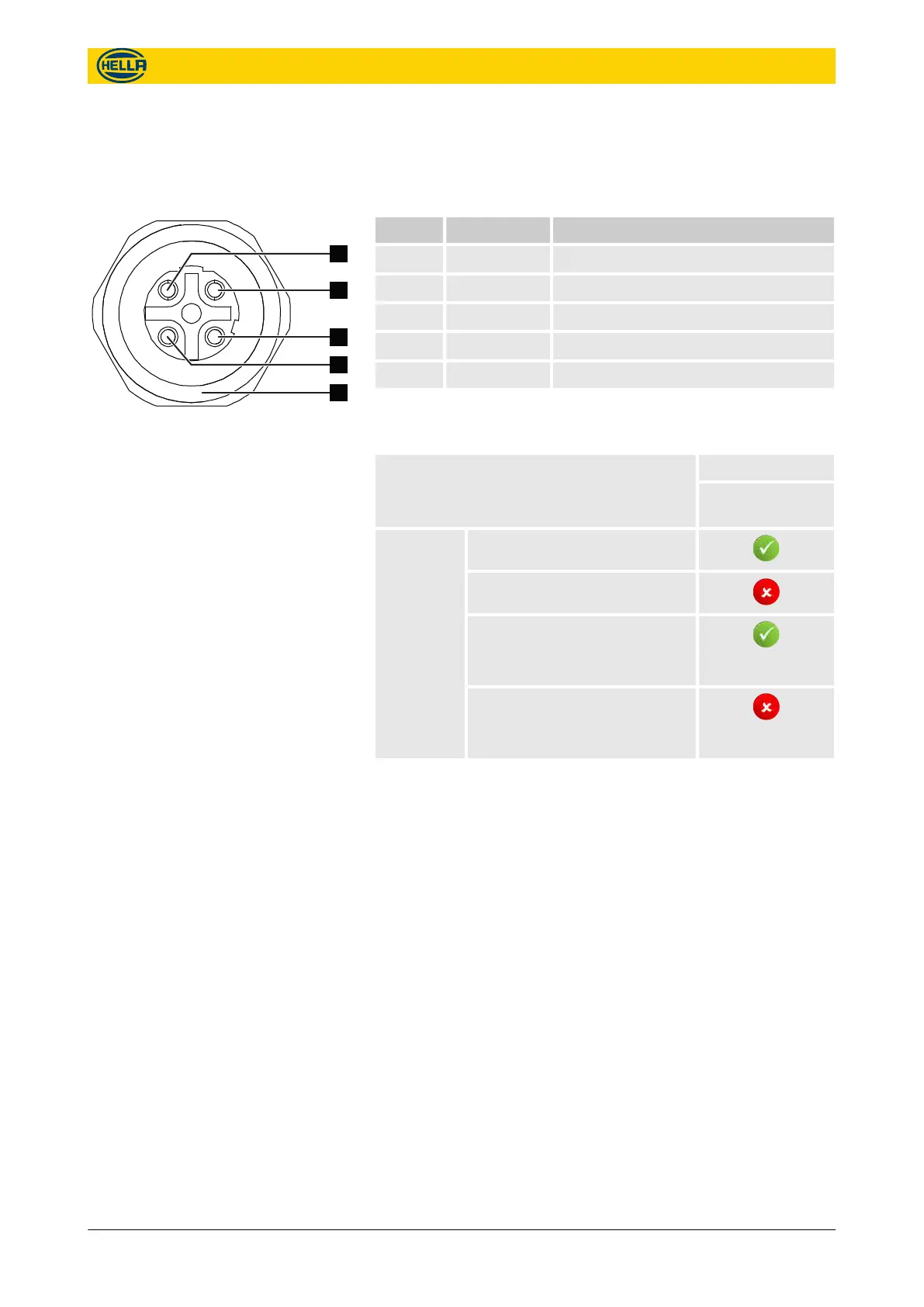

Fig. 12: M12 Ethernet interface
Technical data
Hardware interface specifications > Ethernet
