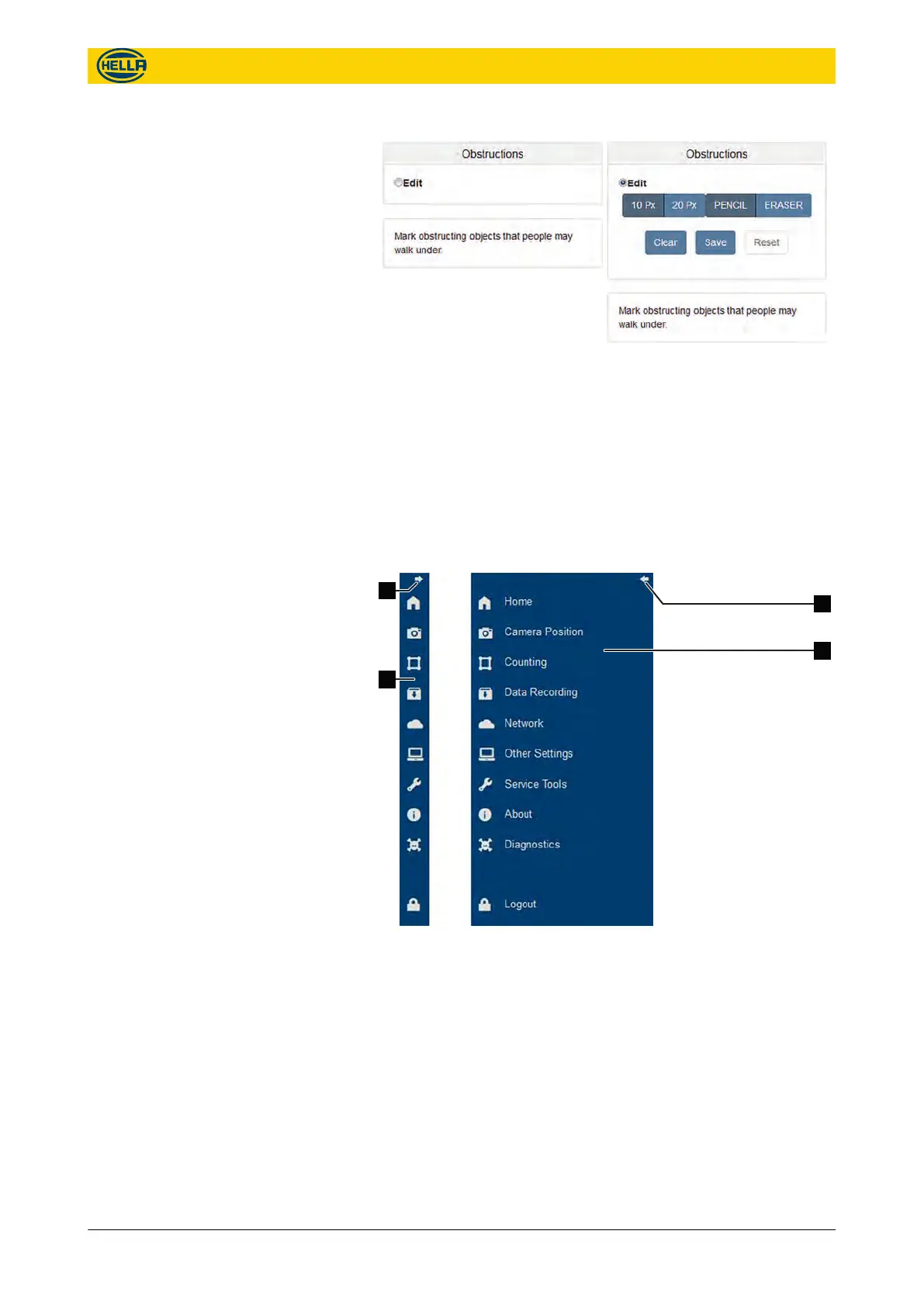

Fig. 27: Topic block Obstructions before and after activation Edit
The information shown in a topic block correspond to the activation
of options. Topic blocks contains input fields, activation buttons
and buttons for saving data or to revert to previous settings.
The user interface has a navigation bar on the left. Use the “arrow”
icon to expand or collapse the navigation bar.
Select an icon to go to a certain configuration category. Select the
“Home” icon to go to the “Start Page” (see Fig. 24
).
Fig. 28: Navigation bar
1 Collapse icon
2 Expanded view
3 Collapsed view
4 Expand icon
Navigation Bar
Configuration
Basic operations
09.06.2017 31
