Henden Mineral and Salt Chlorinator Installation Manual
HENDEN INSTALLATION & OWNERS MANUAL | 5
1. INSTALLATION INSTRUCTIONS
1.1 Installing the Power Supply
Select a convenient well-ventilated location within one
metre of filter equipment and mount the power supply
vertically onto a post or wall 1.5 metres above ground
level. Australian Standards requires that the power supply
shall not be located within 3 meters of the pool water.
Plug power supply into a suitable weatherproof outlet and
plug pump into the power outlet of the power supply unit.
The unit must be kept away from acid and other chemical
storage areas. Acid and chemical vapours will corrode the
electronics inside the unit.
It must also be kept away from heat sources. Good
ventilation is necessary for correct operation.
Two self-tapping screws and wall plugs have been provided
for fast and simple installation.
Use a 6mm masonry drill bit when fitting power supply to
a brick or concrete wall. When mounting to a post drill pilot
holes and fit screws provided. Once screws are in position
simply hang sanitiser via bracket on back of unit.

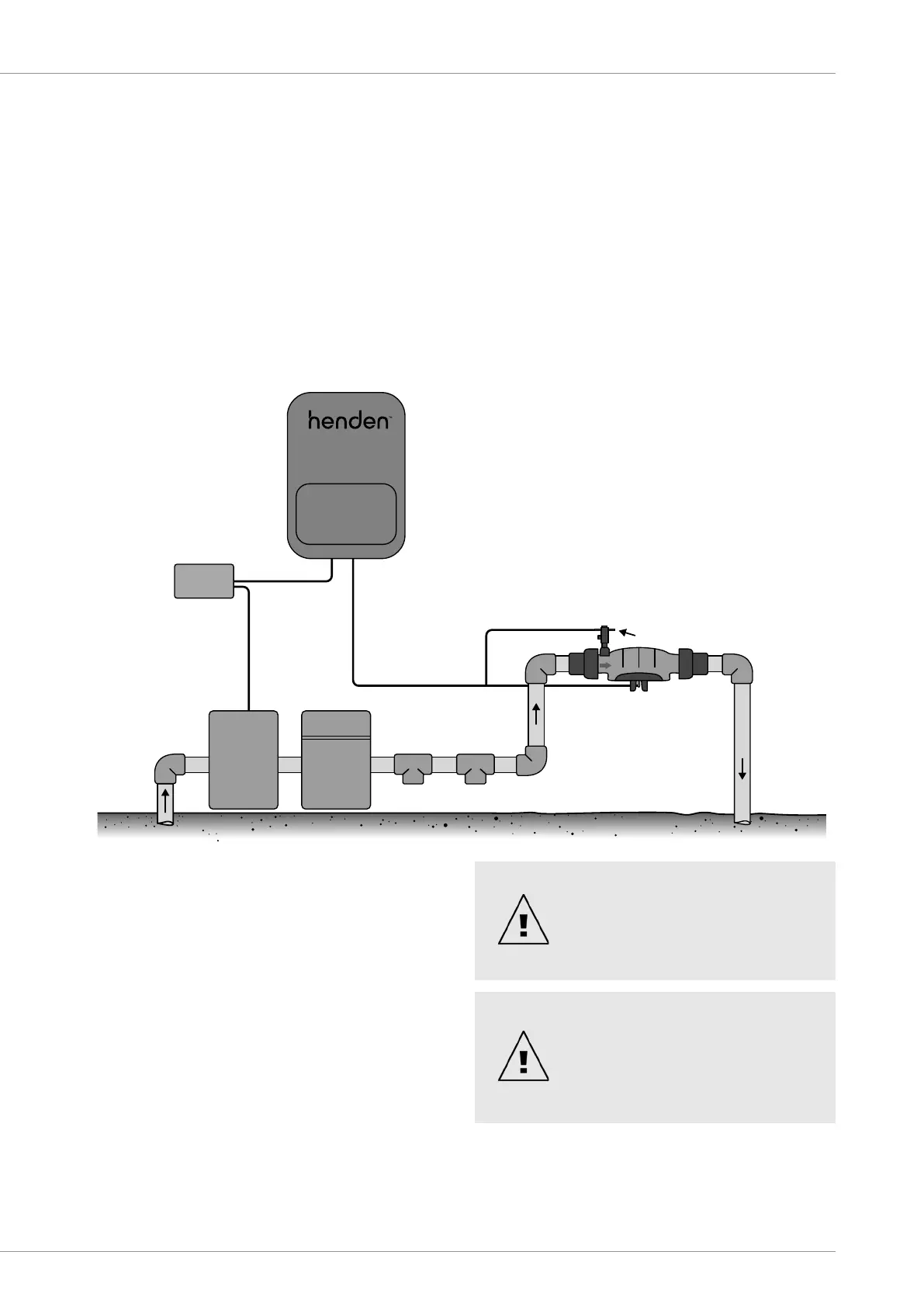

IMPORTANT This diagram is intended
to conform with SPASA for the safe
operation of salt sanitisers. Any
deviation is at the installer’s risk and
may void the manufacturer’s warranty.
NOTE The cell must be fitted to allow
for easy removal and cleaning, and
positioned after all accessories such
as heater or pool cleaner, but before
it divides if there is more than one
return to pool line.
Return to pool lineSuction Line
PUMP FILTER
ACCESSORIES
IN-LINE CELL
FLOW SWITCH
POWER SUPPLY
240V
To Next Page
