Henden Mineral and Salt Chlorinator Installation Manual
6 | HENDEN INSTALLATION & OWNERS MANUAL

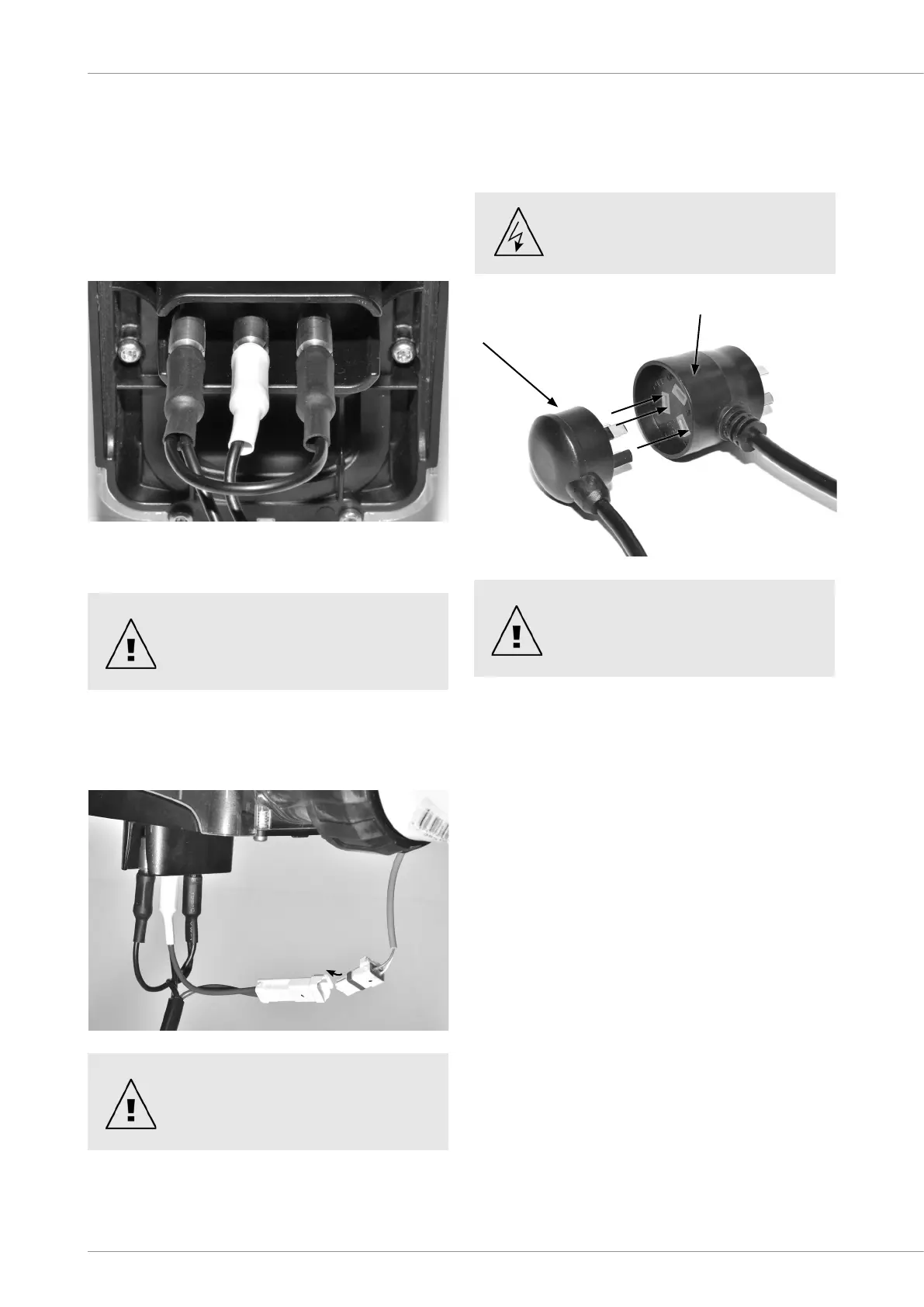

1.2 Connecting the In-line Electrolytic Cell to
the Power Supply
The Henden Salt Water Chlorinator uses a reverse polarity
In-Line Electrolytic Cell for low maintenance operation.
The Henden Power Supply is fitted with a flexible lead
terminated with push on brass connectors.
These must be correctly fitted to the connections on the
cell. Fit black connectors to the outer titanium rods. Fit
the white connector to the middle titanium rod as per
illustration below.
NOTE: The Henden cell is supplied with a paddle type flow
switch, which is to be installed on the cell as shown in the
diagram on page 6.
1.3 Connecting the Flow Switch to the Power
Supply
Join the connector on the flow switch and the connector
on the cell cable together. They will clip together.
1.4 Connecting the Filter Circulation Pump to
the Power Supply
Insert the pool pump’s 3 pin plug into the 3 pin socket
located on the back of the chlorinator’s power supply plug.
See diagram on following page.
IMPORTANT The flow switch must be
mounted with the highlighted arrow
on top of the switch pointing in the
direction of flow.
IMPORTANT Always fit the cell ABOVE
the highest point in the filtration
system. This therefore needs to be
higher than the filter.
Do not use a double adaptor to
connect more than one pump – it
can cause overload to the system
and could void your warranty.
NOTE Filter circulation pump current
draw should not exceed 8 Amps.
Sanitiser’s plug
and socket
Pool pump’s
3 pin plug
To Next Page
