HER CHEE GTC-50 - Page 72

ADLY MOTO 11-4
REAR WHEEL / SUSPENSION / BRAKE

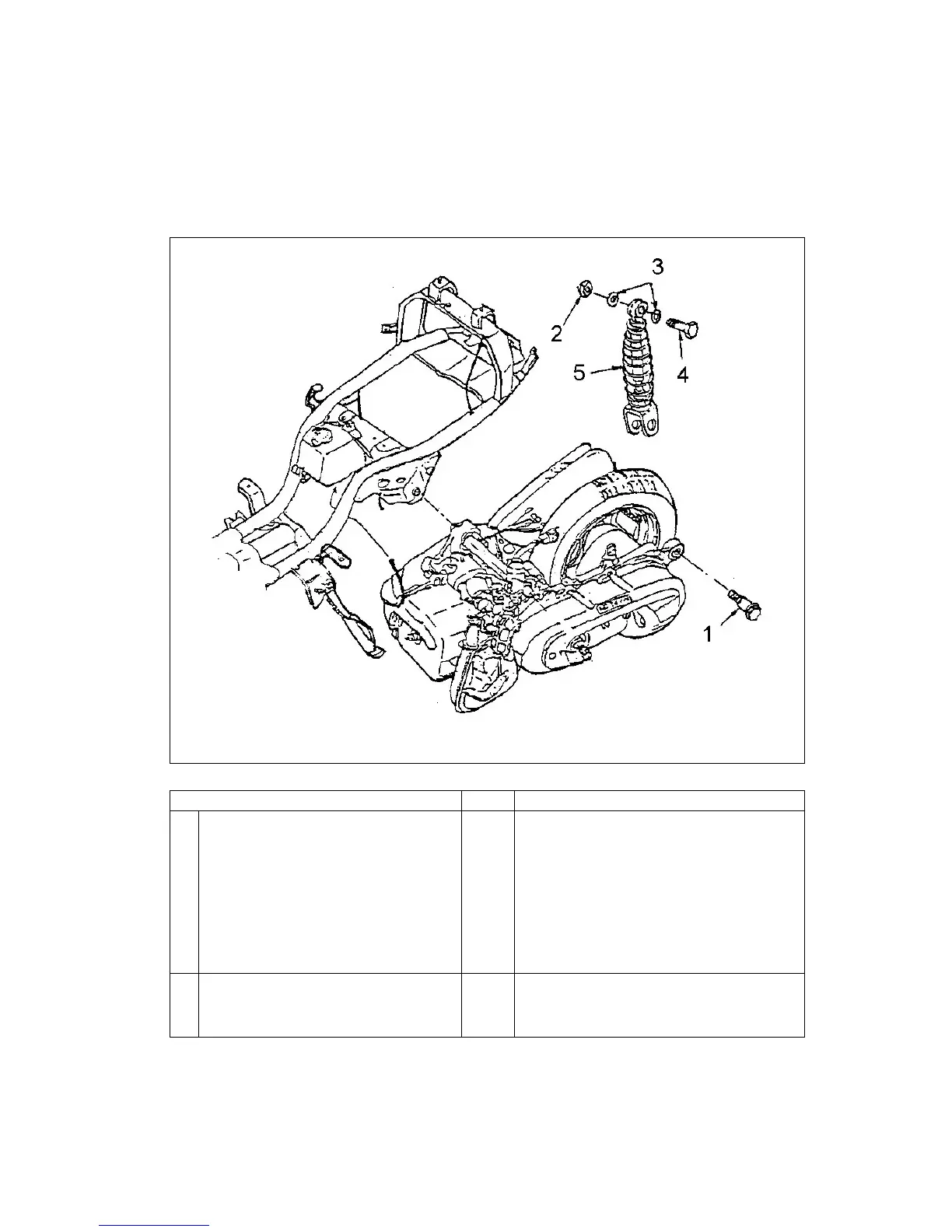

Disassembly of Rear Cushion
Operation / Parts name Q’ty Remarks
1
2
3
4
5
Disassembly
Hex washer face bolt
Nut (nylon insert)
Plain washer
Hex bolt
Rear cushion
1
2
2
1
1
Assembly
5→1
• Assembly with sequence in reverse of
disassembly.
