ADLY MOTO 11-3
REAR WHEEL / SUSPENSION / BRAKE

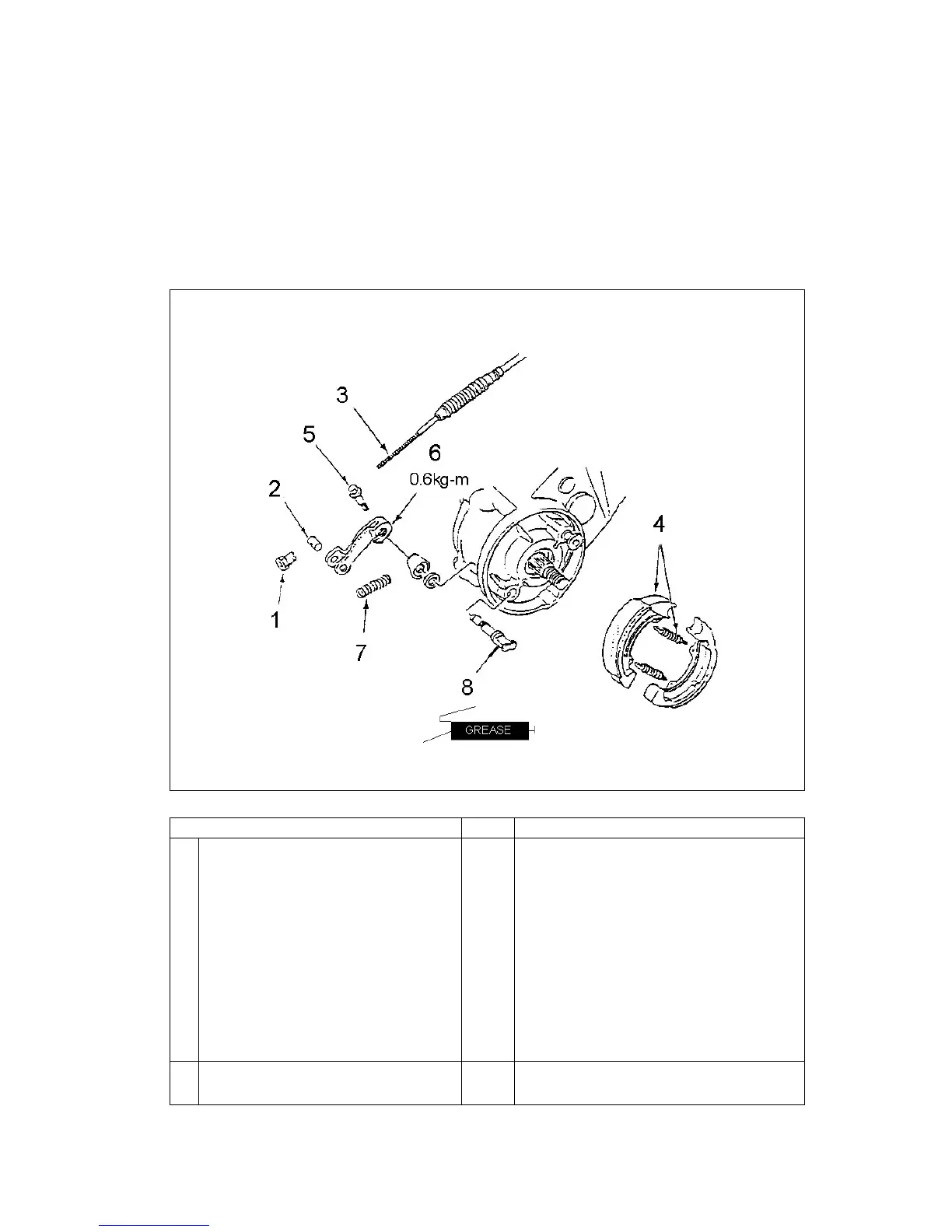

Disassembly / Assembly of Rear Brake
‧Disassembly of Rear Wheel.
Operation / Parts name Q’ty Remarks
1
2
3
4
5
6
7
8
Disassembly
Adjusted nut of rear brake
Rear brake fixture
Rear brake cable
shoe/shoe strain spring of rear brake
Hex washer face bolt
Rear brake arm
Reset spring
Brake cam shaft
1
1
1
2/2
1
1
1
1
Assembly
8→1
• Assembly with sequence in reverse of
disassembly.
To Next Page
