HER CHEE GTC-50 - Page 76

ADLY MOTO 12-4
ELECTRICAL DEVICE

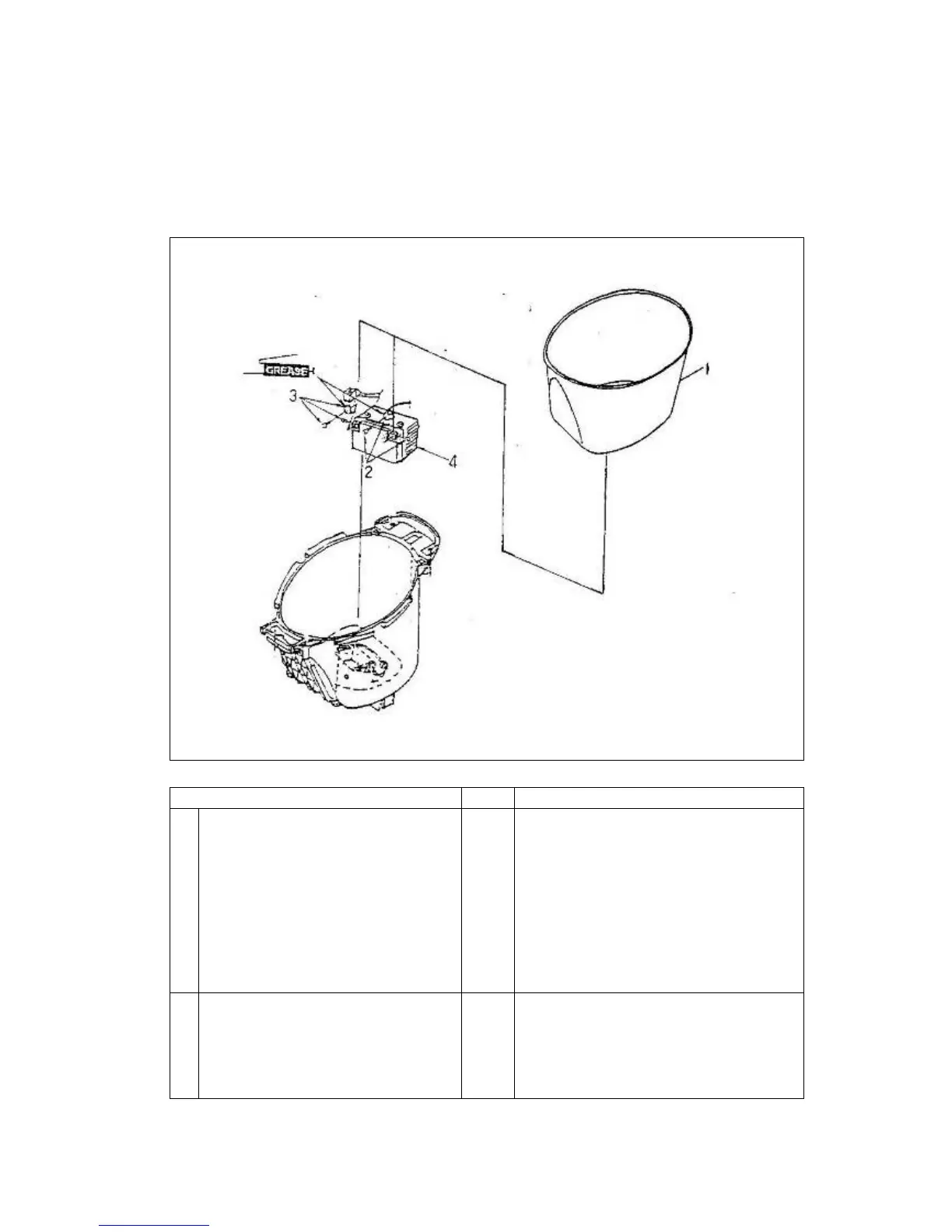

Disassembly Of Battery
Operation / Parts name Q’ty Remarks
1
2
3
4
5
6
Disassembly
Helmet box mat
Battery  end
Battery  end
Self-tapping screw
Battery cover
Battery
1
1
1
2
1
1
WARRNING: Disassembly battery
from – end to  end.
2
Assembly
6→1
Battery terminal
• Assembling with sequence in reverse
of disassembly.
WARRNING:
Connect  end first , next – end ,cover
 with cap.
