Page 8 For technical questions, please call 1-888-866-5797. Item 57673
SETUP - BEFORE USE
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off and unplug the tool from its electrical outlet before performing any
procedure in this section.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.

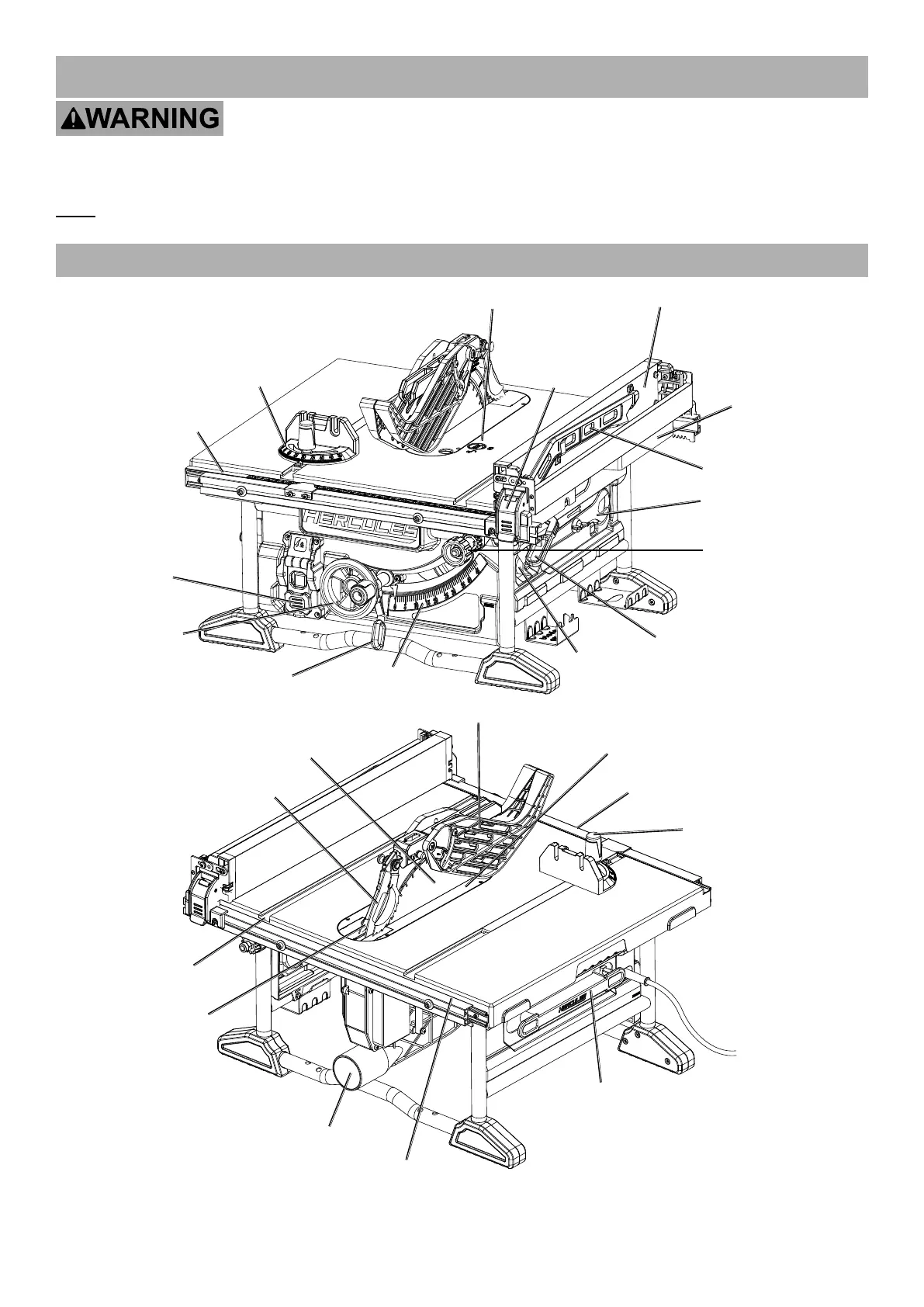

Functional Description
Blade Guard
Saw Blade
Riving
Knife
Miter Gauge
Groove
Anti-kickback
Pawls
Dust Extraction
Port
Rear Rail
Cable Storage
Front Rail
Table
Insert
Miter Gauge
Locking Knob
Insert Lock
Rip Fence
Lock Lever
Rip Fence
Miter Gauge
Scale
Switch
Blade Wrench
Storage
Push Stick
Rail Lock Lever
Bevel Scale
Bevel Lock
Handle
Height/Bevel
Adjustment
Handwheel
Pawl
Storage
Adjusting
Knob
Extension Table
