1. INTRODUCTION
Thank you for purchasing the Hercules WAE wireless speaker. With your speaker, you can listen to
your music from your iOS device or from any other device featuring Bluetooth® wireless technology,
and move around with your music in total freedom.
2. SPEAKER OVERVIEW

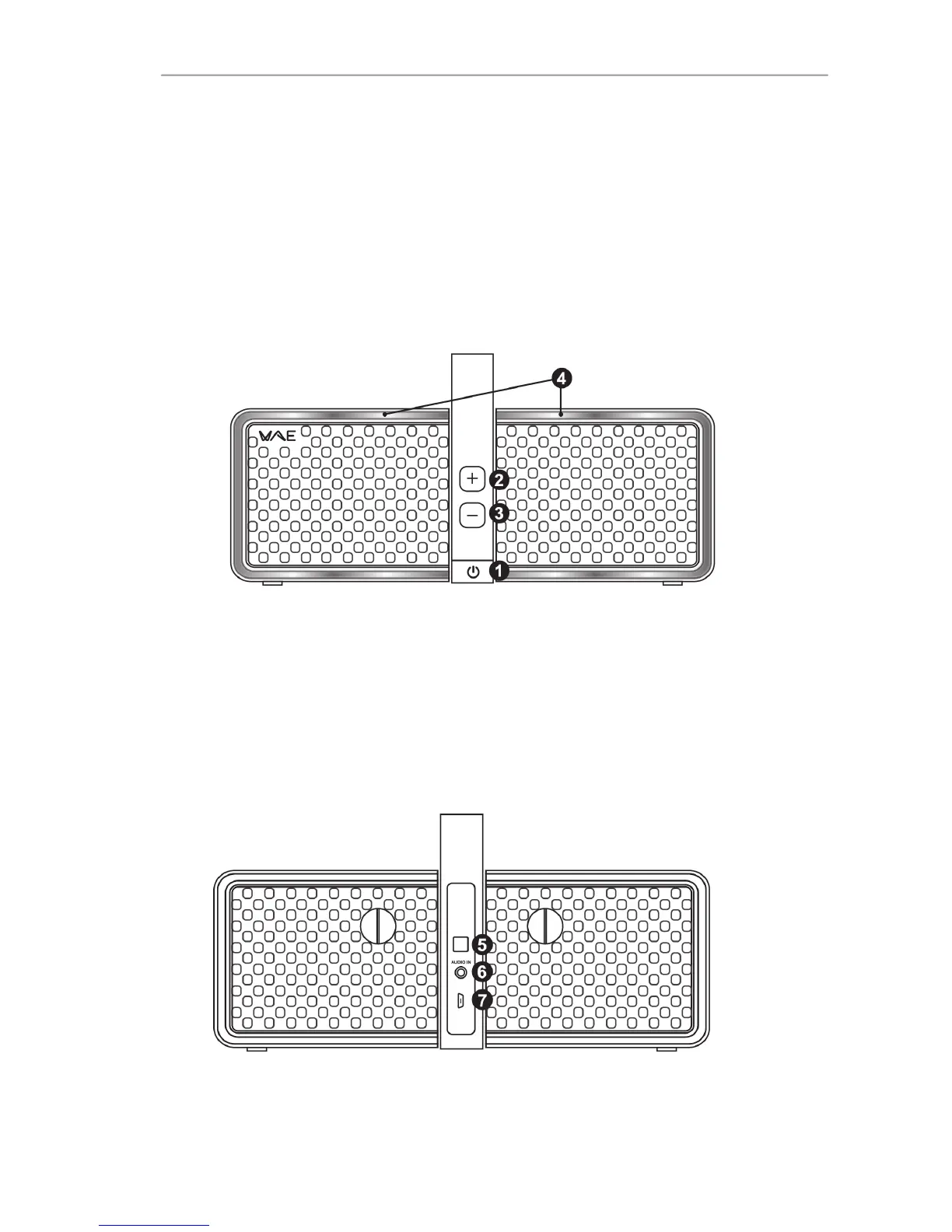

2.1. Overview of the speaker’s front face
The speaker features the following buttons and indicators on its front face:
(1) On/Off button and battery status indicator:
- Stays lit up when speaker is powered on
- Flashes when speaker is charging
-
Flashes quickly when battery level is less than
20%
- Off when speaker is powered off
(2) Volume + button
(3) Volume - button
(4) Light guide – connection status indicator:
- Blue: Bluetooth® function. Flashing quickly
= pairing mode / flashing = not connected /
lit up = connected
- Green: auxiliary input connected
2.2. Overview of the speaker’s connectors
The speaker features the following buttons and connectors on its back face:
(5) Bluetooth® pairing button
(6) Auxiliary input connector
(7) Power adapter connector
