HermanMiller Renew
TM
Table (Height Adjustable - Electrical) Assembl
y
Instructions2
Part no. 1bc4vh rev E.
WARNING - Risk of Electric Shock – Connect this furnishing to a properly grounded outlet
only. See Grounding Instructions.
For loading always put heavier items in the center and distribute the load.
Maximum load rating is 120 lbs.
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a quali ed electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the product.
if it will not  t the outlet, have a proper outlet installed by a quali ed electrician.
This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like
the plug illustrated in Sketch A. Make sure that the product is connected to an outlet having
the same con guration as the plug. No adapter should be used with this product.

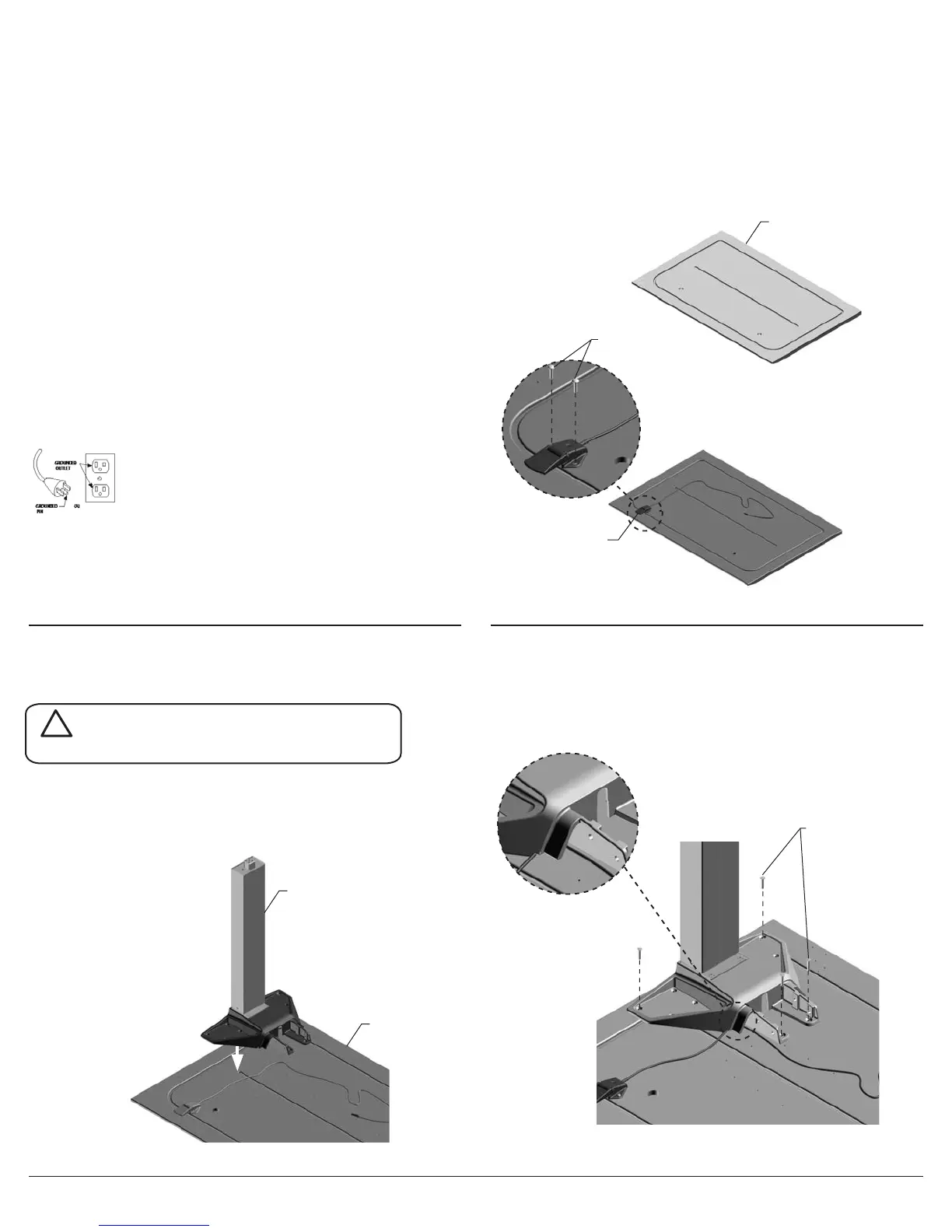

Step 1
A
W
Switch Installation
1.1 Lay the Surface (A) upside down.
1.2 Pick the sides on the surface top where the power switch needs to be installed. Holes are
pre-drilled on either side of the work surface. Install switch using Tapping Screws (Y).
K
Step 2
2.1 For C-leg  nd the qty(4) pre-drilled holes located on more towards back of the work surface.
For T-leg use the center pre-drilled holes.
2.2 Ensure switch cable is properly positioned under top casting.
T & C Leg Installation (T & C options)
B
A
2.3 Install the Tapping Screws (S) to the pre-drilled holes in leg in the order as shown in  gure
below.
S
WARNING -RISK OF TABLE TIPPING-
Make sure C legs are placed in correct location.
!
