The stop lamp switch (1) must be adjusted so
that stop lamp will glow when rear brake is
applied. Rear brake free play (page 45)
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows:
2. Turn the adjusting nut (2) to position stop
lamp switch at a point where the stop
lamp will glow just before the brake
pedal is depressed to the limit of its free
play. Turn the adjusting nut in direction
(A) to advance switch timing or in
direction (B) to retard switch timing.
1. Turn the ignition switch to the “ON”
position.

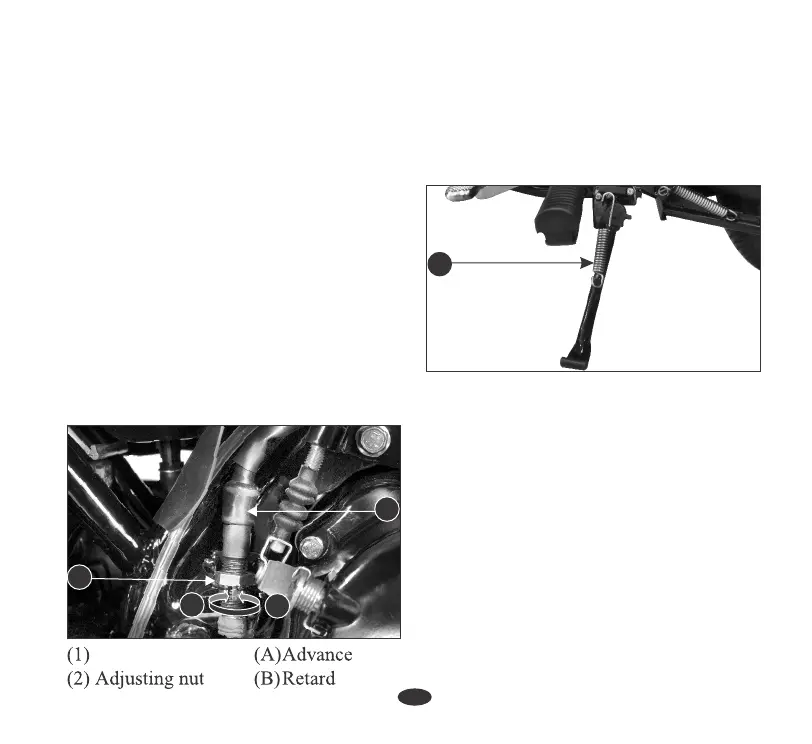

STOP LAMP SWITCH
Stop lamp switch
SIDE STAND
Check the side stand for proper function.
1. Check the spring (1) for damage or loss
of tension and the side stand assembly
for free movement.
(1) Side stand spring
4. If the side stand indicator (2) does not
operate as described in steps 2 or 3,
please visit your Authorised Hero
MotoCorp workshop.
2. Check whether the side stand indicator
(2) glows when vehicle is parked on
side stand.
3. While the vehicle is removed from side
stand, the side stand indicator (2)
should not glow.
