H8 DSP
Digital Interface Processor
User’s manual
1: Violet RR+
2: Gray FR+
3: White FL+
4: Green RL+
5: Red REM IN
6: Pink MEM A
7: Brown OPTICAL SELECT
8: N. C.
9: Blue REM OUT
10: Cyan (light blue) KEY MEM
11: Violet RR-
12: Gray FR-
13: White FL-
14: Green RL-
15: Red REM IN
16: Pink MEM B
17: Orange AUX SELECT
18: Yellow +BATT 12V
19: N.C.
20: Black -BATT
1: RR+ (Violet)(Violet) RR- :11
(Gray) FR- :12
(White) FL- :13
(Green) RL- :14
(Red) REM IN :15
(Pink) MEM B :16
(Orange) AUX SELECT :17
(Yellow) +BATT :18
(Black) -BATT :20
N.C. :19
2: FR+ (Gray)
3: FL+ (White)
4: RL+ (Green)
5: REM IN (Red)
6: MEM A (Pink)
7: OPTICAL SELECT (Brown)
8: N.C.
9: REM OUT (Blue)
10: KEY MEM (Cyan)
CABLE SIDE (REAR VIEW)
4
5

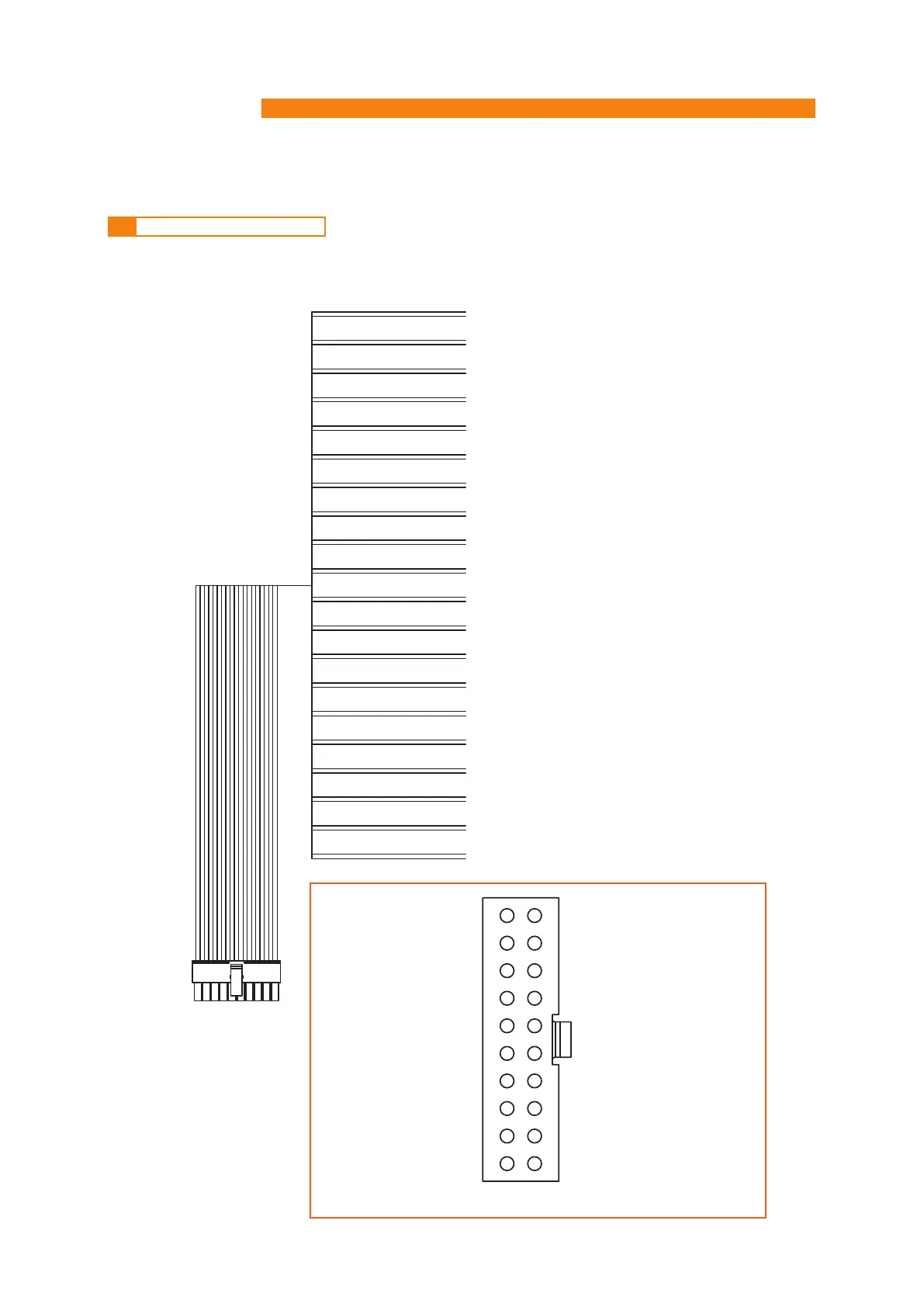

The H8 DSP features a 20 multipolar interface for input signals, power supply and various control connections.
4. CONNECTION PANELS – DESCRIPTION
4.1 MULTIPOLAR CONNECTOR
TOP VIEW
