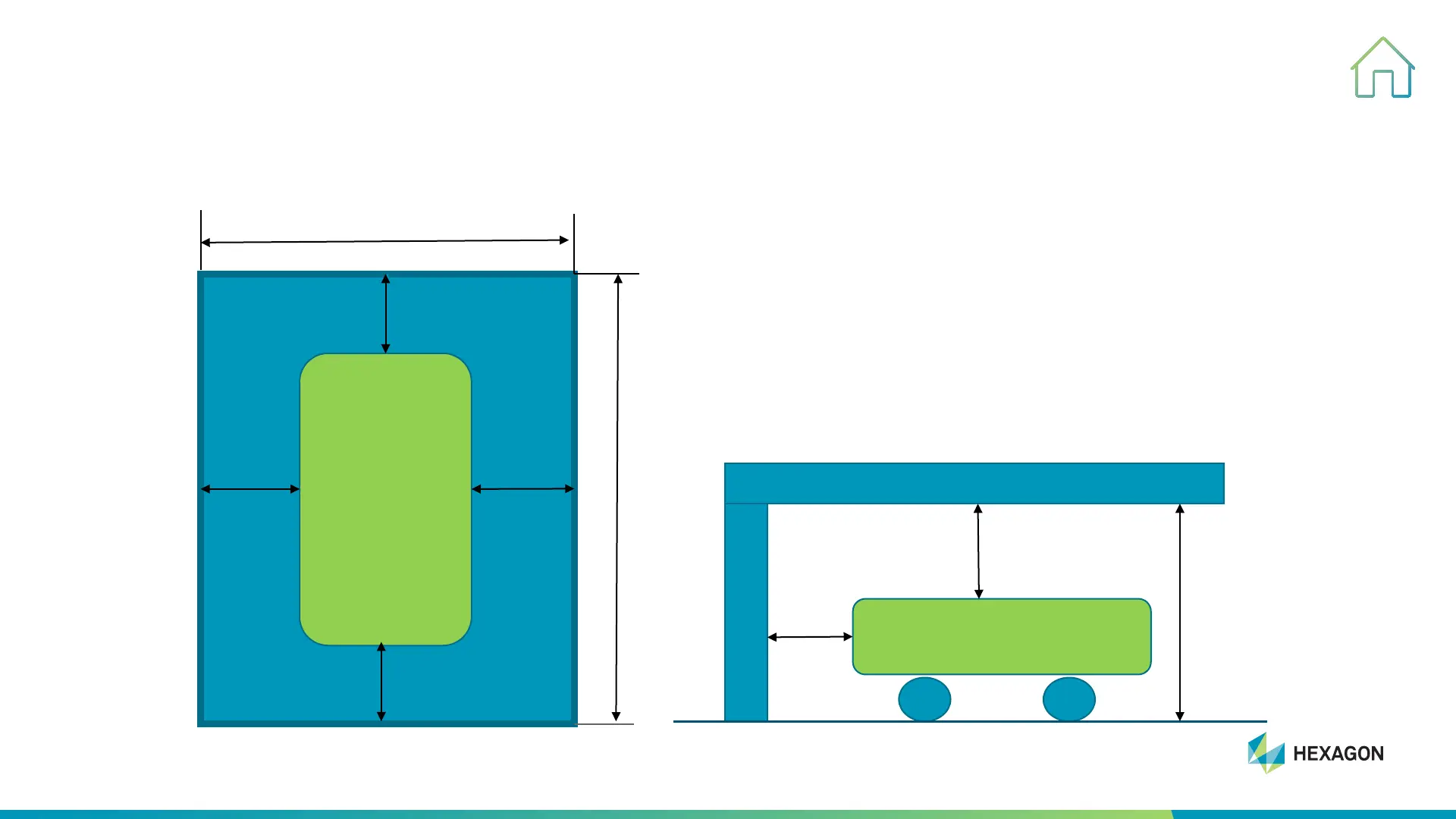

Pre-Calibrated Room Dimension Requirements
3. TARGET-FREE SCANNING SETUP
Demo Car
Bird’s-eye View
Demo Car
Side View
Eg: Dimension of Demo Car:
X=5m, Y=2m, Z=1.7m
Pre-Calibrated Room Dimension Suggestion:
• W=L2+Y+L3=3.8m
• L=L1+X+L4=6.8m
• H=Z+L5=2.6m
Note: L1=L2=L3=L4=L5=0.9m
L1
L2
L3
L5
L1
Entrance
Entrance
W
L
H
L4
Best tracking distance (from MARVELSCAN to Encoded
target): 1~3m, below example is only for your reference.
