Target Collection Guidance--Operation
3. TARGET-FREE SCANNING SETUP

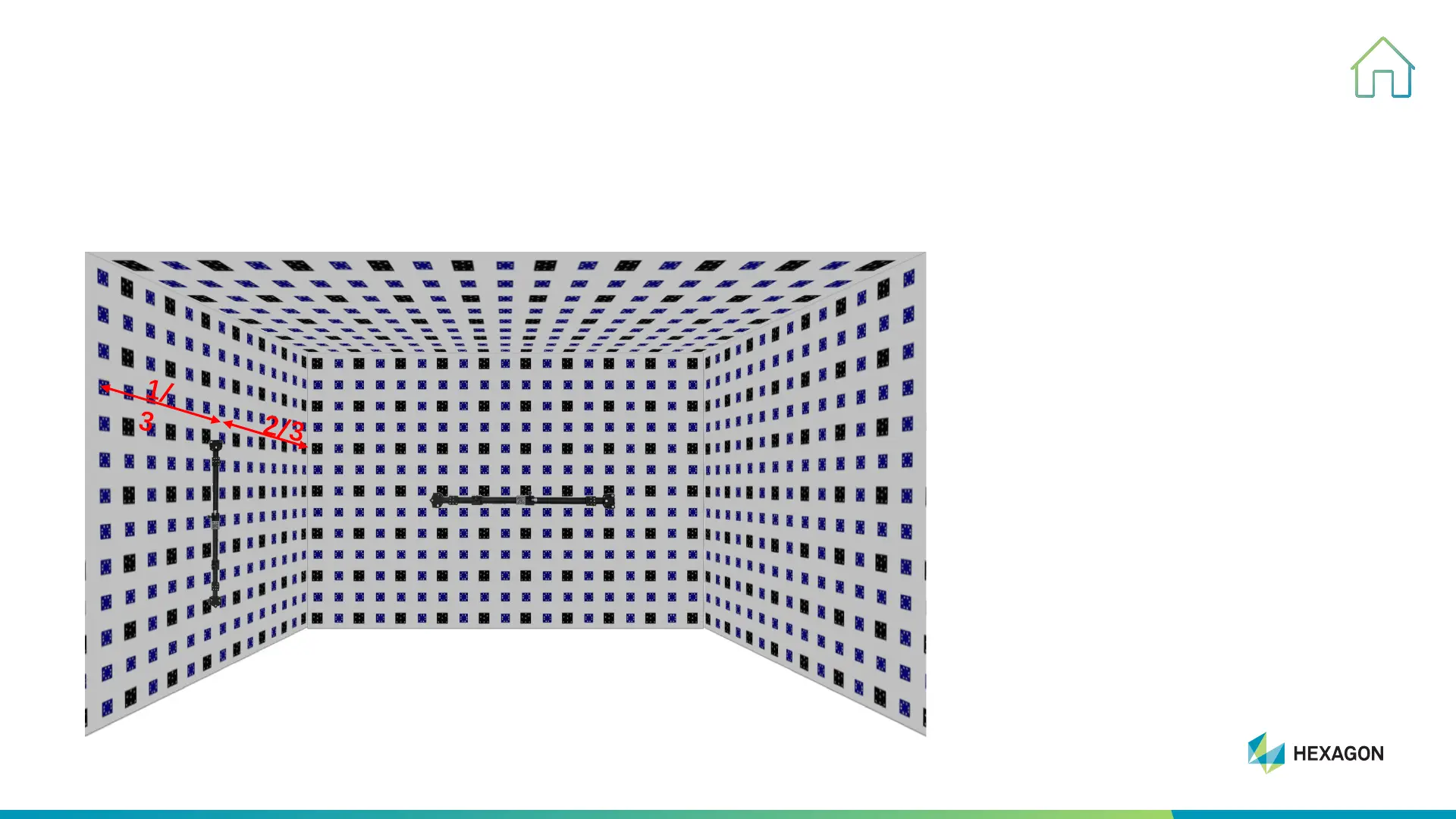

#1, For pre-calibration room, it’s better to place control bar on the center of A target wall and place checking bar on B
target wall as below.
Checking Bar
Control Bar
A
B
C
D
Note:
#1-1, Checking bar should be perpendicular
to Control bar.
#1-2, As shown in the left image, the
checking bar position should be far from
the control bar and close to the B target
wall edge.
